GE PSW26SGRSS, PSW26SGR User Manual

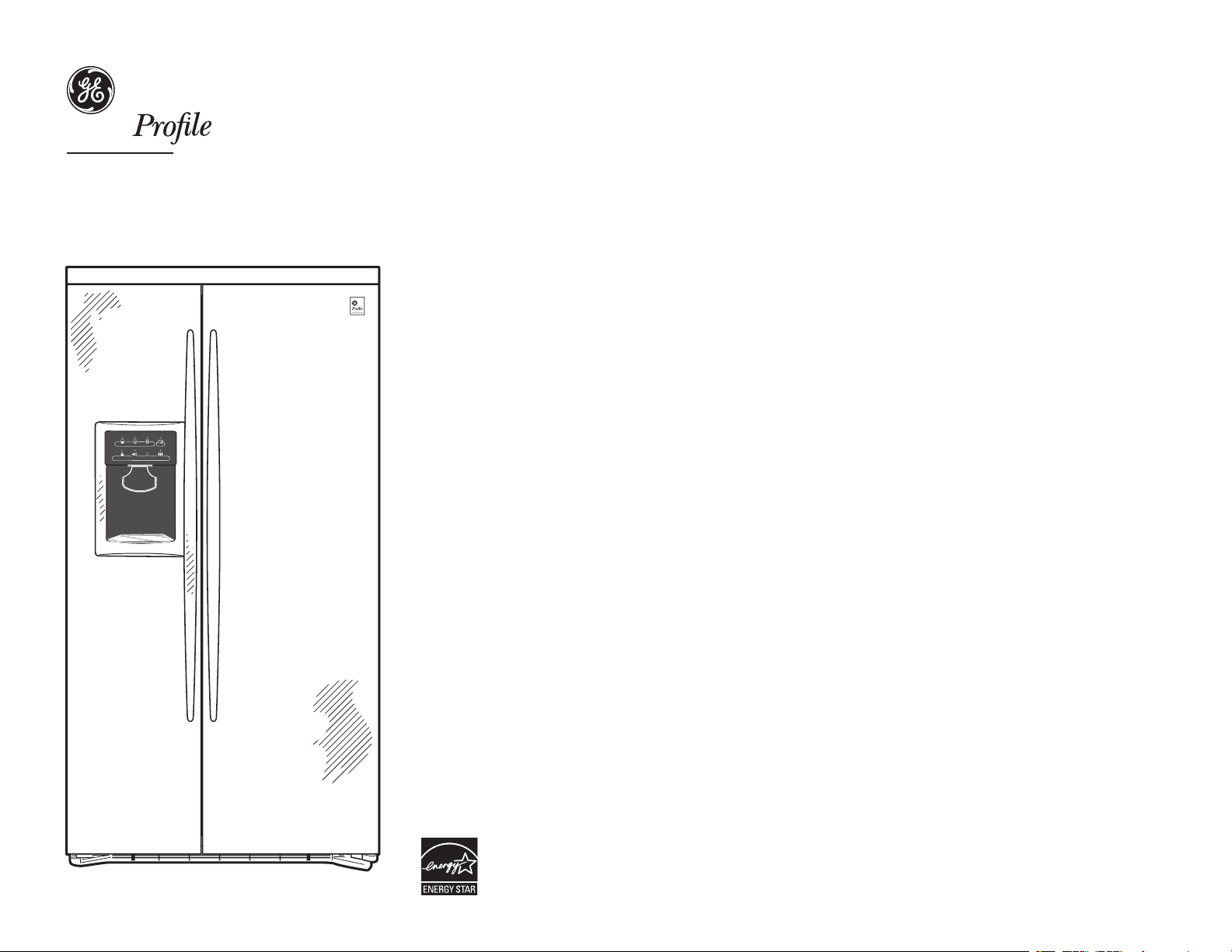

PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator
TM
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
R
R
with Dispenser
Dimensions (in inches)
Specification Revised 7/04
70-1/2*
70-1/2
28-1/2
32-3/4
35-3/16
50-9/16
35-7/8**
36-1/4
1/8
1
1
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G
Width with door open 90° with door handle (in.) H
Each side (in.)
Top (in.)
Air
Back (in.)
Clearances
**When cap is removed: 69-1/4".
**Width including caps is 36-3/16
". † Water hook-up fits in back air clearance when calculating installation depth. If installed against a wall, allow clearance of 14-3/16" on freezer side to remove ice bin. To remove fresh food pans, remove door bins. Clearance required to remove fresh food full-size pan without disassembling: 18-15/16
".
Plus, allow additional space for any necessary leveling adjustments.
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters Laboratories
For answers to your Monogram,® GE Profile™ or
®
appliance questions, visit our website at
GE GEAppliances.com or call GE Answer Center
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR for energy efficiency.
guidelines
®
service, 800.626.2000.
PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator
TM
Water Line Coupler
1.
Hinge Screws
Wire Harness
Toekick Screw
4.
3.
2.
R
R
with Dispenser
To Remove Top Cap and Doors on PSW26SGR
Step 1: Locate and remove two Phillips head screws on the top of
the refrigerator. Remove two screws, one on each side at the rear of the top cap. Lift off and remove top cap.
toekick. Pull forward to remove toekick.
pushing
against the collar on the left side. Disconnect
wire harness.
top hinge. Carefully remove hinge while supporting door. Lif t door up and of f bottom hinge. Remove fresh food door in the same manner. Note: Do not remove bottom hinges! Door alignment will be difficult if bottom hinges are removed.
one side. Move refrigerator to the installation location.
the tubing and electrical connector through the bottom hinge. Reinstall top hinges.
original screws in the top and back of the cap.
Step 2: Open both doors. Remove one screw on each side of the
Step 3: On the freezer door, disconnect water line coupler by
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the
Step 5: Place refrigerator onto a hand truck, upright and against
Reinstall Doors, Top Cap
Step 6: Carefully lower doors onto bottom hinges. Be sure to route
Step 7: Place cap over the top of the refrigerator. Reinstall the
Step 8: Reconnect the wiring harness and waterline.
Specification Revised 7/04
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters Laboratories
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR for energy efficiency.
For answers to your Monogram,® GE Profile™ or
®
appliance questions, visit our website at
GE GEAppliances.com or call GE Answer Center
guidelines
®
service, 800.626.2000.
