GE PSW26MST Specification

PSW26MST

"94 SxS Refer

Top View

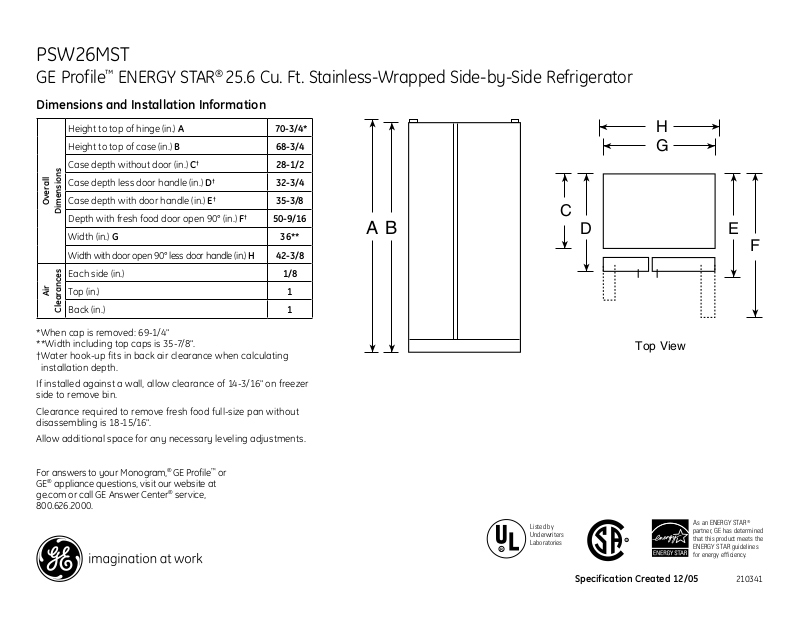

GE Profile™ ENERGY STAR® 25.6 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator

Dimensions and Installation Information

Height to top of hinge (in.) A 70-3/4*

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C

Case depth less door handle (in.) D

Case depth with door handle (in.) E

Overall

Dimensions

Depth with fresh food door open 90° (in.) F

†

28-1/2

32-3/4

35-3/8

50-9/16

Width (in.) G

Width with door open 90° less door handle (in.) H 42-3/8

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

*When cap is removed: 69-1/4" **Width including top caps is 35-7/8". † Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin.

Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".

Allow additional space for any necessary leveling adjustments.

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

36**

1/8

Listed by Underwriters Laboratories

As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Specification Created 12/05

210341

PSW26MST

Water Line Coupler

Hinge Screws

Wire Harness

Toekick Screw

GE Profile™ ENERGY STAR® 25.6 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator

To Remove Top Caps and Doors on PSW26MST

Step 1: the refrigerator. Remove two screws, one on each side at the rear of the top cap. Lift off and remove top cap.

Step 2: Open both doors. Remove one screw on each side of the toekick. Pull forward to remove toekick.

Step 3: On the freezer door, disconnect water line coupler by pushing against the collar on the left side. Disconnect wire harness.

Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the top hinge. Carefully remove hinge while supporting door. Lift door up and off bottom hinge. Remove fresh food door in the same manner. Note: Do not remove bottom hinges! Door alignment will be difficult if bottom hinges are removed.

Step 5: Place refrigerator onto a hand truck, upright and against one side. Move refrigerator to the installation location.

Step 6: Carefully lower doors onto bottom hinges. Be sure to route the tubing and electrical connector through the bottom hinge. Reinstall top hinges.

Step 7: Place cap over the top of the refrigerator. Reinstall the original screws in the top and back of the cap.

Step 8: Reconnect the wiring harness and waterline.
