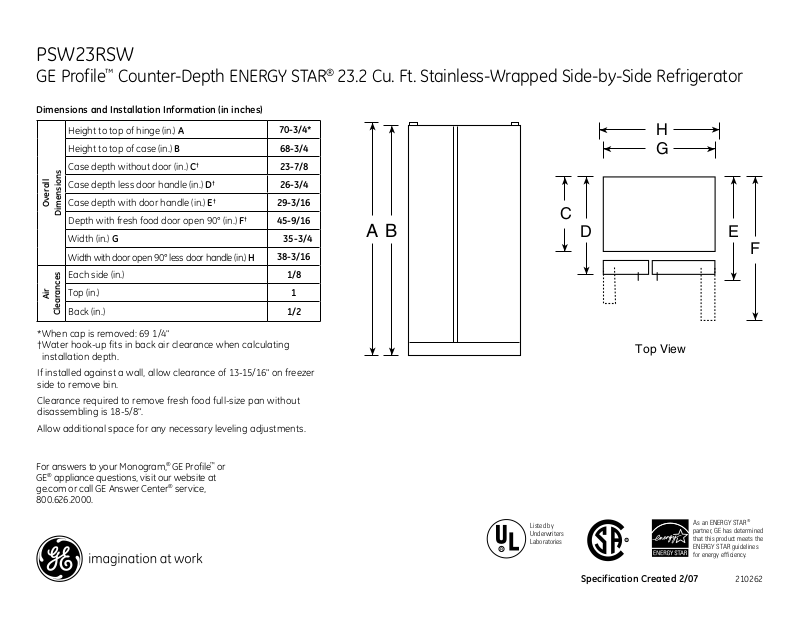

PSW23RSW

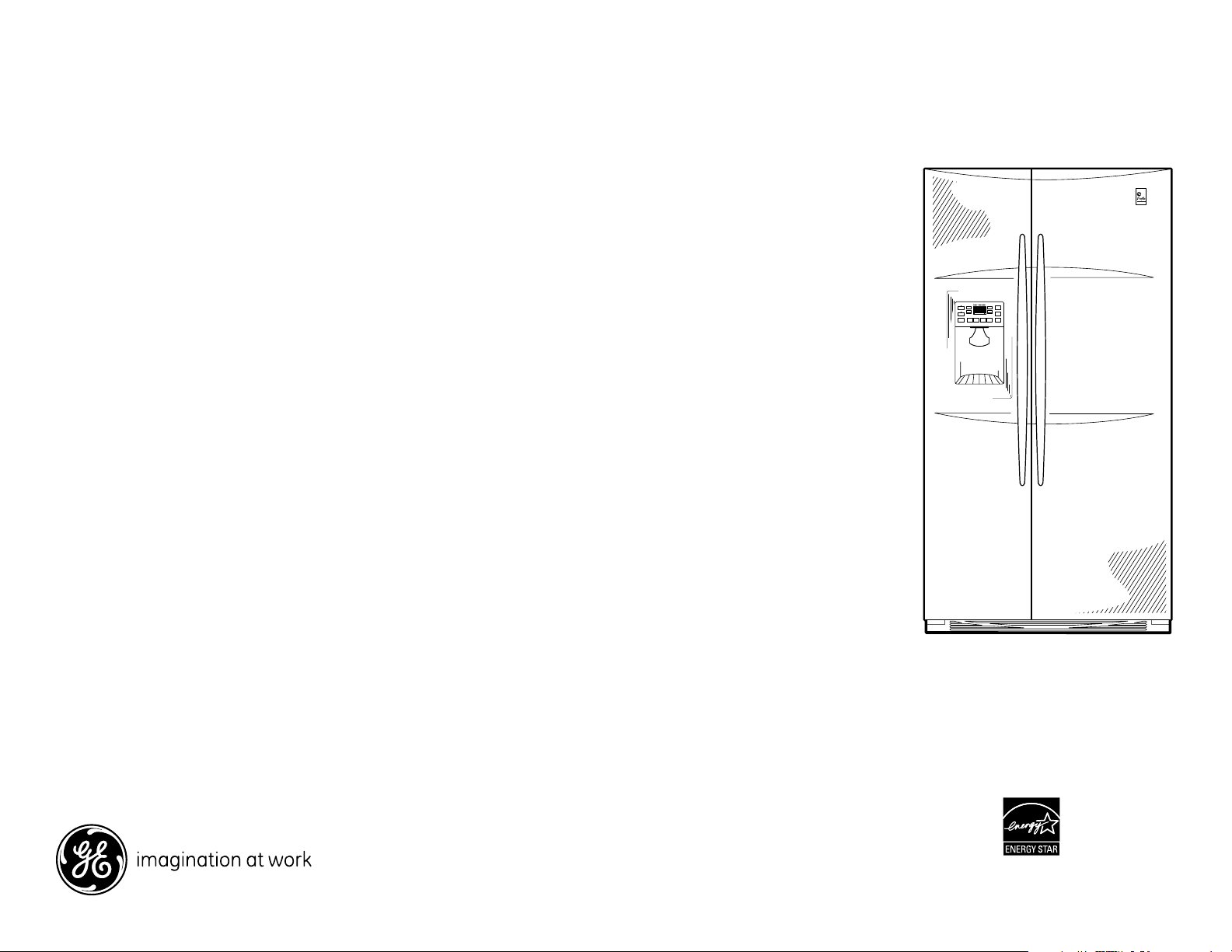

GE Profile™ Counter-Depth ENERGY STAR® 23.2 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator
Dimensions and Installation Information (in inches)
|
Height to top of hinge (in.) A |
70-3/4* |
|
|
|
|
|
|
Height to top of case (in.) B |
68-3/4 |
|
|
|
|
|
<![if ! IE]> <![endif]>Overall Dimensions |
Case depth without door (in.) C† |
23-7/8 |
|
Case depth less door handle (in.) D† |
26-3/4 |
||
Case depth with door handle (in.) E† |
29-3/16 |
||
Depth with fresh food door open 90° (in.) F† |
45-9/16 |
||
|
|||
|
Width (in.) G |
35-3/4 |
|
|
|
|
|
|
Width with door open 90° less door handle (in.) H |
38-3/16 |
|
|
|
|
|
<![if ! IE]> <![endif]>Air Clearances |
Each side (in.) |
1/8 |
|
|
|
||
Top (in.) |
1 |
||
|
|
||
Back (in.) |
1/2 |
||
|
|
|
*When cap is removed: 69 1/4"
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 13-15/16" on freezer side to remove bin.
Clearance required to remove fresh food full-size pan without disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
A B
H
G
C
D |
E |
F
Top View
Listed by |
|
|
|
As an Energy Star® |
|
|
|
partner, GE has determined |
|
Underwriters |
|
|
|
|
|
|
|
that this product meets the |
|
Laboratories |
|
|
|
|
|
|
|
Energy Star guidelines |
|
|
|
|
|
|
|
|
|
|
for energy efficiency. |
Specification Created 2/07 |
210262 |
PSW23RSW
GE Profile™ Counter-Depth ENERGY STAR® 23.2 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator
To Remove Top Caps and Doors on PSW23RSW |
1. |
Step 1: the refrigerator. Remove two screws, one on each side at the rear of the top cap. Lift off and remove top cap.
Step 2: Open both doors. Remove one screw on each side of the toekick. Pull forward to remove toekick.
Step 3: On the freezer door, disconnect water line coupler by pushing against the collar on the left side. Disconnect wire harness.
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the top hinge. Carefully remove hinge while supporting door. Lift door up and off bottom hinge. Remove fresh food door in the same manner. Note: Do not remove bottom hinges! Door alignment will be difficult if bottom hinges are removed.
Step 5: Place refrigerator onto a hand truck, upright and against one side. Move refrigerator to the installation location.
Step 6: Carefully lower doors onto bottom hinges. Be sure to route the tubing and electrical connector through the bottom hinge. Reinstall top hinges.
Step 7: Place cap over the top of the refrigerator. Reinstall the original screws in the top and back of the cap.
Step 8: Reconnect the wiring harness and waterline.
Hinge Screws
4.
3.
Wire Harness Water Line Coupler
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
Listed by
Underwriters
Laboratories
2.
toekick Screw
As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines for energy efficiency.
