GE PSW23PST Specification

PSW23PST

GE Profile CustomStyle™ ENERGY STAR® 23.2 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator with Integrated Dispenser

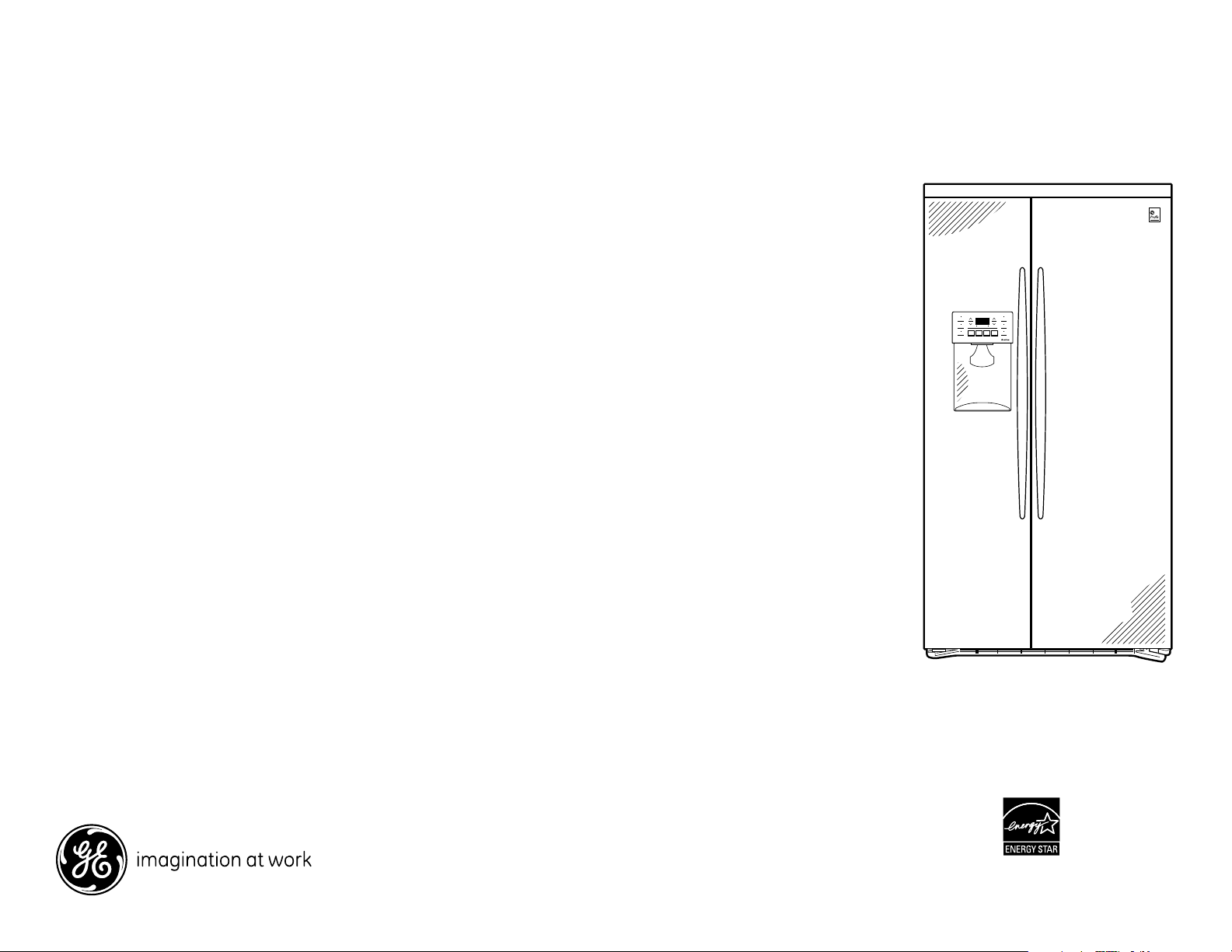

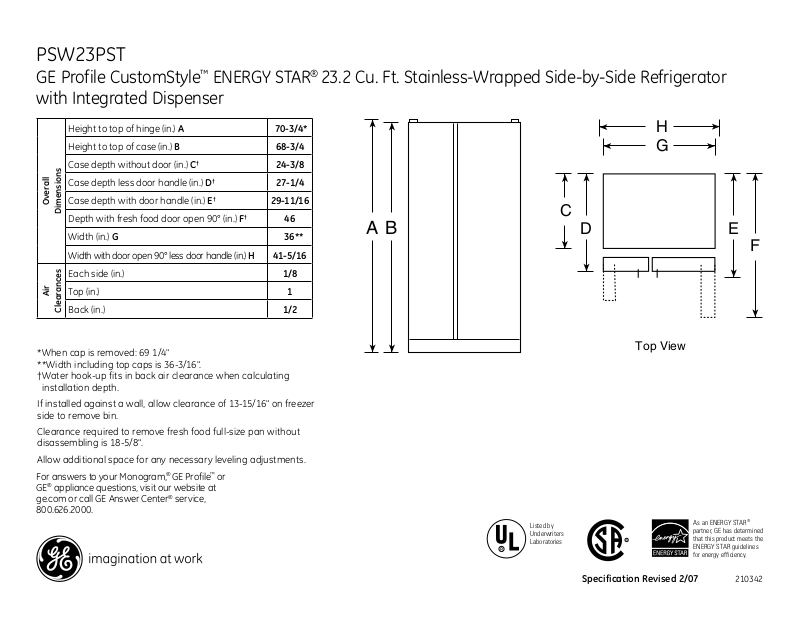

	Dimensions and Installation Information		70-3/4*
		Height to top of hinge (in.) A
		Height to top of case (in.) B	68-3/4
	<![if ! IE]> <![endif]>Overall Dimensions	Case depth without door (in.) C†	24-3/8
		Case depth less door handle (in.) D†	27-1/4
		Case depth with door handle (in.) E†	29-11/16
		Depth with fresh food door open 90° (in.) F†	46
		Width (in.) G	36**
		Width with door open 90° less door handle (in.) H	41-5/16
	<![if ! IE]> <![endif]>Air Clearances	Each side (in.)	1/8
		Back (in.)	1/2
		Top (in.)	1

*When cap is removed: 69 1/4" **Width including top caps is 36-3/16".

†Water hook-up fits in back air clearance when calculating installation depth.

If installed against a wall, allow clearance of 13-15/16" on freezer side to remove bin.

Clearance required to remove fresh food full-size pan without disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.

A B

H

G

C

D

E

F

Top View

Listed by				As an Energy Star®
				partner, GE has determined
Underwriters
				that this product meets the
Laboratories
				Energy Star guidelines
				for energy efficiency.

Specification Revised 2/07

210342

PSW23PST

GE Profile CustomStyle™ ENERGY STAR® 23.2 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator with Integrated Dispenser

To Remove Top Caps and Doors on PSW23PST

1.

Step 1: the refrigerator. Remove two screws, one on each side at the rear of the top cap. Lift off and remove top cap.

Step 2: Open both doors. Remove one screw on each side of the toekick. Pull forward to remove toekick.

Step 3: On the freezer door, disconnect water line coupler by pushing against the collar on the left side. Disconnect wire harness.

Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the top hinge. Carefully remove hinge while supporting door. Lift door up and off bottom hinge. Remove fresh food door in the same manner. Note: Do not remove bottom hinges! Door alignment will be difficult if bottom hinges are removed.

Step 5: Place refrigerator onto a hand truck, upright and against one side. Move refrigerator to the installation location.

Step 6: Carefully lower doors onto bottom hinges. Be sure to route the tubing and electrical connector through the bottom hinge. Reinstall top hinges.

Step 7: Place cap over the top of the refrigerator. Reinstall the original screws in the top and back of the cap.

Step 8: Reconnect the wiring harness and waterline.

Hinge Screws

4.

3.

Wire Harness Water Line Coupler

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.

Listed by

Underwriters

Laboratories

2.

toekick Screw

As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines for energy efficiency.

Specification Revised 2/07

210342
