Page 1
PSW23PSR – GE Profile Arctica CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless-Wrapped
TM
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
R
R
Side-By-Side Refrigerator with Dispenser

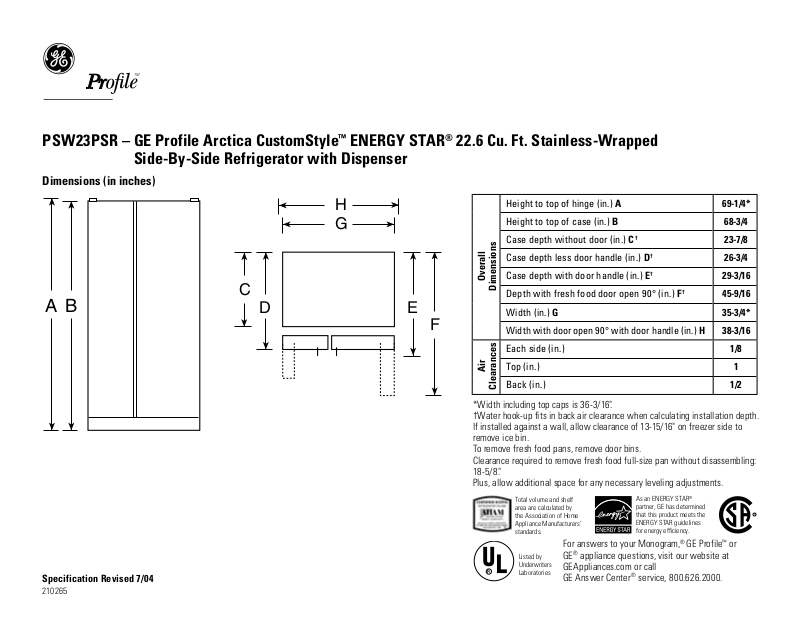

Dimensions (in inches)
Specification Revised 7/04
210265
69-1/4*
68-3/4
23-7/8
26-3/4
29-3/16
45-9/16
35-3/4*
38-3/16
1/8
1
1/2
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G
Width with door open 90° with door handle (in.) H
Each side (in.)
Top (in.)
Air
Back (in.)
Clearances
*Width including top caps is 36-3/16".
†
†
†
†
† Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 13-15/16" on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without disassembling:
".
18-5/8
Plus, allow additional space for any necessary leveling adjustments.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
For answers to your Monogram,® GE Profile™ or
®
Listed by
Underwriters
Laboratories
GE
GEAppliances.com or call
GE Answer Center
appliance questions, visit our website at
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
®
service, 800.626.2000.
guidelines
Page 2
PSW23PSR – GE Profile Arctica CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless-Wrapped
TM
Water Line Coupler
1.
Hinge Screws
Wire Harness
Toekick Screw
4.
3.
2.
R
R
Side-By-Side Refrigerator with Dispenser
To Remove Top Cap and Doors on PSW23PSR
Step 1: Locate and remove two Phillips head screws on the top of
the refrigerator. Remove two screws, one on each side at the
rear of the top cap. Lif t off and remove top cap.
Step 2: Open both doors. Remove one screw on each side of the
toekick. Pull forward to remove toekick.
Step 3: On the freezer door, disconnect water line coupler by
pushing
against the collar on the left side. Disconnect
wire harness.
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the
top hinge. Carefully remove hinge while supporting door.
Lif t door up and of f bottom hinge. Remove fresh food door in
the same manner. Note: Do not remove bottom hinges! Door
alignment will be difficult if bottom hinges
are removed.
Step 5: Place refrigerator onto a hand truck, upright and against one
side. Move refrigerator to the installation location.
Reinstall Doors, Top Cap
Step 6: Carefully lower doors onto bot tom hinges. Be sure to route
the tubing and electrical connector through the bottom
hinge. Reinstall top hinges.
Step 7: Place cap over the top of the refrigerator. Reinstall the
original screws in the top and back of the cap.
Step 8: Reconnect the wiring harness and waterline.
Specification Revised 7/04
210265
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
For answers to your Monogram,® GE Profile™ or
®
Listed by
Underwriters
Laboratories
GE
GEAppliances.com or call
GE Answer Center
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
appliance questions, visit our website at
®
service, 800.626.2000.
Page 3
PSW23PSR – GE Profile Arctica CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless-Wrapped
TM
W
A
T
E
R
C
R
U
S
H
E
D
C
U
B
E
D
C
L
O
C
K
S
E
T
L
I
G
H
T
D
O
O
R
A
L
A
R
M
R
E
S
E
T
W
A
T
E
R
F
I
L
T
E
R
H
O
L
D
3
S
E
C
.
L
O
C
K
C
O
N
T
R
O
L
H
O
L
D
3
S
E
C
.
Arctica
Side-By-Side Refrigerator with Dispenser
Features and Benefits
• CustomStyle™ configuration – Offers a built-in look without the built-in expense
•
Full-wrap stainless design – Features stainless steel doors, side panels and top for a truly dramatic look
Specification Revised 7/04
210265
• ClimateKeeper
2™ System – Keeps food fresher longer, while protecting ice from odor transfer, with its
unique dual-evaporator system
• CustomCool
™
Technology With Full Extension Slides – Chills in minutes, thaws in hours and keeps
foods fresher, longer
• Upfront Electronic Digital Display – Clearly displays exact temperatures for the fresh food and
freezer compartments
• Integrated Ice
™
System – Frees up valuable freezer space. It tilts down, providing easy access to cubed ice
• LightTouch! tall dispenser with child lock and door alarm – Delivers chilled water, cubed ice or crushed ice
at the slightest touch
• Full-Width Slide ’N Store Freezer Basket – Offers tremendous storage flexibility and keeps contents
perfectly in place
• Model PSW23PSRSS – Stainless steel
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
