GE PSS26MST Specification
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
R
R

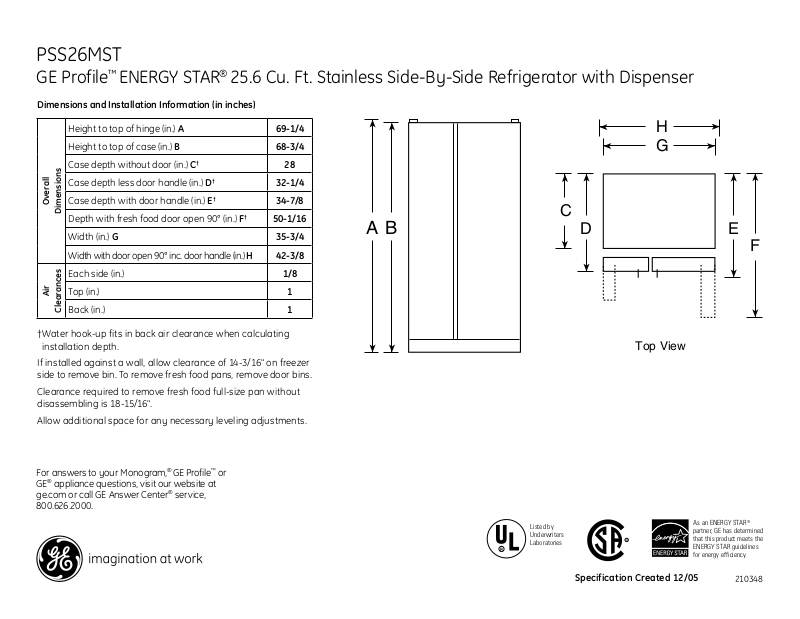

PSS26MST
GE Profile™ ENERGY STAR® 25.6 Cu. Ft. Stainless Side-By-Side Refrigerator with Dispenser
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.) B 68-3/4
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 35-3/4
†
†
†
†
28
32-1/4
34-7/8
50-1/16
Width with door open 90° inc. door handle (in.) H 42-3/8
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin. To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 12/05
210348
PSS26MST
WATER
L
OCK
Hold 3 seconds
CRUSHED
D
OOR
ALARM
CUBED
L
IGHT
Hold 3 seconds to Reset
QUICK ICE
R
SET
FILTER
GE Profile™ ENERGY STAR® 25.6 Cu. Ft. Stainless Side-By-Side Refrigerator with Dispenser
Features and Benefits
• Stainless Steel Exterior - Convey a look of utmost polish and sophistication
• ClimateKeeper™ System - Best Temperature Management System You Can Buy!
• ExpressChill™ with 3 settings - Chills beverages quickly. Select 15, 30 or 45 minute with easy one
button selection
• Electronic controls with actual temperature display - Eliminates guesswork in setting
refrigerator temperatures
• Tall LightTouch! Dispenser with Child Lock - Delivers chilled water, cubed ice or crushed ice at the
slightest touch. A child lockout option keeps the dispenser off limits to little hands
• Slide ‘n Store™ Full-Extension Freezer Baskets - Extends 12” to 16” beyond the cabinet, providing
easy loading and unloading
• Quick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool™ Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings
• Integrated Ice™ System - Frees up valuable freezer space. It tilts down, providing easy access to
bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Model PSS26MSTSS - Stainless steel
Specification Created 12/05
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
210348
