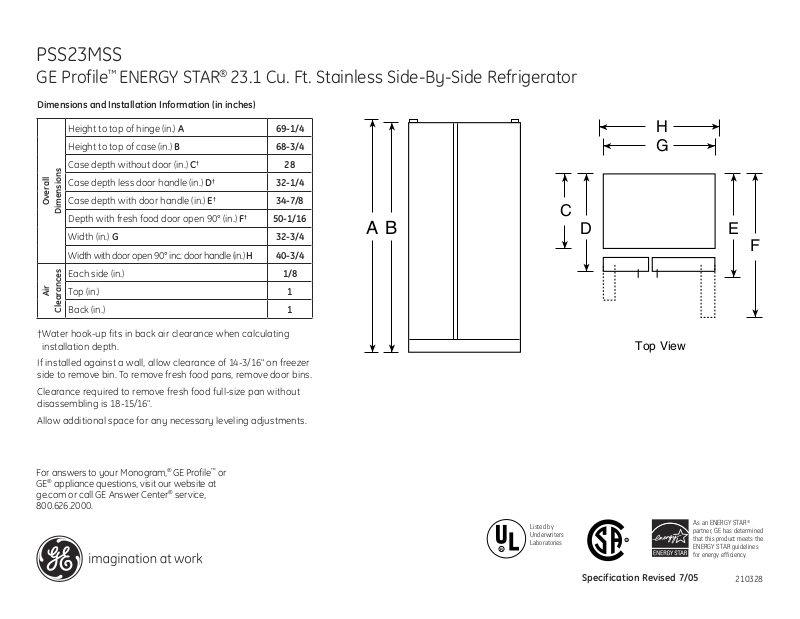

GE PSS23MSS Specification
PSS23MSS
GE Profile™ ENERGY STAR® 23.1 Cu. Ft. Stainless Side-By-Side Refrigerator
Dimensions and Installation Information (in inches)
|
Height to top of hinge (in.) A |
69-1/4 |
|
|
|
|
|
|
Height to top of case (in.) B |
68-3/4 |
|
|
|
|
|
| <![if ! IE]> <![endif]>Overall Dimensions |
Case depth without door (in.) C† |
28 |
|
Case depth less door handle (in.) D† |
32-1/4 |
||
Case depth with door handle (in.) E† |
34-7/8 |
||
Depth with fresh food door open 90° (in.) F† |
50-1/16 |
||
|
|||
|
Width (in.) G |
32-3/4 |
|
|
|
|
|
|
Widthwithdooropen90°inc.doorhandle(in.)H |
40-3/4 |
|
|
|
|
|
| <![if ! IE]> <![endif]>Air Clearances |
Each side (in.) |
1/8 |
|
|
|
||
Top (in.) |
1 |
||
|
|
||
Back (in.) |
1 |
||
|
|
|
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin. To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
A B
H
G
C
D E
F
Top View
|
Listed by |
|
As an ENERGY STAR® |
|
|
partner, GE has determined |
|
|
Underwriters |
|
|
|
|
that this product meets the |
|
|
Laboratories |
R |
|
R |
|
|
ENERGY STAR guidelines |
|
|
|
for energy efficiency. |
Specification Revised 7/05 |
210328 |
PSS23MSS
GE Profile™ ENERGY STAR® 23.1 Cu. Ft. Stainless Side-By-Side Refrigerator
Features and Benefits
• Stainless Steel - Convey a look of utmost polish and sophistication
• ClimateKeeper™ system - Best Temperature Management System You Can Buy!
•Upfront, Electronic Touch Temperature Controls - Extremely precise and easy to use
•Integrated Ice™ System - Frees up valuable freezer space. It tilts down, providing easy access to bulk ice
• Tall LightTouch! Dispenser - Delivers chilled water cubed ice or crushed ice at the slightest touch
• Integrated Shelf Support System - Provides strong, yet flexible support
• FrostGuard™ Technology - Protects frozen items from freezer burn by monitoring door openings and defrosting only when needed
•Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put
•QuickIce™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
•TurboCool™ Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings
•GE SmartWater™ Plus Filtration System - Delivers clean, great-tasting water and ice through the LightTouch! Dispenser with indicator light
•In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility and to free up valuable shelf space
•ClearLook™ Adjustable Gallon Door Bin - Store gallon containers with ease
•Model PSS23MSSSS - Stainless steel
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR guidelines
for energy efficiency.
Specification Revised 7/05 |
210328 |
