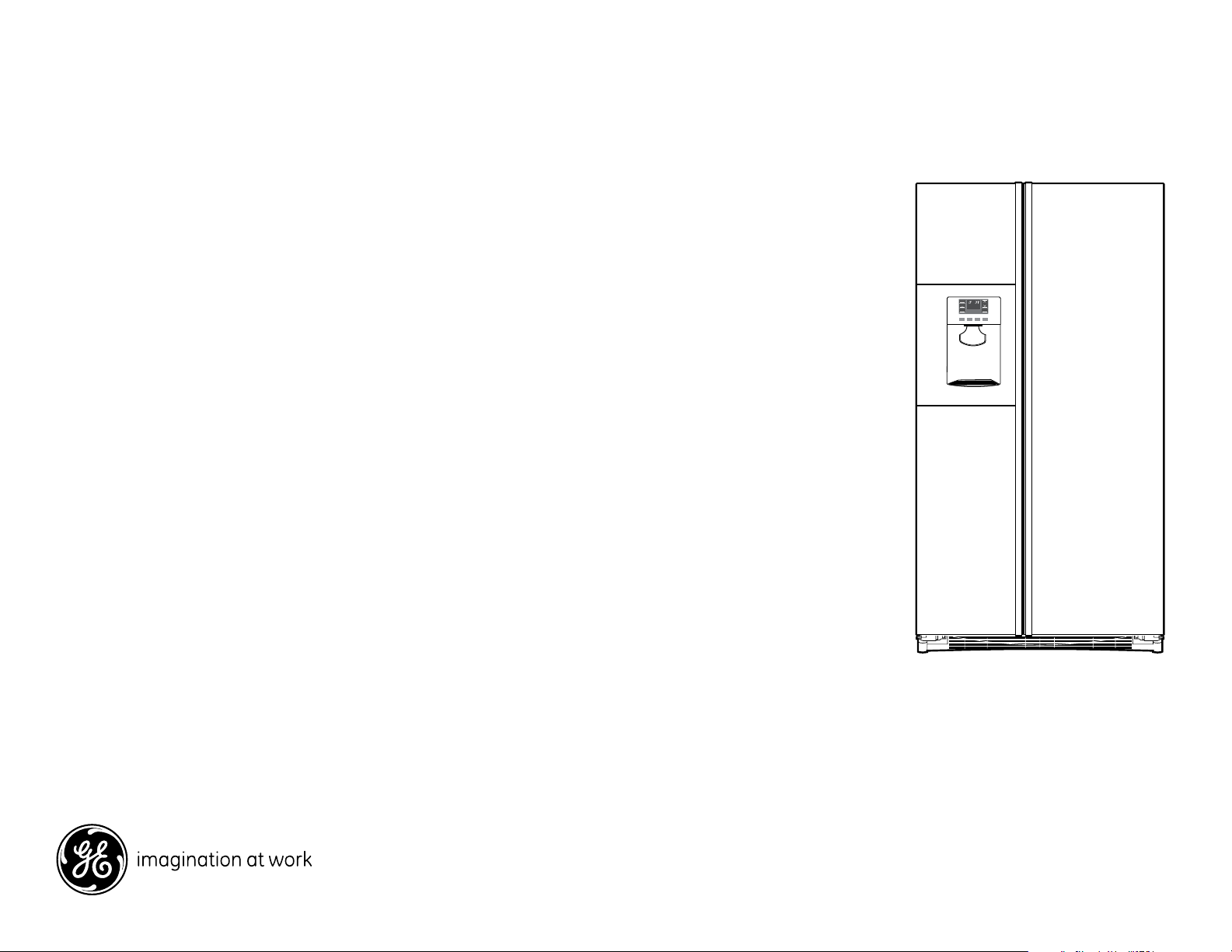

Front View

Top View

PSIC3RGX

GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator

Dimensions and Installation Information (in inches)

Height to top of hinge (in.) A 70-3/8*

Height to top of case (in.) B

Case depth without door (in.) C

Case depth less door handle (in.) D

Case depth with door handle (in.) E

Overall

Dimensions

Depth with fresh food door open 90° (in.) F

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 41-3/8

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

* Height to top of door trim (in.): 70-1/4

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on freezer side to remove bin.

Clearance required to remove fresh food full-size pan without disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

†

68-3/4

23-7/8

27-1/8

29-5/8

1/8

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

Listed by Underwriters Laboratories

Specification Revised 5/08

210225

8' Ceiling

13" to 14" Cabinet

12" Soffit

36-1/8"

24-1/2"

70"*† 23 cu. ft. models

72-1/2"* 25 cu. ft. models

25" Counter Top

Electrical Water

3/4" Airspace (1/2" Gap + 1/4" Wall Plates)

24" Cabinet

25" Counter Top

Electrical Water

Trim

3/4" Airspace (1/2" Gap + 1/4" Wall Plates)

24" Cabinet

FOR 21 CUBIC FOOT MODELS

PSIC3RGX

GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator

Rough-In Dimensions and Installation Information (in inches)

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water line damage. 48" minimum length, 1/4" diameter water line tubing recommended.

• When possible, recess both copper water line and electrical outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look. (See owner’s manual)

• If optional collar trim kit is to be used or anticipated, see collar trim installation for different rough-in dimensions

* The rough-in dimensions of 70" for 23 cu. ft. models and 72-

1/2" for 25 cu. ft. models are minimum and measured from the finished floor to top of opening (or the underside of the overhead cabinets). For Models with Trim Kit: If frameless style cabinets are planned for above the refrigerator, you may need to consider adding a maximum of 1/4" (70-1/4") to height of opening for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for additional clearance between the cabinet doors and the top of refrigerator trim when the cabinet doors are in open position.

† Model PSDW3YGX is 71-3/4"

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

Listed by Underwriters Laboratories

Specification Revised 5/08

210225
