Page 1
PSI23NGP – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
TM

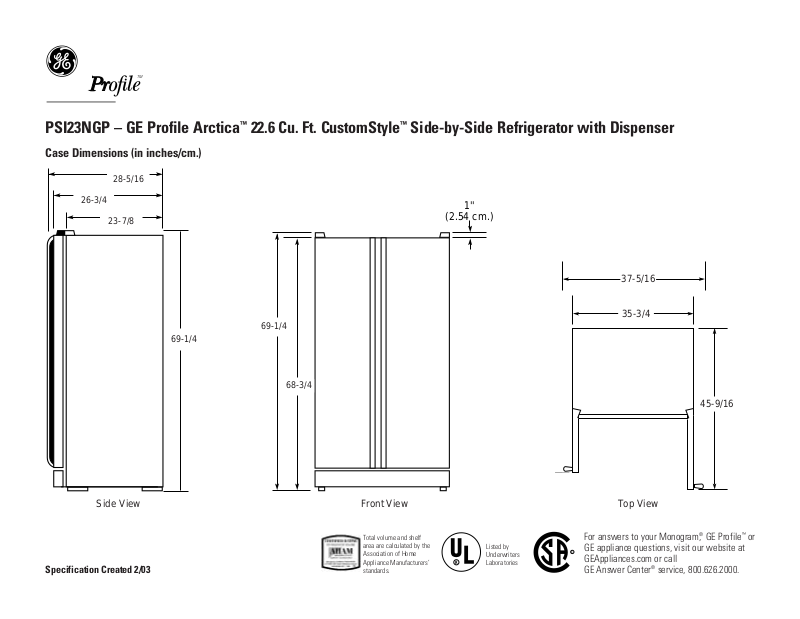

Case Dimensions (in inches/cm.)
1''
(2.54 cm.)
A
B
C
F
D
E
Side View Front View
69-1/4
68-3/4
26-3/4
23-7/8
69-1/4
I
G
J
Top View
45-9/16
37-5/16
Specification Created 2/03
R
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
35-3/4
28-5/16
Page 2
PSI23NGP – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Standard, New Construction
and Replacement Installation
Installation Tips to
Maximize the Built-In Look
• All wall/floor molding should
be removed prior to installation.
• Water recess on rear wall
recommended to prevent water
line damage. 48" minimum length,
1/4" diameter water line tubing
recommended.
• When possible, recess both copper
water line and electrical outlet.
(See local codes)
• Front and rear leveling legs are
adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to be
used or anticipated, see collar trim
installation on next page for
different rough-in dimensions.
Rough-In Dimensions
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Specification Created 2/03
R
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
TM
Page 3
PSI23NGP – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
An enclosure is required to match up to the trim, see Typical
Installation. To obtain the most integrated look, the cabinet or soffit
above the refrigerator should extend out to the same depth as the
side panels. The refrigerator opening must have minimum dimensions
of 70-1/4" high x 36-1/8" wide x 24-1/2" deep as shown at right. If
there is an overhead cabinet, allow 1" for cabinet door clearance
with the top trim piece so the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels are used, then side trim and
panel will be even. If 3/4" side panels are used, then some of the
side panel will extend beyond the trim and must be finished.

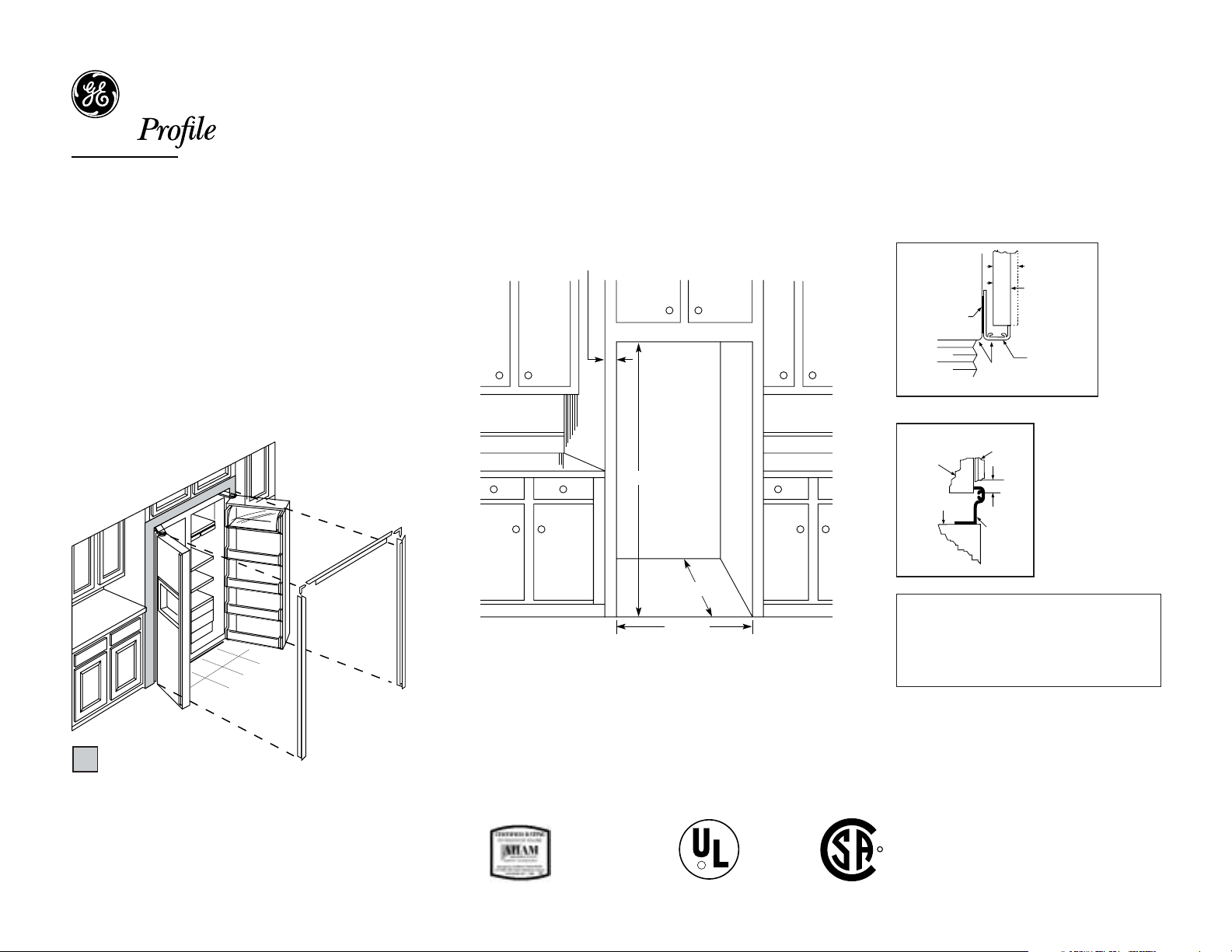

Collar Trim Installation
Typical Installation
Shaded areas represent front surfaces of
side panels and overhead cabinet or soffit that contacts trim.
Overhead
Cabinet
Cabinet
Door
Top Trim
Case
1"
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Side trim must be installed
flush with the gasket contact
surface on the case.
Refrigerator
Case
Side TrimDoor Gasket
IMPORTANT: Before finalizing specifications for your
GE Profile CustomStyle Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator
installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in
addition to the 36-1/8" minimum
70-1/4"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Specification Created 2/03
R
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
TM
Page 4
PSI23NGP – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Order your own custom wood panels to match cabinetry or other decor.
Panels up to 1/4" thick will fit door frame with no special preparation.
Add filler behind material thinner than 1/4" for proper fit.
Weight Limits: Total weight of panels (i.e., both freezer panels)—
Fresh Food = 38 lbs., Freezer = 28 lbs.
Note: Panels up to 3/4" will require special routing area around handles.
Dimensions may vary depending on depth of panel.
(Fresh Food panel shown)
Notch required at top
corner as noted.

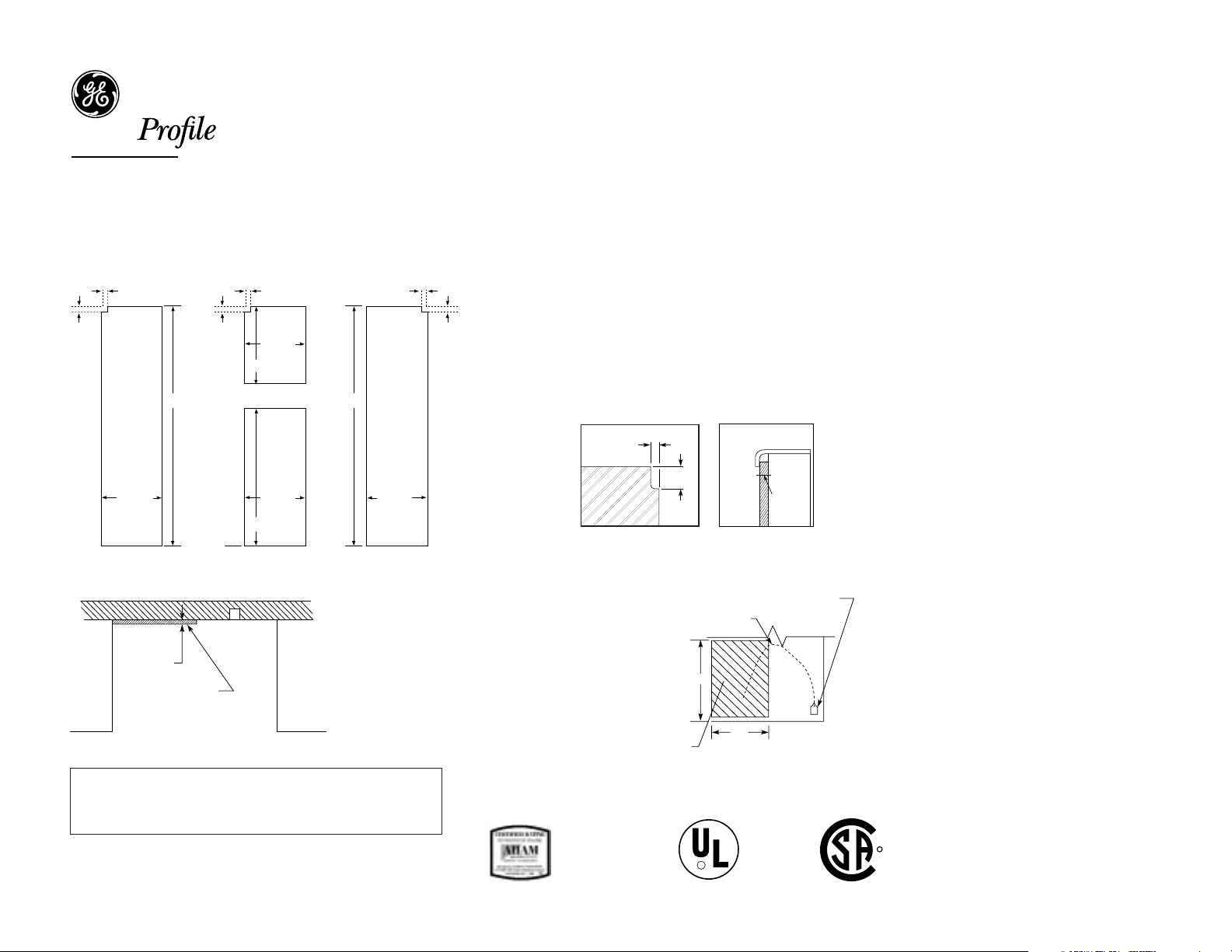

Door Panel Dimensions
IMPORTANT: Before finalizing specifications for your GE Profile CustomStyle
Refrigerator, please NOTE:
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
Cut
out
1/8 1/8
14-15/32 14-15/32
14-15/32
33-5/8
17-7/8
19-15/32
5/16
Cut
out
Cut
out
1/8
5/16 5/16
FRONT
67-9/32 67-9/32
FRONT FRONT
Detail C
5/16"
1/8"
1/4" Max.
Panels 1/4" thick
or less
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
Installation of Water Outlets
Alternate
water
line location
through floor
1/2"
Top View
Freezer Panel
without Dispenser
Freezer Panel
with Dispenser
Fresh Food
Panel
Specification Created 2/03
TM
R
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Page 5
PSI23NGP – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
W
A
T
E
R
C
R
U
S
H
E
D
C
U
B
E
D
R
E
S
E
T
W
A
T
E
R
F
IL
T
E
R
H
O
L
D
3
S
E
C
S
Q
U
IC
K
IC
E
L
I
G
H
T
D
O
O
R
A
L
A
R
M
L
O
C
K
C
O
N
T
R
O
L
H
O
L
D
3
S
E
C
S

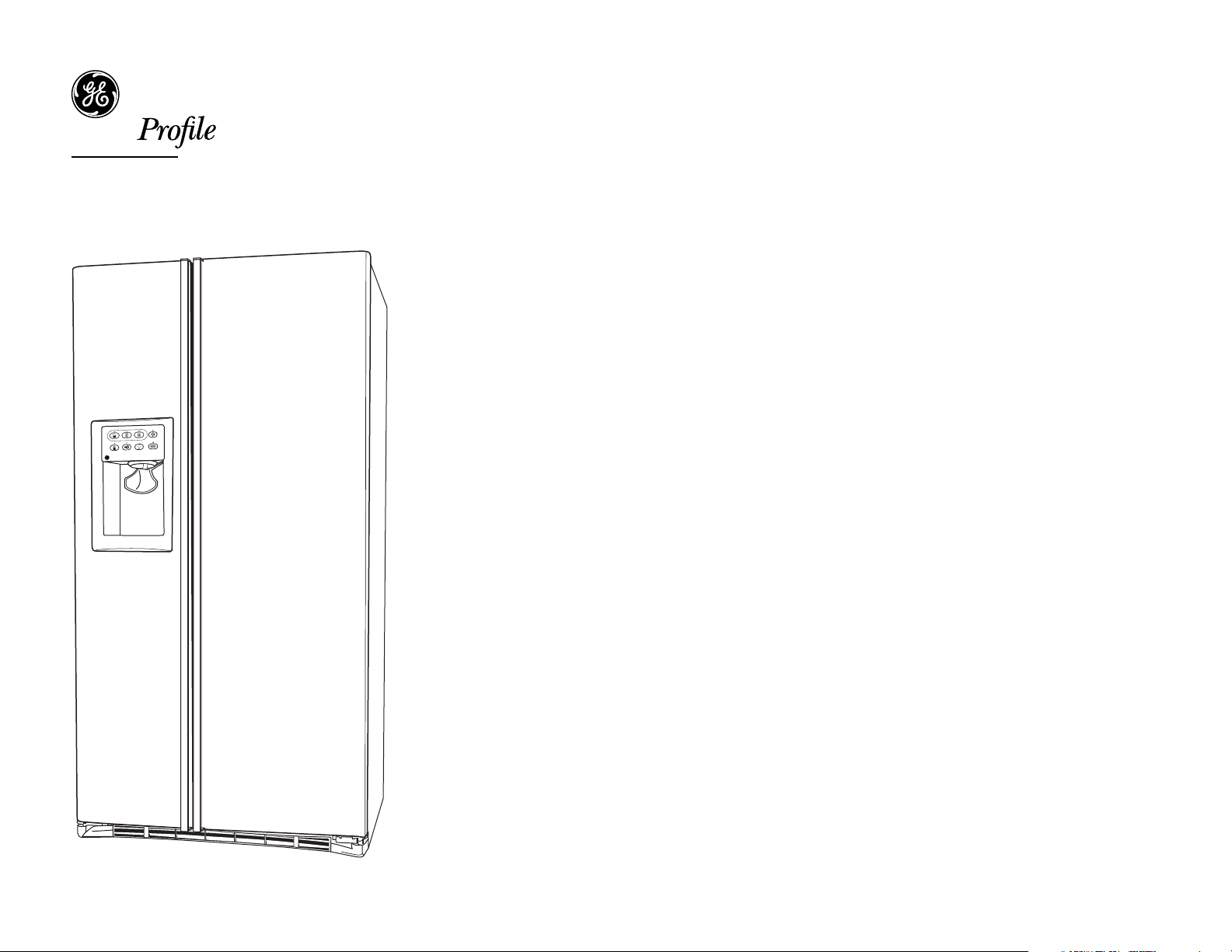

Features and Benefits
• CustomStyle™Configuration – CustomStyle™design – offers a built-in look without the
built-in expense.
• CustomCool™Technology with Full Extension Slides – Chills in minutes, thaws in hours and
keeps foods fresher, longer.
• ClimateKeeper™Temperature Management System – Best temperature management system
you can buy!
• Upfront Electronic Digital Display – Clearly displays exact temperatures for the fresh food and
freezer compartments.
• Integrated Ice™System – Frees up valuable freezer space. It tilts down, providing easy access
to bulk ice.
• In-the-Door Beverage Rack – Conveniently located to increase flexibility and free up valuable
shelf space.
• Tall LightTouch! Dispenser – Provides chilled water, cubed ice or crushed ice at the
slightest touch.
• Model PSI23NGPWW – White on white
• Model PSI23NGPCC – Bisque on bisque
• Model PSI23NGPBB – Black on black
Specification Created 2/03
