Page 1
R
R
"94 SxS Refer
A
Front View
Top View
G
D
C
F
B
E
H
PSI23NCR

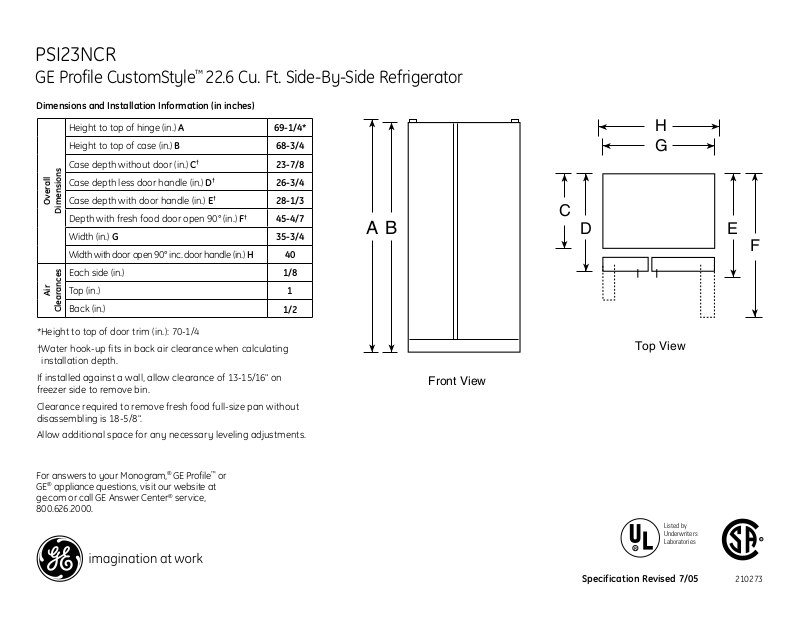

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-1/4*
Height to top of case (in.) B 68-3/4
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 40
†
†
†
†
23-7/8
26-3/4
28-1/3
45-4/7
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
* Height to top of door trim (in.): 70-1/4
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on
freezer side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1/2
Listed by
Underwriters
Laboratories
Specification Revised 7/05
210273
Page 2
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
R
R
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
PSI23NCR
GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator
Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to be used or anticipated, see collar
trim installation for different rough-in dimensions
**The rough-in dimensions of 70-1/4"/72-1/4" are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening for 23 cu. ft. models and 1/8" (72-3/8") for
25 cu. ft. models to allow for additional clearance between the
cabinet doors and the top of refrigerator trim when the cabinet
doors are in open position.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 7/05
210273
Page 3
R
R
70-1/4"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Side trim must be installed
flush with the gasket contact
surface on the case.
Refrigerator
Case
Side TrimDoor Gasket
Overhead
Cabinet
Cabinet
Door
Top Trim
Case
1"
PSI23NCR
GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator
Rough-In Dimensions and Installation Information (in inches)

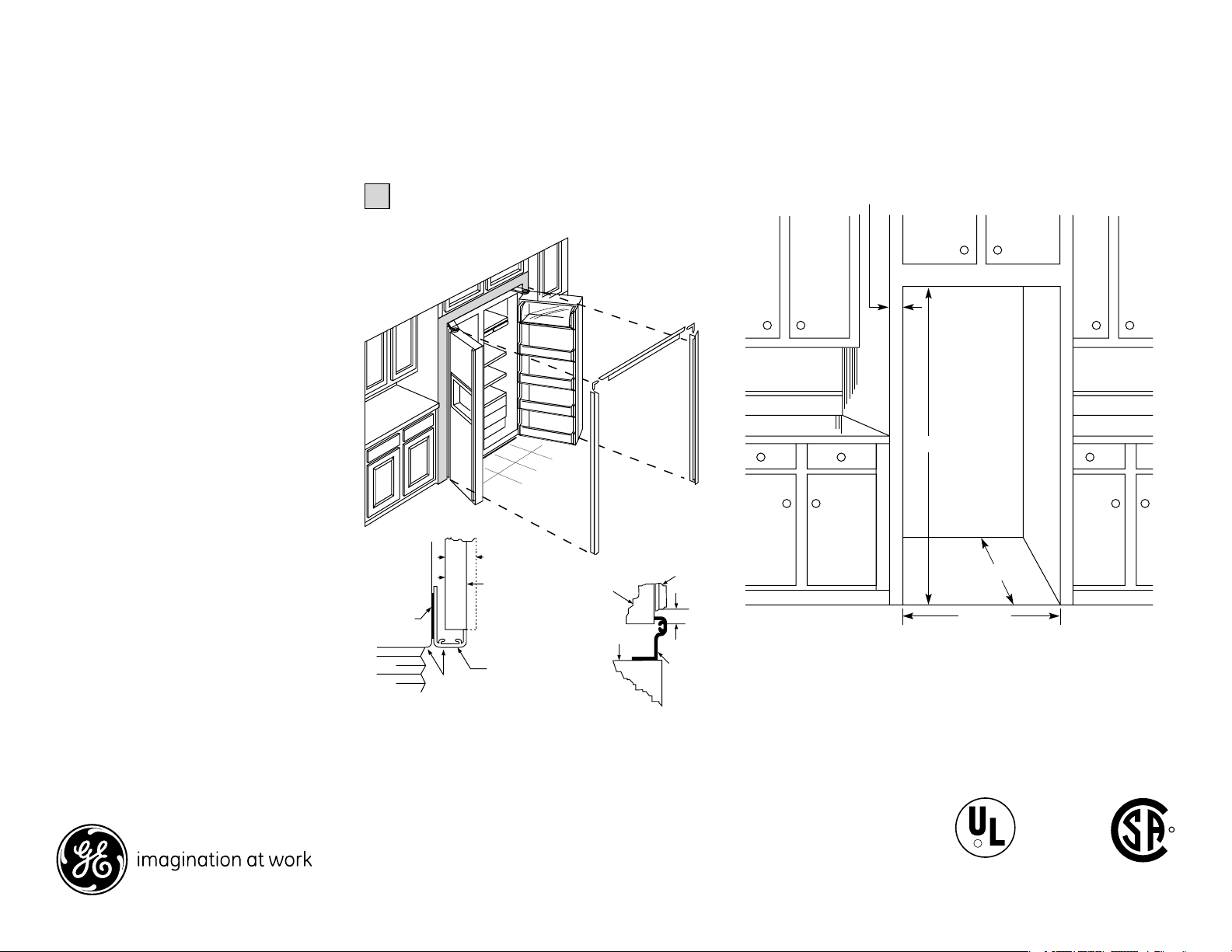

Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the
most integrated look, the cabinet or soffit
above the refrigerator should extend out
to the same depth as the side panels. The
refrigerator opening must have minimum
dimensions of 70-1/4" high x 36-1/8" wide
x 24-1/2" deep as shown at right. If there is
an overhead cabinet, allow 1" for cabinet
door clearance with the top trim piece so
the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels are
used, then side trim and panel will be even.
If 3/4" side panels are used, then some of
the side panel will extend beyond the trim
and must be finished.
IMPORTANT: Before finalizing specifications
for your GE Profile CustomStyle Refrigerator,
please NOTE:
• A minimum of 36-1/8" is required for
refrigerator installation with collar
• Be sure to allow for 1/2" or 3/4" side
panels in addition to the 36-1/8"
minimum.
Typical Installation
Shaded areas represent front surfaces of side panels and
overhead cabinet or soffit that contacts trim.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 7/05
210273
Page 4
R
R
Freezer Panel
Without Dispenser
Freezer Panel
With Dispenser
Fresh Food
Pane
l
Cut
out
1/8 1/8
14-15/32
14-15/32
14-15/32
33-5/8
17-7/8
19-15/32
5/16
Cut
out
Cut
out
1/8
5/16 5/16
FRONT
67-9/32
67-9/32
FRONT FRONT
Alternate
water
line location
through floor
1/2"
Top View
Alternate
water
line location
through floor
1/2"
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
Top View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
5/16"
1/8"
1/4" Max.
Panels 1/4" thick
or less
PSI23NCR
GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

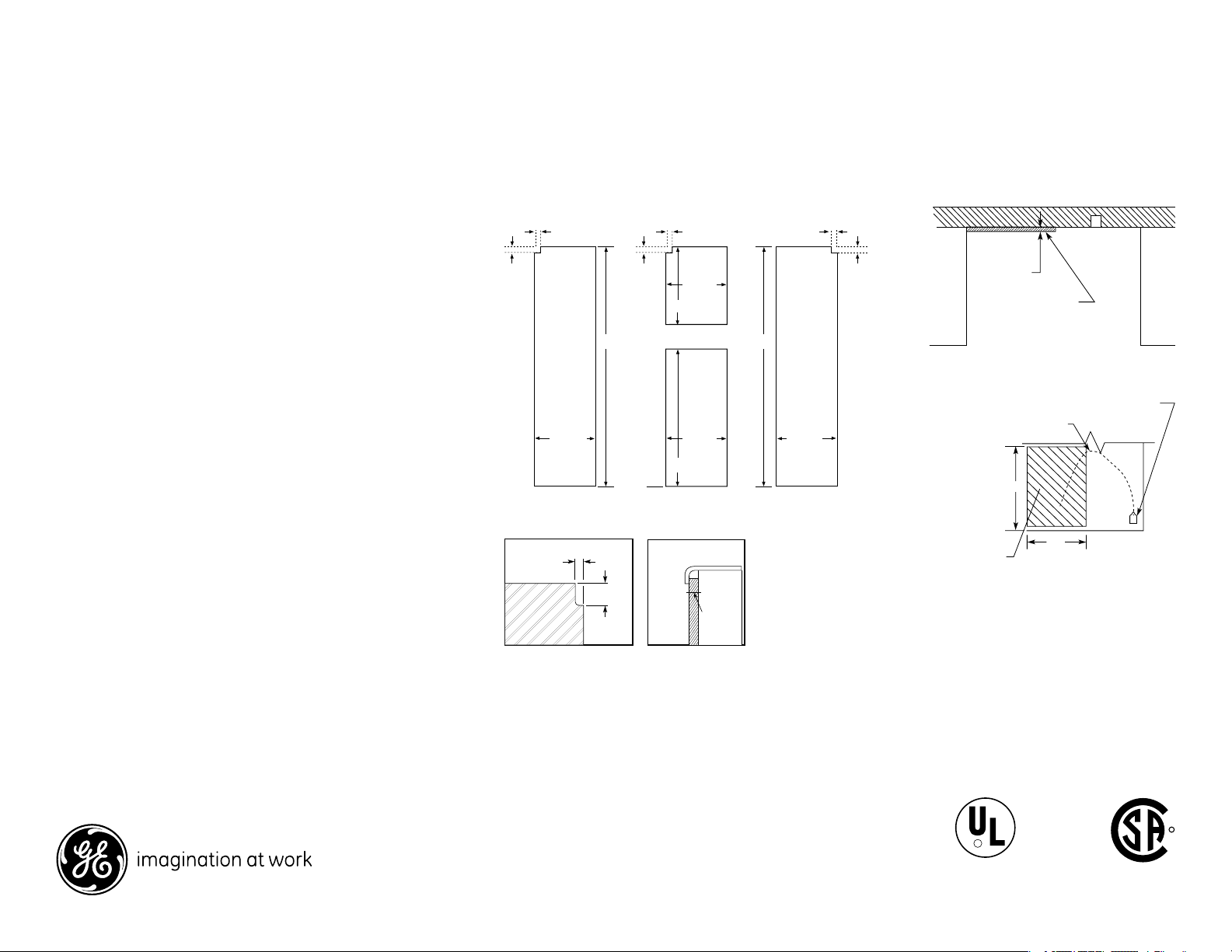

Door Panel Dimensions and Installation Information (in inches)
Order your own custom wood panels to match cabinetry
or other decor.
Panels up to 1/4" thick will fit door frame with no special
preparation. Add filler behind material thinner than 1/4"
for proper fit.
Weight Limits: Total weight of panels (i.e., both freezer
panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.
NOTE: Panels up to 3/4” will require special routing area
around handles. Dimensions may vary depending on
depth of panel.
IMPORTANT: Before finalizing specifications for your
GE Profile CustomStyle Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator
installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition
to the 36-1/8" minimum.
Freezer Panel
without Dispenser
Detail C
Freezer Panel
with Dispenser
Fresh Food
Panel
Installation of Water Outlets
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
(Fresh Food panel shown)
Notch required at top
corner as noted.
Listed by
Underwriters
Laboratories
Specification Revised 7/05
210273
Page 5
PSI23NCR
GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator
Features and Benefits
• CustomStyleTM Configuration - Offers a built-in look without the built-in expense
• CustomCoolTM Technology With Full Extension Slides - Chills in minutes thaws in hours and keeps
foods fresher, longer
• ClimateKeeperTM System - Best Temperature Management System You Can Buy!
• Upfront, Electronic Touch Temperature Controls with Digital Temperature Display -
Precise and easy to use, taking the guesswork out of setting accurate temperatures
• Slide ‘n StoreTM Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing
easy loading and unloading
• FrostGuardTM Technology - Protects frozen items from freezer burn by monitoring door openings and
defrosting only when needed
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put
• TurboCoolTM Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility
and to free up valuable shelf space
• ClearLookTM Adjustable Gallon Door Bin - Store gallon containers with ease
• Model PSI23NCRWV - White on white
• Model PSI23NCRBV - Black on black
Specification Revised 7/05
210273
