Page 1
PSI23NCN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator
TM

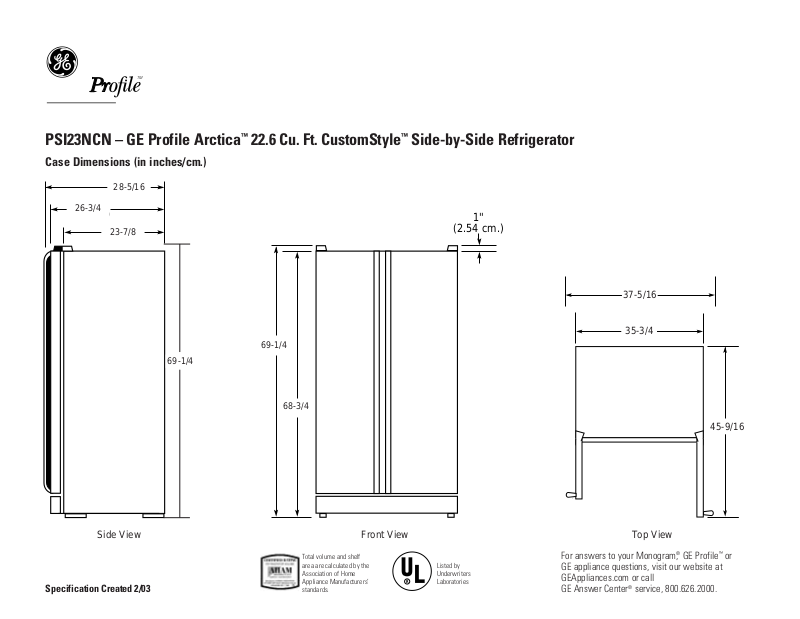

Case Dimensions (in inches/cm.)
1''
(2.54 cm.)
A
B
27-5/8"
(70.2 cm.)
26-3/8"
(67.0 cm.)
23-3/4"
(60.3 cm.)
Side View Front View
69-1/4
68-3/4
28-5/16
26-3/4
23-7/8
69-1/4
I
G
J
Top View
45-9/16
37-5/16
Specification Created 2/03
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
35-3/4
Page 2
PSI23NCN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator
Specification Created 2/03
TM
Standard, New Construction and
Replacement Installation
• All wall/floor molding should be
removed prior to installation.
• Water recess on rear wall
recommended to prevent water line
damage. 48" minimum length 1/4"
diameter water line tubing
recommended.
• When possible, recess both copper
water line and electrical outlet. »(See
local codes)
• Front and rear leveling legs are
adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to
be used or anticipated, see collar
trim installation on next page for
different rough-in dimensions.
Rough-In Dimensions
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Installation of Water and Electrical Outlets
Alternate
water
line location
through floor
1/2"
Top View
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
Page 3
TM
PSI23NCN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator
Specification Created 2/03
An enclosure is required to match up
to the trim, see Typical Installation. To
obtain the most integrated look, the
cabinet or soffit above the refrigerator
should extend out to the same depth
as the side panels. The refrigerator
opening must have minimum
dimensions of 70-1/4" high x 36-1/8"
wide x 24-1/2" deep as shown at
right. If there is an overhead cabinet,
allow 1" for cabinet door clearance
with the top trim piece so the cabinet
doors can be opened without hitting
the top trim. If 1/2" side panels are
used, then side trim and panel will
be even. If 3/4" side panels are used,
then some of the side panel will
extend beyond the trim and must
be finished.

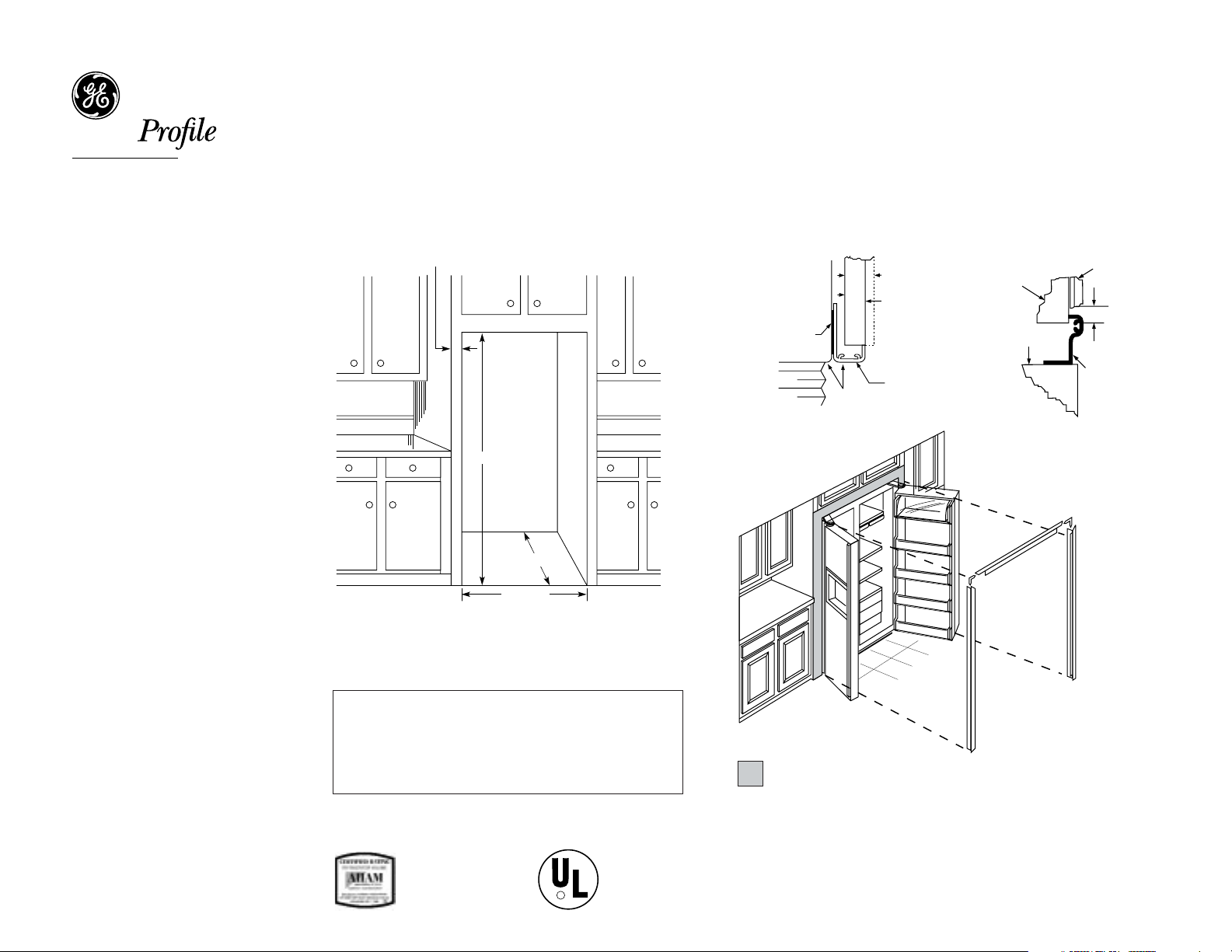

Collar Trim Installation
Typical Installation
Shaded areas represent front surfaces of side panels and
overhead cabinet or soffit that contacts trim.
IMPORTANT: Before finalizing specifications for your GE Profile
CustomStyle Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator installation
with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition to the
36-1/8" minimum
70-1/4"*
36-1/8"
24-1/4"*
1/2" minimum
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above
the refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Side trim must be installed
flush with the gasket contact
surface on the case.
Refrigerator
Case
Side TrimDoor Gasket
Overhead
Cabinet
Cabinet
Door
Top Trim
Case
1"
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Page 4
PSI23NCN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator
TM
Fresh Food Freezer Panel Freezer Panel
Panels With Dispenser Without Dispenser Weight Limits*
G-67-9/32" C-17-7/8" E-33-5/8" A-67-9/32" Fresh Food = 38 lbs.
23 cu. ft. H-19-15/32" D-14-15/32" F-14-15/32" B-14-15/32" Freezer = 28 lbs.
Panels up to 1/4" thick will fit door frame with no special preparation. *Total weight of panels
Add filler behind material thinner than 1/4" for proper fit. (i.e., both freezer panels)
Note: Panels up to 3/4" will require special routing area around handles.
Dimensions may vary depending on depth of panel.
(Fresh Food panel shown)
Notch required at top
corner as noted.

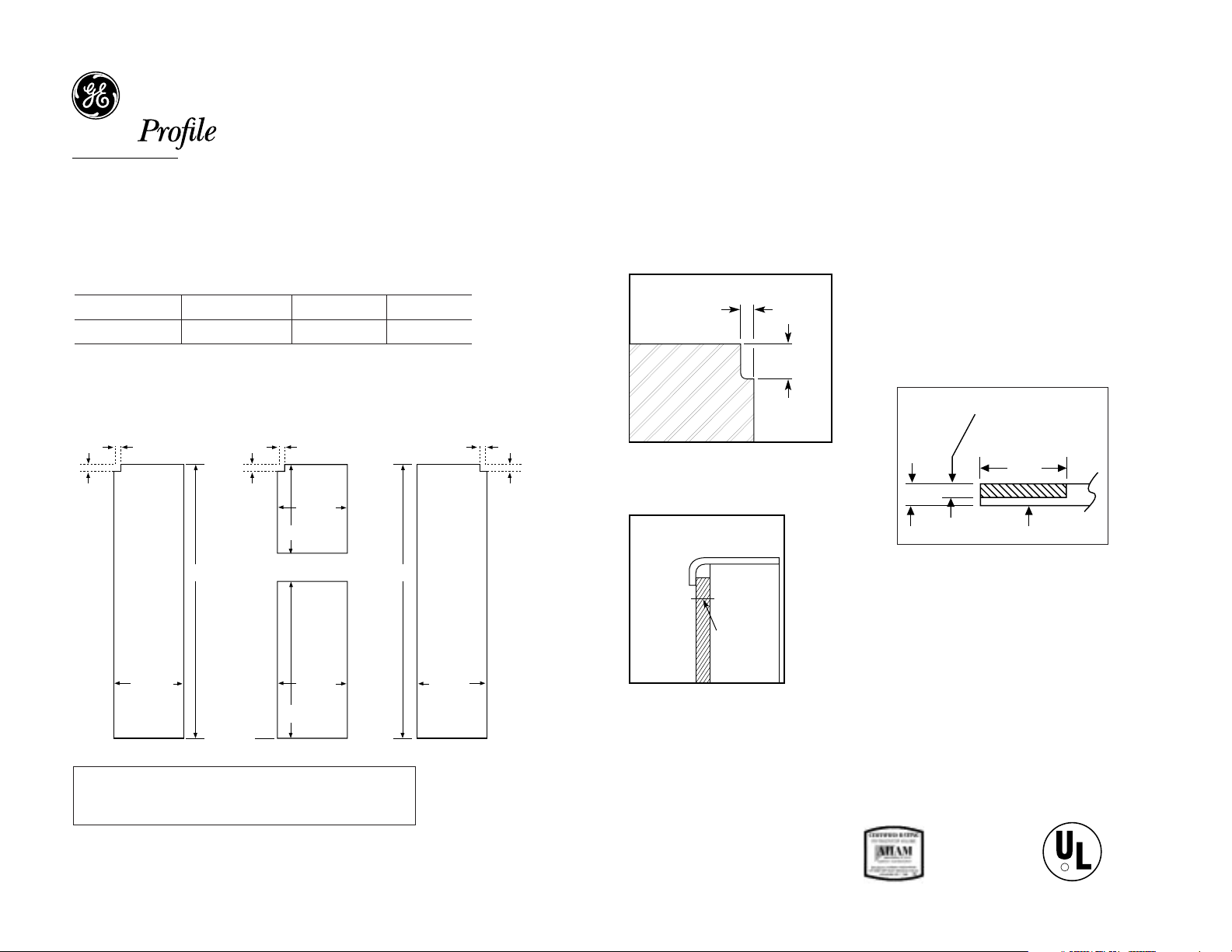

Door Panel Dimensions
Order your own custom wood panels to match cabinetry or other decor.
All other dotted lines indicate
areas that must be routed out
about 5/32" (4 mm) on the back
side of panels 1/4" (6 mm) thick
or more. For panels less than
1/4" (6 mm) thick, these areas
can be cut out of the filler panel.
Specification Created 2/03
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
IMPORTANT: Before finalizing specifications for your GE Profile
CustomStyle Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36-1/8" minimum
Freezer Panel
Without Dispenser
Freezer Panel
With Dispenser
Fresh Food
Panel
Cut
out
1/8 1/8
14-15/32 14-15/32
14-15/32
33-5/8
17-7/8
19-15/32
5/16
Cut
out
Cut
out
1/8
5/16 5/16
FRONT
67-9/32 67-9/32
FRONT FRONT
5/16"
1/8"
1/4" Max.
Panels 1/4" thick
or less
1-1/8"
1/4"
Depth of
material to be
routed out
Front
5/32"
Detail C
Page 5
TM
Specification Created 2/03
PSI23NCN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator

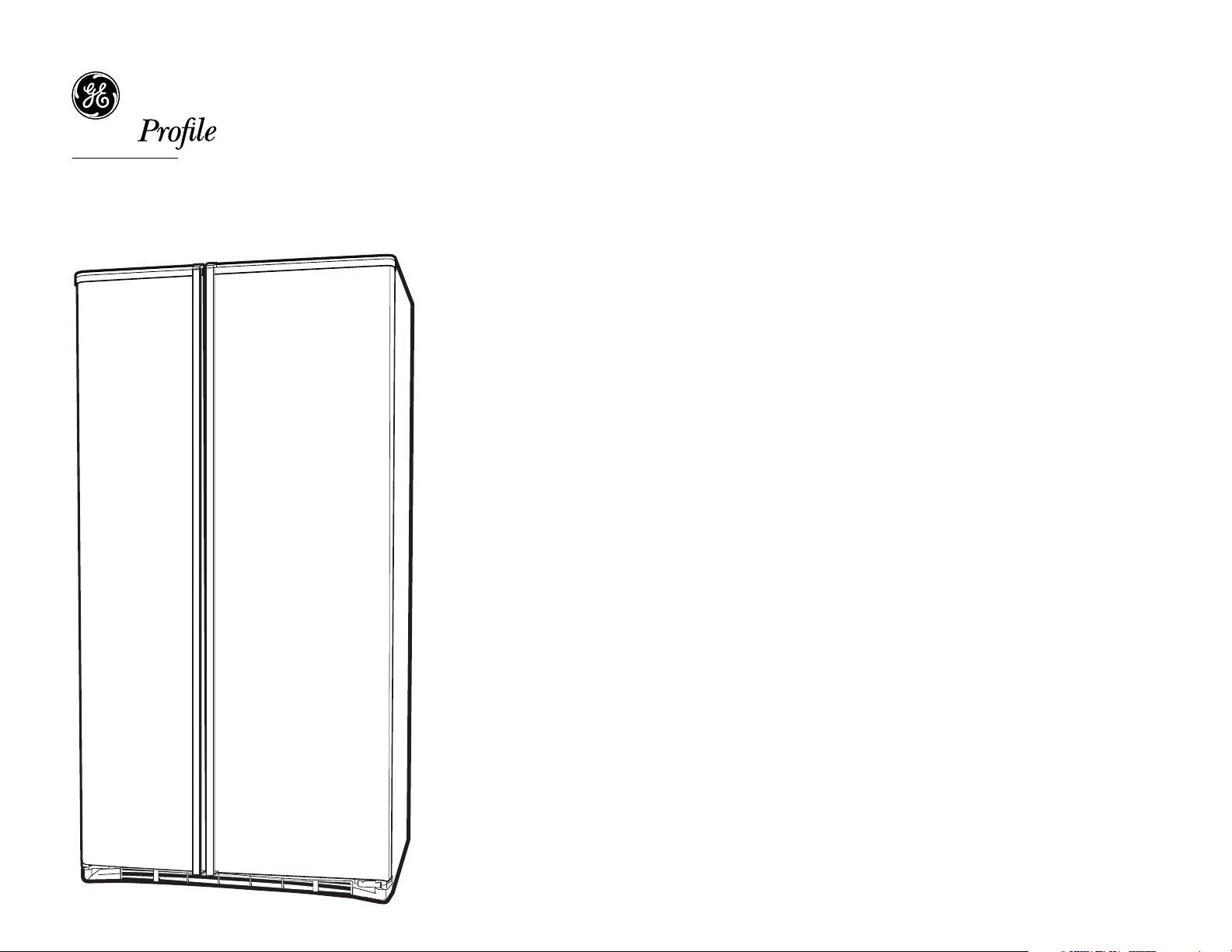

Features and Benefits
• 22.6 cu. ft. Capacity (Fresh Food 14.4 cu. ft./Freezer 8.3 cu. ft.)
• CustomCool™Technology
• ClimateKeeper™System
• Digital Temperature Display
• Upfront Electronic Touch Temperature Control
• TurboCool™Setting
• Integrated Shelf Support System
• FrostGuard™Technology
• Full-Extension Slide ‘N Store™Freezer Baskets (1 Plus)
• 4 Tilt-Out Freezer Storage Bins (3 Adjustable)
• Tri-Level Lighting
• 5 Fresh Food ClearLook™Modular Door Shelves (4 Adjustable)
• QuickSpace™Shelf
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide-Out, Spill-Proof)
• Electronic Icemaker
• Premium Quiet Design
• Model PSI23NCNWW – White on white
• Model PSI23NCNBB – Black on black
• Model PSI23NCNCC – Bisque on bisque
