GE PSH25PSS Specification

PSH25PSS

"94 SxS Refer

A

Top View

G

D

C

F

B

E

H

R

R

GE Profile CustomStyle™ ENERGY STAR® 24.6 Cu. Ft. Stainless Side-By-Side Refrigerator

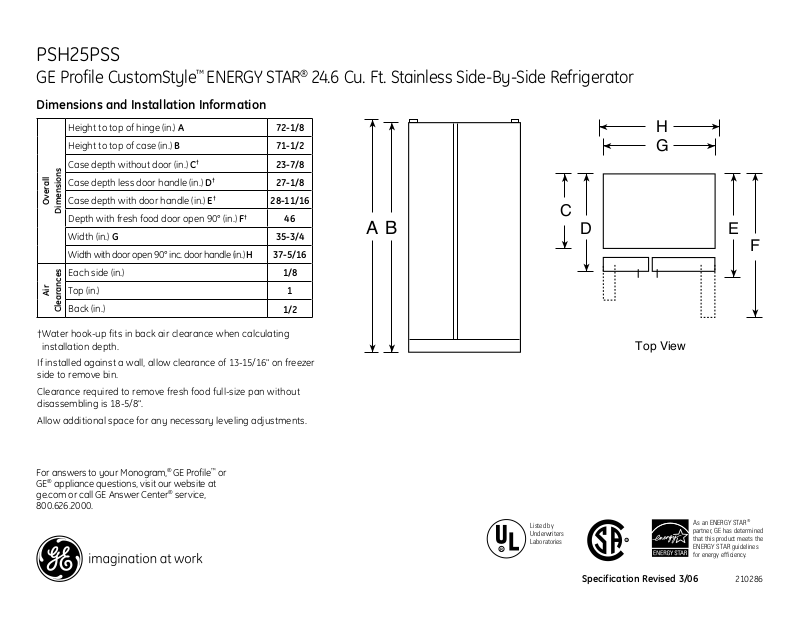

Dimensions and Installation Information

Height to top of hinge (in.) A 72-1/8

Height to top of case (in.)

Case depth without door (in.)

Case depth less door handle (in.)

Case depth with door handle (in.)

Overall

Dimensions

Depth with fresh food door open 90° (in.)

Width (in.)

Width with door open 90° inc. door handle (in.)

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on freezer
side to remove bin.

Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

G 35-3/4

B 71-1/2

†

C

†

D

†

E

†

F

23-7/8

27-1/8

28-11/16

H 37-5/16

46

1/8

1

1/2

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Listed by
Underwriters
Laboratories

Specification Revised 3/06

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

210286

PSH25PSS

8' Ceiling

13" to 14"
Cabinet

12"
Soffit

36-1/8"

24-1/2"

70-1/4"*
23 cu. ft. models

72-1/4"*
25 cu. ft. models

R

R

25"
Counter
Top

ElectricalWater

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

25"
Counter
Top

Electrical Water

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

25"
Counter
Top

ElectricalWater

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

25"
Counter
Top

Electrical Water

Trim

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

GE Profile CustomStyle™ ENERGY STAR® 24.6 Cu. Ft. Stainless Side-By-Side Refrigerator

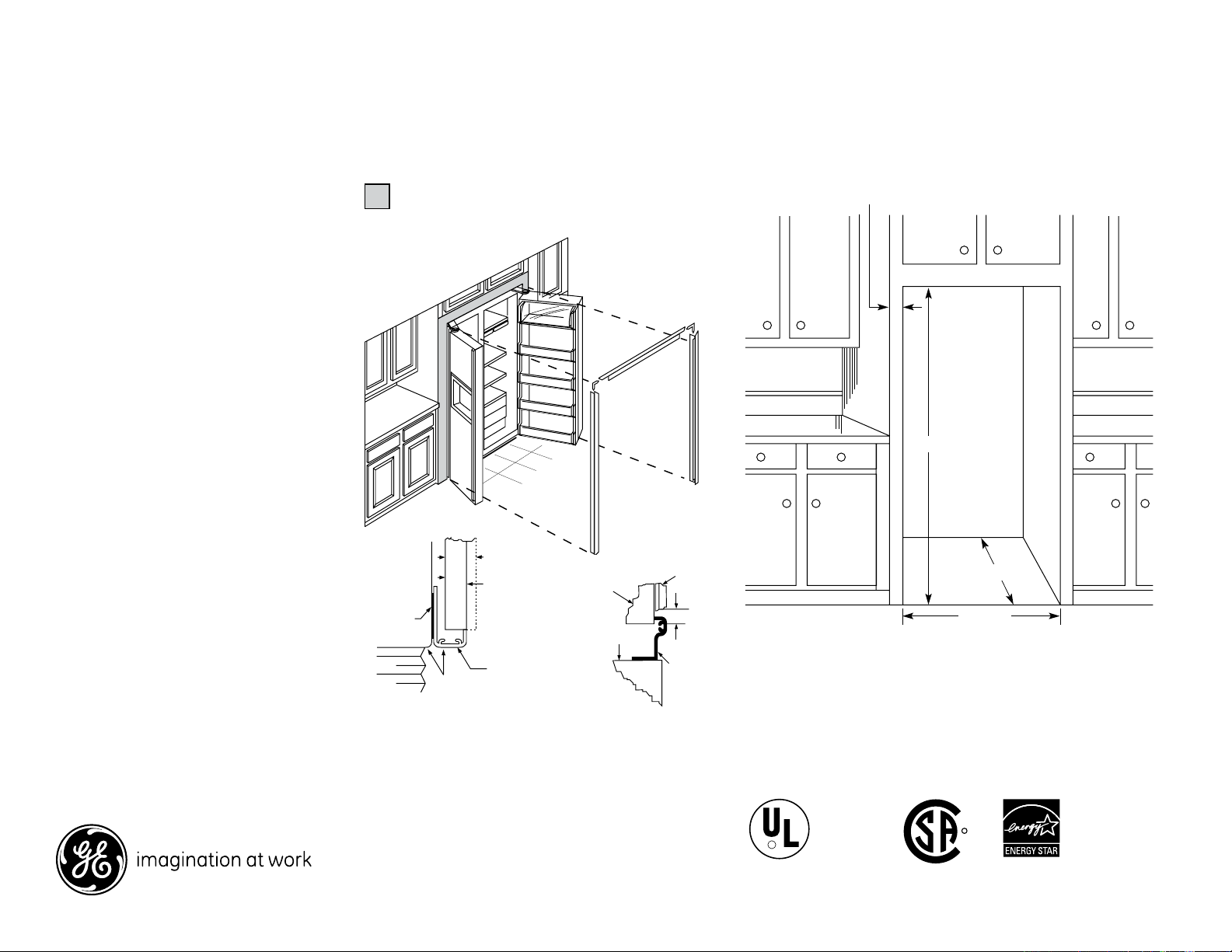

Rough-In Dimensions and Installation Information

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.

• When possible, recess both copper water line and electrical
outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)

**The rough-in dimensions of 70-1/4"/72-1/4" are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening for 23 cu. ft. models and 1/8" (72-3/8") for
25 cu. ft. models to allow for additional clearance between the
cabinet doors and the top of refrigerator trim when the cabinet
doors are in open position.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

210286

Listed by
Underwriters
Laboratories

Specification Revised 3/06

PSH25PSS

R

R

70-1/4"*

36-1/8"

24-1/2"*

1/2" minimum

*The rough-in dimension of 70-1/4" is minimum and is measured from the 

 finished floor to top of opening (or the underside of the overhead cabinets).
 For Models with Trim Kit: If frameless style cabinets are planned for above the
 refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to 
 height of opening to allow additional clearance between cabinet doors and 
 top of refrigerator trim when cabinet doors are in open position.

Magnetic
Tape

3/4" Cabinet
Side Panel

1/2" Cabinet
Side Panel

Side trim must be installed
flush with the gasket contact
surface on the case.

Refrigerator
Case

Side TrimDoor Gasket

Overhead
Cabinet

Cabinet
Door

Top Trim

Case

1"

GE Profile CustomStyle™ ENERGY STAR® 24.6 Cu. Ft. Stainless Side-By-Side Refrigerator

Rough-In Dimensions and Installation Information (in inches)

Collar Trim Installation

An enclosure is required to match up to the
trim, see Typical Installation. To obtain the
most integrated look, the cabinet or soffit

above the refrigerator should extend out
to the same depth as the side panels. The
refrigerator opening must have minimum
dimensions of 70-1/4" high x 36-1/8" wide
x 24-1/2" deep as shown at right. If there is
an overhead cabinet, allow 1" for cabinet
door clearance with the top trim piece so
the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels are
used, then side trim and panel will be even.
If 3/4" side panels are used, then some of
the side panel will extend beyond the trim
and must be finished.

IMPORTANT: Before finalizing specifications

for your GE Profile CustomStyle Refrigerator,

please NOTE:

• A minimum of 36-1/8" is required for
refrigerator installation with collar

• Be sure to allow for 1/2" or 3/4" side
panels in addition to the 36-1/8"
minimum.

Typical Installation

Shaded areas represent front surfaces of side panels and
overhead cabinet or soffit that contacts trim.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Listed by
Underwriters
Laboratories

Specification Revised 3/06

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

210286

PSH25PSS

W

A

T

E

R

C

R

U

S

H

E

D

C

U

B

E

D

C

L

O

C

K

S

E

T

L

I

G

H

T
D

O

O

R

A

L

A

R

M

R

E

S

E

T

W

A

T

E

R

F

I

L

T

E

R

H

O

L

D

3

S

E

C

.

L

O

C

K

C

O

N

T

R

O

L

H

O

L

D

3

S

E

C

.

Arctica

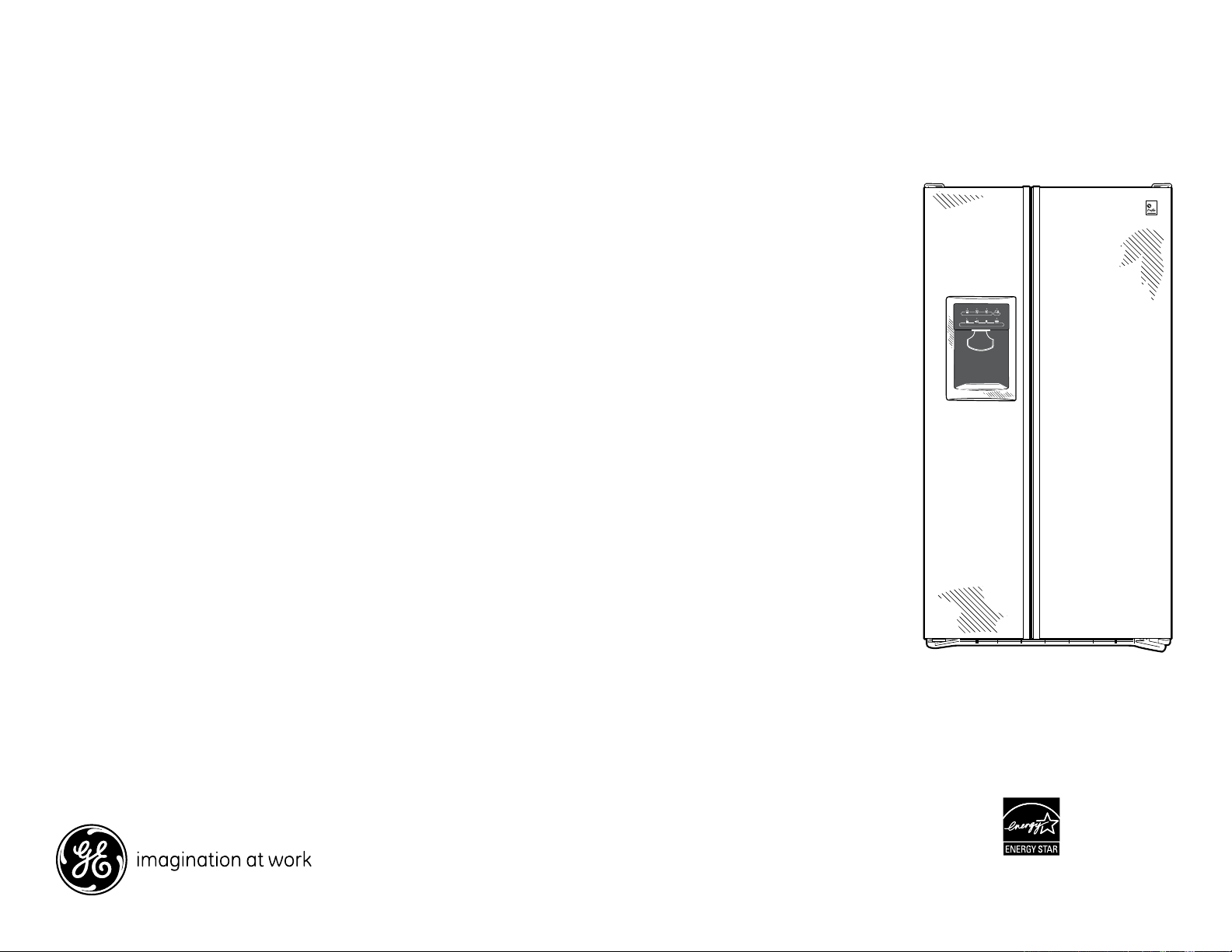

GE Profile CustomStyle™ ENERGY STAR® 24.6 Cu. Ft. Stainless Side-By-Side Refrigerator

Features and Benefits

• CustomStyle™ Configuration - Offers a built-in look without the built-in expense

• Stainless Steel - Convey a look of utmost polish and sophistication

• ClimateKeeper2
transfer, with its unique dual-evaporator system

• CustomCool

foods fresher, longer

• Beverage Center - Keeps beverages and treats icy cold and easily accessible

™

System - Keeps food garden fresh longer, while protecting ice from odor

™

Technology With Full Extension Slides - Chills in minutes thaws in hours and keeps

• Upfront, Electronic Touch Temperature Controls with Digital Temperature Display -

Precise and easy to use, taking the guesswork out of setting accurate temperatures

• Integrated Ice

™

System - Frees up valuable freezer space. It tilts down, providing easy access

to bulk ice

• Tall LightTouch! Dispenser with LED lighting- Dispenses water and ice at the slightest touch;
LED lighting provides long-lasting illumination

• Slide ‘n Store

™

Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing

easy loading and unloading

• FrostGuard
defrosting only when needed

™

Technology - Protects frozen items from freezer burn by monitoring door openings and

• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put

• QuickIce

• TurboCool

• GE SmartWater

™

Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

™

Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings

™

Plus Filtration System - Delivers clean, great-tasting water and ice through the

LightTouch! Dispenser with indicator light

• Model PSH25PSSSV - Stainless steel

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

Specification Revised 3/06

210286
