PSH23PSS
R
R
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
GE Profile CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless Side-By-Side Refrigerator

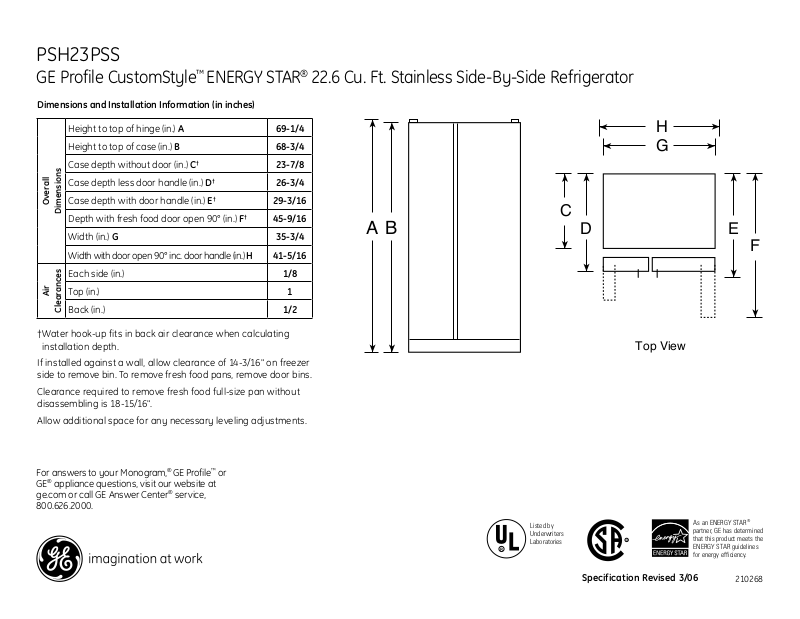

Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.)
Case depth without door (in.)
Case depth less door handle (in.)
Case depth with door handle (in.)
Overall
Dimensions
Depth with fresh food door open 90° (in.)
Width (in.)
Width with door open 90° inc. door handle (in.)
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin. To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
G 35-3/4
B 68-3/4
†
C
†
D
†
E
†
F
23-7/8
26-3/4
29-3/16
45-9/16
H 41-5/16
1/8
1
1/2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 3/06
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
210268
Page 2
PSH23PSS
70-1/4"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Side trim must be installed
flush with the gasket contact
surface on the case.
Refrigerator
Case
Side TrimDoor Gasket
Overhead
Cabinet
Cabinet
Door
Top Trim
Case
1"
R
R
GE Profile CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless Side-By-Side Refrigerator
Rough-In Dimensions and Installation Information (in inches)
Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the
most integrated look, the cabinet or soffit
above the refrigerator should extend out
to the same depth as the side panels. The
refrigerator opening must have minimum
dimensions of 70-1/4" high x 36-1/8" wide
x 24-1/2" deep as shown at right. If there is
an overhead cabinet, allow 1" for cabinet
door clearance with the top trim piece so
the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels are
used, then side trim and panel will be even.
If 3/4" side panels are used, then some of
the side panel will extend beyond the trim
and must be finished.
IMPORTANT: Before finalizing specifications
for your GE Profile CustomStyle Refrigerator,
please NOTE:
• A minimum of 36-1/8" is required for
refrigerator installation with collar
• Be sure to allow for 1/2" or 3/4" side
panels in addition to the 36-1/8"
minimum.
Typical Installation
Shaded areas represent front surfaces of side panels and
overhead cabinet or soffit that contacts trim.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 3/06
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
210268
Page 3
PSH23PSS
W
A
T
E
R
C
R
U
S
H
E
D
C
U
B
E
D
C
L
O
C
K
S
E
T
L
I
G
H
T
D
O
O
R
A
L
A
R
M
R
E
S
E
T
W
A
T
E
R
F
I
L
T
E
R
H
O
L
D
3
S
E
C
.
L
O
C
K
C
O
N
T
R
O
L
H
O
L
D
3
S
E
C
.
Arctica
GE Profile CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless Side-By-Side Refrigerator
Features and Benefits
• CustomStyle™ configuration - Offers a built-in look without the built-in expense
• Stainless Steel - Convey a look of utmost polish and sophistication
™
• ClimateKeeper2
transfer, with its unique dual-evaporator system
• CustomCool™ Technology With Full Extension Slides - Chills in minutes thaws in hours and
keeps foods fresher, longer
• Beverage Center - Keeps beverages and treats icy cold and easily accessible.
System - Keeps food garden fresh longer, while protecting ice from odor
• Upfront Electronic Touch Temperature Controls with Digital Temperature Display - Clearly
displays exact temperatures for the fresh food and freezer compartments
• Integrated Ice™ System - Frees up valuable freezer space. It tilts down, providing easy
access to bulk ice
•
LightTouch! tall dispenser with LED lighting- Dispenses water and ice at the slightest touch.
LED lighting provides long-lasting illumination without generating heat.
™
• Slide ‘n Store
full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet,
providing easy access to contents
• FrostGuard™ Technology - Reduces freezer burn, so foods retain their texture and flavor
• Model PSH23PSSSV - Stainless steel
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
Specification Revised 3/06
210268
