PSCF3TGX

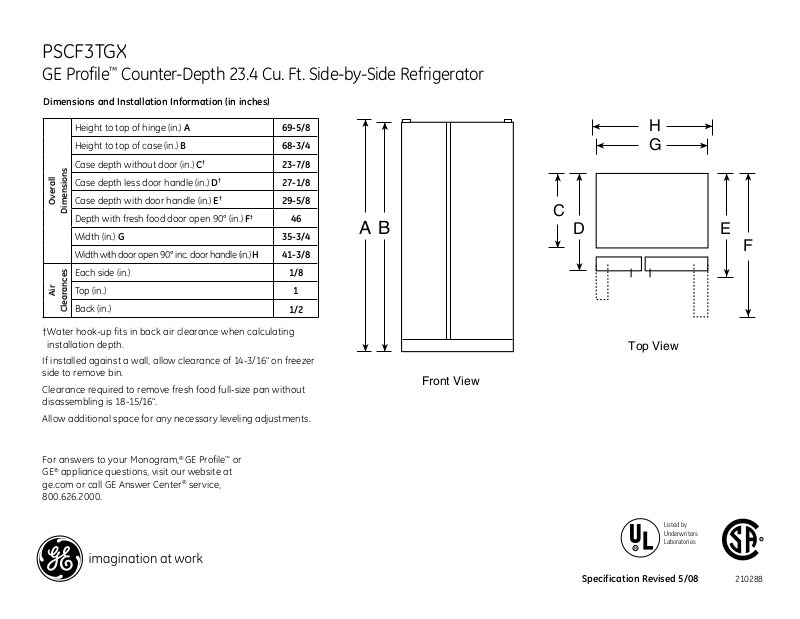

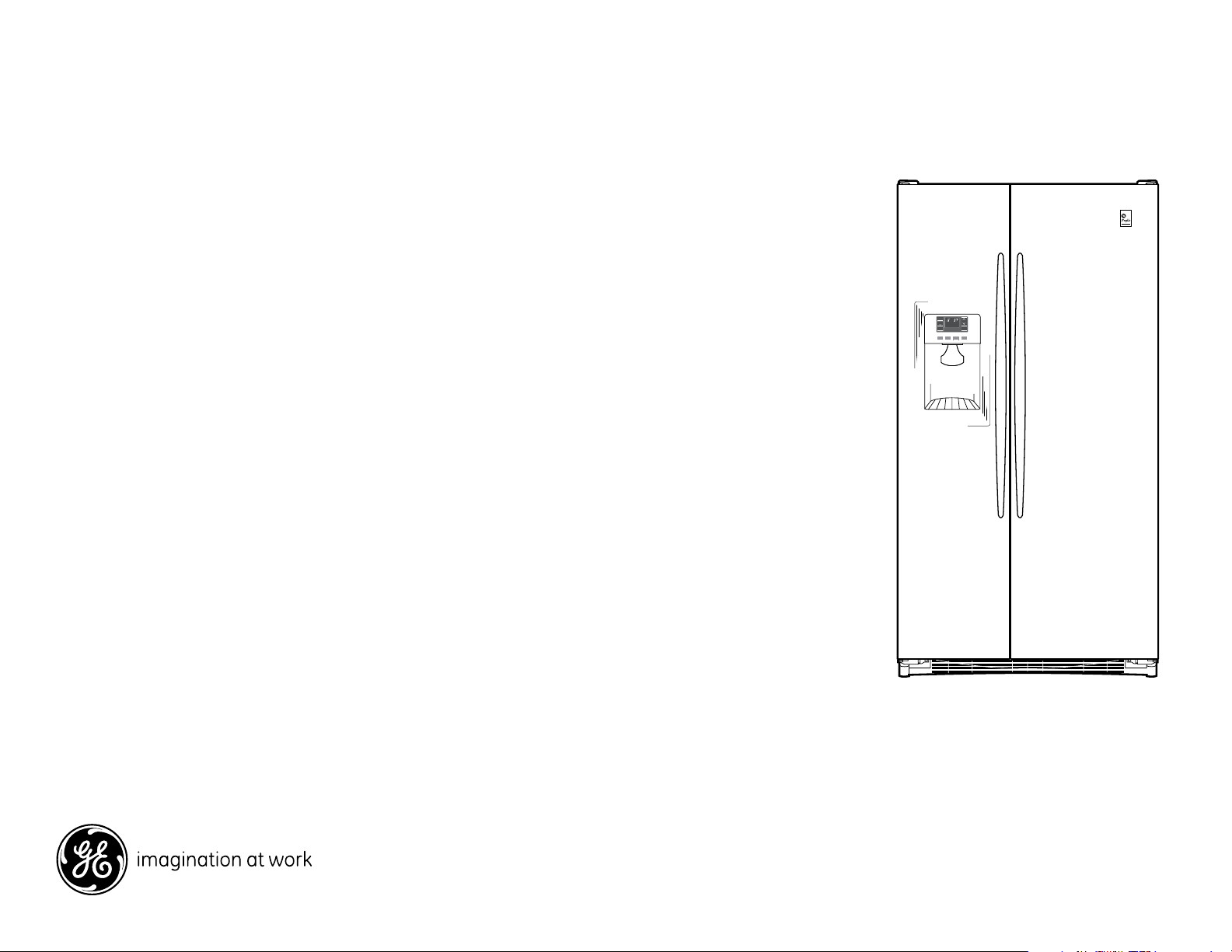

GE Profile™ Counter-Depth 23.4 Cu. Ft. Side-by-Side Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41-3/8
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
†
†
†
†
68-3/4
23-7/8
27-1/8
29-5/8
46
1/8
1
1/2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 5/08
210288
Page 2
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
PSCF3TGX
GE Profile™ Counter-Depth 23.4 Cu. Ft. Side-by-Side Refrigerator
Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from
the finished floor to top of opening (or the underside of the
overhead cabinets). For Models with Trim Kit: If frameless style
cabinets are planned for above the refrigerator, you may need
to consider adding a maximum of 1/4" (70-1/4") to height of
opening for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft.
models to allow for additional clearance between the cabinet
doors and the top of refrigerator trim when the cabinet doors
are in open position.
†Model PSDW3YGX is 71-3/4"
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Revised 5/08
Listed by
Underwriters
Laboratories
210288
Page 3
Lock
Controls
Freezer Temp
Fridge Temp
On/Off
Set
Features
0°F is Recommended for Freezer
37°F is Recommended for Fridge
Water
FREEZER
F
REFRIGERATOR
F
Door Alarm On
TurboCool On
Replace Water Filter
Crushed Cubed Light
PSCF3TGX
GE Profile™ Counter-Depth 23.4 Cu. Ft. Side-by-Side Refrigerator
Features and Benefits
• Counter-Depth Design - Offers a built-in look without the built-in expense
• High-Gloss Finish - Provides sleek elegance with a smooth surface
• ClimateKeeper
You Can Buy
• Integrated Dispenser with LED Lighting & UltraFlow100 - Illuminates the dispenser and pours
up to 100 ounces of water per minute
• ExpressChill
45 minutes
• Slide 'n Store
providing easy loading and unloading
• Quick Ice
• TurboCool
• Integrated Ice
to bulk ice
™
Temperature Management System - Best Temperature Management System
™
with 1 Setting - Chills beverages quickly with easy one-button selection of
™
Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet,
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
™
Setting - Cools the refrigerator quickly after frequent door openings
™
System - Frees up valuable freezer space; It tilts down, providing easy access
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
™
Door Bins - Hold gallon-size containers with style and ease
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase
flexibility and to free up valuable shelf space
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out
shelves make clean up quick and easy
• Model PSCF3TGXWW - White on white
• Model PSCF3TGXBB - Black on black
Specification Revised 5/08
210288
