PSC23SSN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
TM

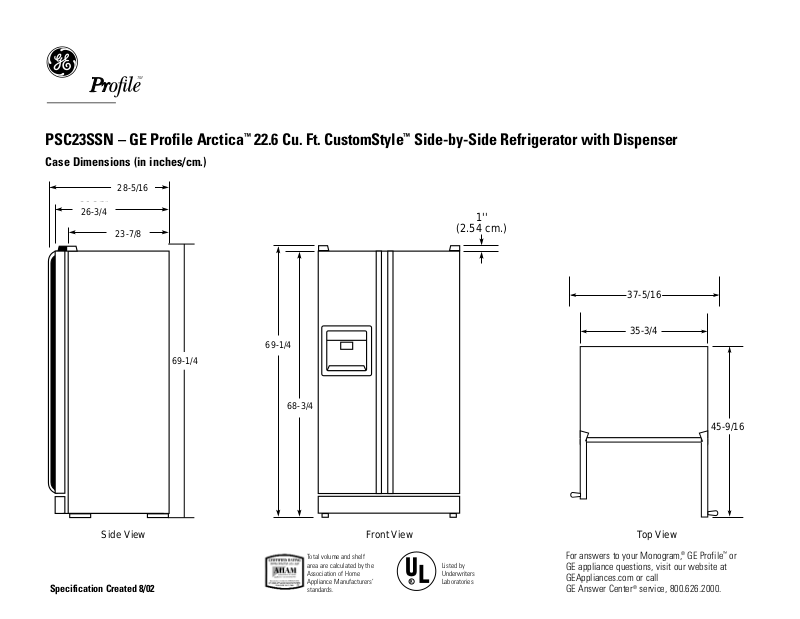

Case Dimensions (in inches/cm.)
A
1''
(2.54 cm.)
B
27-5/8"
(70.2 cm.)
26-3/8"
(67.0 cm.)
23-3/4"
(60.3 cm.)
Side View Front View
69-1/4
68-3/4
28-5/16
26-3/4
23-7/8
69-1/4
I
G
J
Top View
45-9/16
37-5/16
Specification Created 8/02
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
35-3/4
Page 2
PSC23SSN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Created 8/02
TM
Standard, New Construction
and Replacement Installation
Rough-In Dimensions
• All wall/floor molding should be
removed prior to installation.
• Water recess on rear wall
recommended to prevent water
line damage. 48" minimum length
1/4" diameter water line tubing
recommended.
• When possible, recess both
copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are
adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to
be used or anticipated, see collar
trim installation on next page for
different rough-in dimensions.
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Installation of Water and Electrical Outlets
Alternate
water
line location
through floor
1/2"
Top View
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
Page 3
TM
Specification Created 8/02

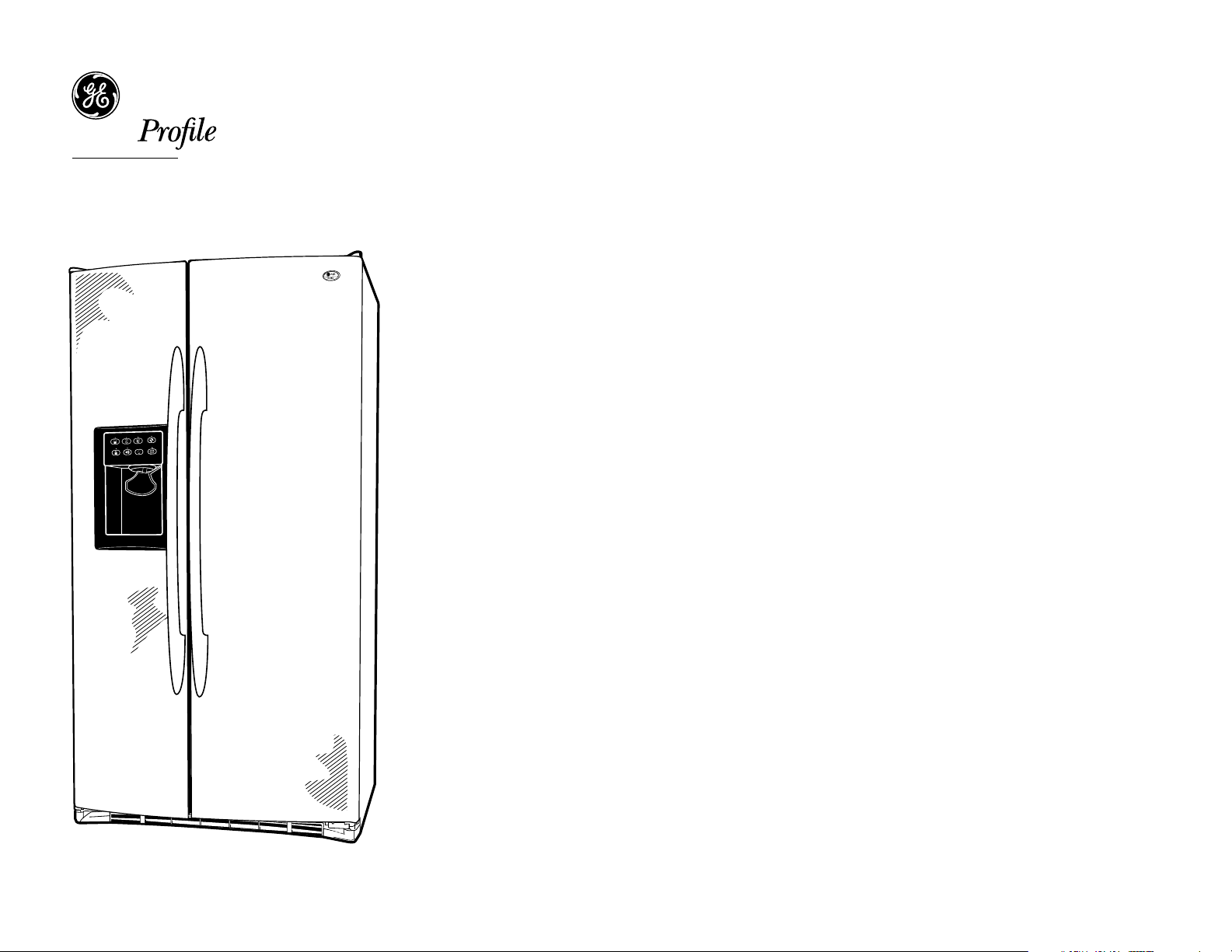

PSC23SSN – GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
W
A
T
E
R
C
R
U
S
H
E
D
C
U
B
E
D
R
E
S
E
T
W
A
T
E
R
F
I
L
T
E
R
H
O
L
D
3
S
E
C
S
L
I
G
H
T
D
O
O
R
A
L
A
R
M
L
O
C
K
C
O
N
T
R
O
L
H
O
L
D
3
S
E
C
S
Q
U
I
C
K
I
C
E
Features and Benefits
• 22.6 cu. ft. Capacity (Fresh Food 14.4 cu. ft./Freezer 8.24 cu. ft.)
• CustomCool™Technology Chills Food and Beverages in Minutes
and Thaws Food Safety and Quickly
• ClimateKeeper™System Temperature Management System – an Electronic System
That Helps Keep Food Fresh
• Digital Temperature Display Shows Actual Temperature Inside Refrigerator
• Upfront Electronic Touch Temperature Controls are Precise and Easy to Set
• TurboCool™Setting
• SmartWater™Plus Provides Cleaner, Better Tasting Water Cubed and Crushed Ice
Through the LightTouch! Dispenser (with Door Alarm and Child Lock)
• Integrated Shelf Support System with QuickSpace™Shelf Allows for Maximum Flexibility
and Easily Accommodates Taller Items
• Full-Extension Slide ‘N Store™Freezer Baskets Fully Extend Making Freezer Contents
More Accessible
• FrostGuard™Technology
• Quick Ice™Setting Provides up to 50% More Ice Than Normal Settings
• Door Alarm
• Child Lock
• 3 Wire Tilt-Out Storage Bins (2 Adjustable)
• Tri-Level Lighting
• 5 ClearLook™Modular Fresh Food Door Shelves (4 Adjustable)
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide-Out, Spill-Proof)
• Electronic Icemaker
• Premium Quiet Design
• Sculptured Handle Provides Sleek, Elegant Appearance
• Model PSC23SSNSS – Stainless steel
