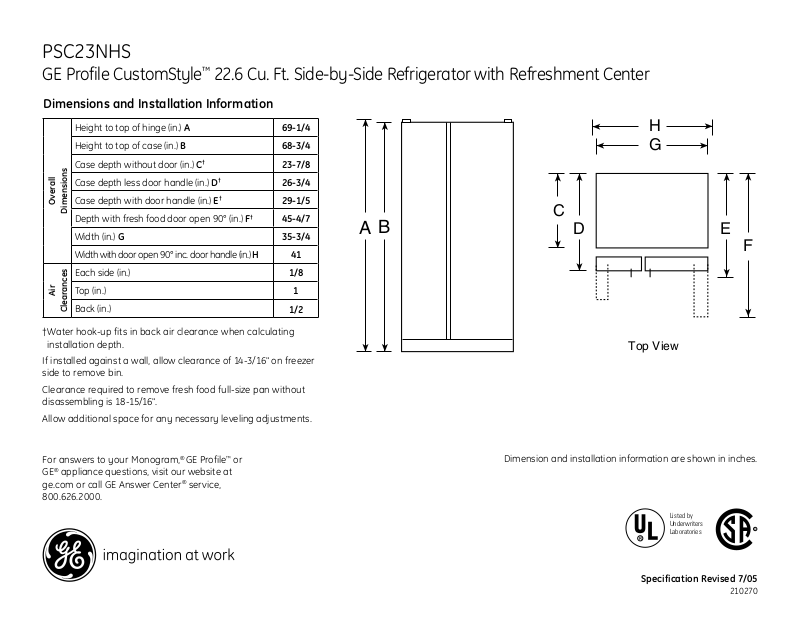

PSC23NHS
GE Profile CustomStyle™ 22.6 Cu. Ft. Side-by-Side Refrigerator with Refreshment Center
Dimensions and Installation Information
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.) B 68-3/4
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
†
†
†
†
23-7/8
26-3/4
29-1/5
45-4/7
1/8
1
1/2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Dimension and installation information are shown in inches.
Listed by
Underwriters
Laboratories
Specification Revised 7/05
210270
Page 2
R
R
PSC23NHS
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
GE Profile CustomStyle™ 22.6 Cu. Ft. Side-by-Side Refrigerator with Refreshment Center
Rough-In Dimensions and Installation Information
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
* The rough-in dimensions of 70-1/4”/72-1/4” are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets) For Models with Trim Kit: If
frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4” (70-1/2”)
to height of opening for 23 cu. ft. models and 1/8” (72-3/8”) for
25 cu. ft. models to allow additional clearance between cabinet
doors and top of refrigerator trim when cabinet doors are in
open position.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Dimension and installation information are shown in inches.
Listed by
Underwriters
Laboratories
Specification Revised 7/05
210270
Page 3
W
A
T
E
R
C
R
U
S
H
E
D
C
U
B
E
D
C
L
O
C
K
S
E
T
L
I
G
H
T
D
O
O
R
A
L
A
R
M
R
E
S
E
T
W
A
T
E
R
F
I
L
T
E
R
H
O
L
D
3
S
E
C
.
L
O
C
K
C
O
N
T
R
O
L
H
O
L
D
3
S
E
C
.
Arctica
PSC23NHS
GE Profile CustomStyle™ 22.6 Cu. Ft. Side-by-Side Refrigerator with Refreshment Center
Features and Benefits
• CustomStyleTM configuration - Offers a built-in look without the built-in expense
• Refreshment Center - Provides convenient in-door access to favorite foods and drinks
• CustomCoolTM Technology With Full Extension Slides - Chills in minutes thaws in hours and
keeps foods fresher, longer
• ClimateKeeperTM system - Best Temperature Management System You Can Buy!
• Upfront Electronic Touch Temperature Controls with Digital Temperature Display -
Clearly displays exact temperature for the fresh food and freezer compartments
• Integrated IceTM System - Frees up valuable freezer space. It tilts down, providing easy
access to bulk ice
• LightTouch! tall dispenser - Delivers chilled water cubed ice or crushed ice at the slightest touch
•
Slide ‘n Store™ full-extension freezer baskets - Extends 12" to 16" beyond the cabinet, providing
easy access to contents
• FrostGuardTM Technology - Reduces freezer burn, so foods retain their texture and flavor
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put
• Quick IceTM Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCoolTM Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings
• GE SmartWaterTM Plus Filtration System - Delivers clean, great-tasting water and ice through
the LightTouch! Dispenser with indicator light
• ClearLookTM Adjustable Gallon Door Bin - Store gallon containers with ease
• Model PSC23NHSWW - White on white
• Model PSC23NHSBB - Black on black
Specification Revised 7/05
