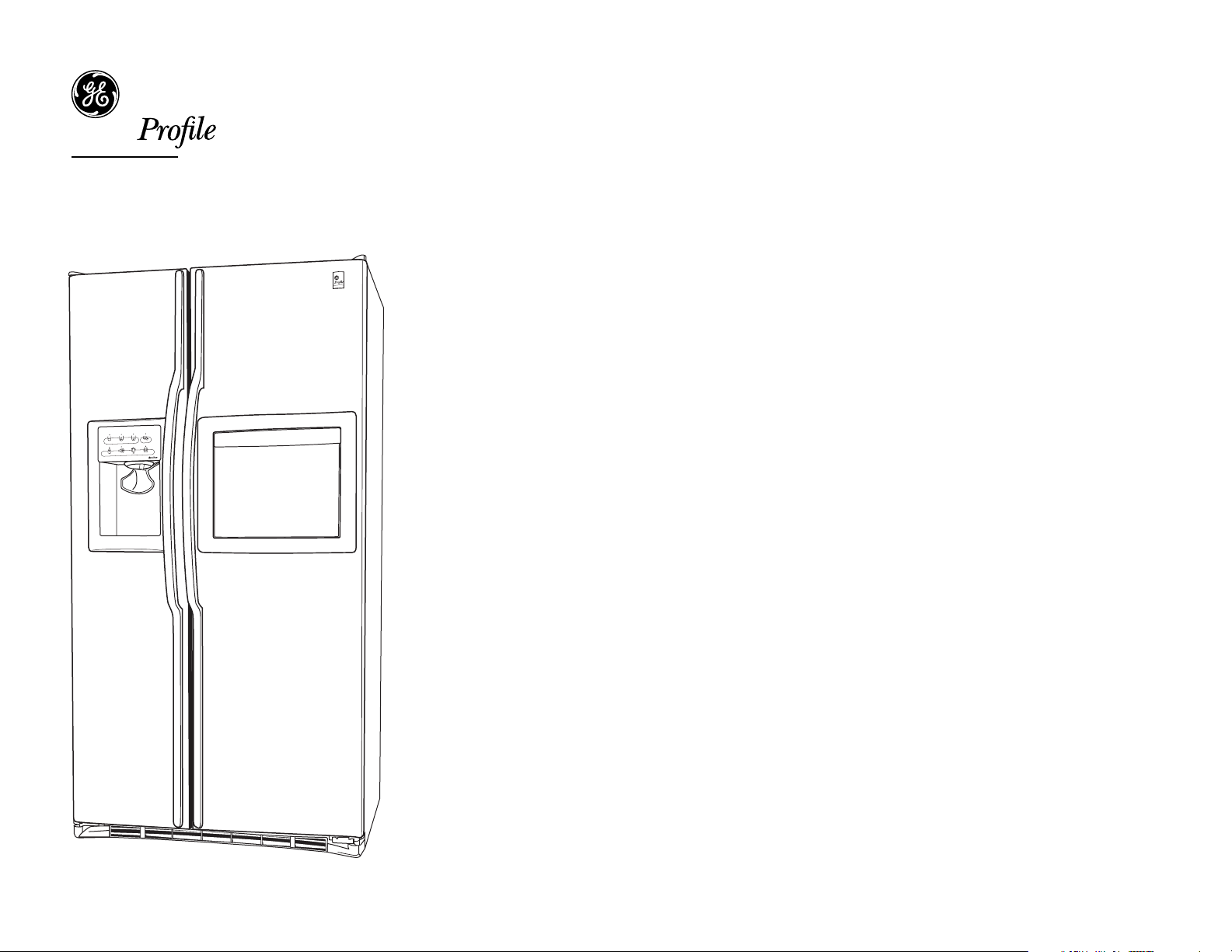

PSC23NHP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
TM

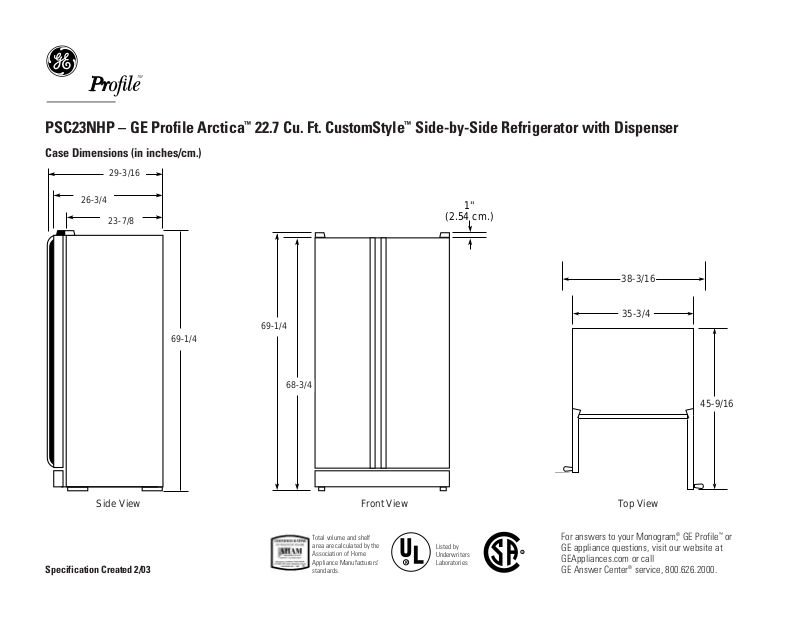

Case Dimensions (in inches/cm.)
1''
(2.54 cm.)
A
B
C
F
D
E
Side View Front View
69-1/4
68-3/4
26-3/4
23-7/8
69-1/4
I
G
J
Top View
45-9/16
38-3/16
Specification Created 2/03
R
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
35-3/4
29-3/16
Page 2
PSC23NHP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Standard, New Construction
and Replacement Installation
Installation Tips to
Maximize the Built-In Look
• All wall/floor molding should
be removed prior to installation.
• Water recess on rear wall
recommended to prevent water
line damage. 48" minimum length,
1/4" diameter water line tubing
recommended.
• When possible, recess both copper
water line and electrical outlet.
(See local codes)
• Front and rear leveling legs are
adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to be
used or anticipated, see collar trim
installation on next page for
different rough-in dimensions.
Rough-In Dimensions
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Specification Created 2/03
R
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
TM
Page 3
PSC23NHP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
WATER
RE
SET
WATER
FIL
TER
LI
GH
T
DOOR
A
L
AR
M
L
O
CK
C
O
N
TR
O
L
C
R
U
SH
E
D
C
U
B
E
D
Q
U
I
CK
I
C
E
Features and Benefits
• CustomStyle™Configuration – CustomStyle™design – offers a built-in look without the
built-in expense.
• Refreshment Center – Provides convenient in-door access to favorite foods and drinks.
• CustomCool™Technology with Full Extension Slides – Chills in minutes, thaws in hours and
keeps foods fresher, longer.
• ClimateKeeper™Temperature Management System – Best temperature management system
you can buy!
• Upfront Electronic Digital Display – Clearly displays exact temperatures for the fresh food and
freezer compartments.
• Integrated Ice™System – Frees up valuable freezer space. It tilts down, providing easy access
to bulk ice.
• In-the-Door Beverage Rack – Conveniently located to increase flexibility and free up valuable
shelf space.
• Model PSC23NHPWW – White on white
• Model PSC23NHPCC – Bisque on bisque
• Model PSC23NHPBB – Black on black
Specification Created 2/03
