"94 SxS Refer
A
Front View
Top View
G
D
C
F
B
E
H

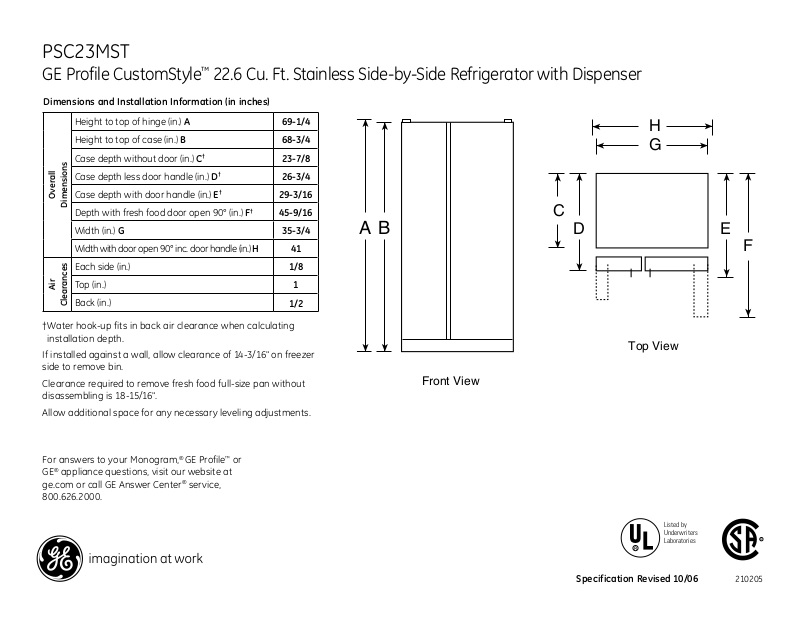

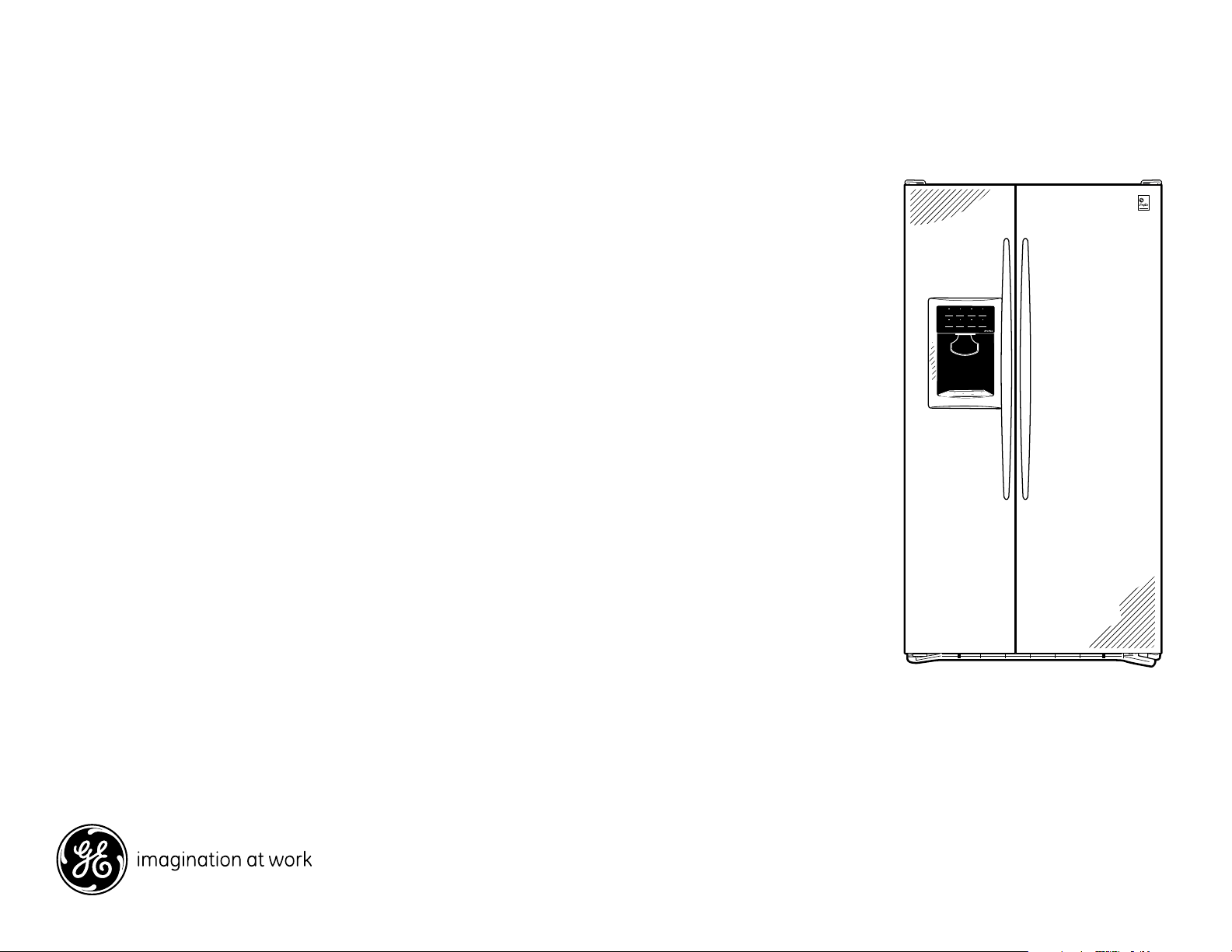

PSC23MST
GE Profile CustomStyle™ 22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Dispenser
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.) B 68-3/4
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41
†
†
†
†
23-7/8
26-3/4
29-3/16
45-9/16
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1/2
Listed by
Underwriters
Laboratories
Specification Revised 10/06
210205
Page 2
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
PSC23MST
GE Profile CustomStyle™ 22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Dispenser
Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
* The rough-in dimensions of 70-1/4”/72-1/4” are minimum and measured from the finished
floor to top of opening (or the underside of the overhead cabinets) For Models with Trim Kit:
If frameless style cabinets are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4” (70-1/2”) to height of opening for 23 cu. ft. models and
1/8” (72-3/8”) for 25 cu. ft. models to allow additional clearance between cabinet doors
and top of refrigerator trim when cabinet doors are in open position.
Listed by
Underwriters
Laboratories
Specification Revised 10/06
210205
Page 3
WATER
L
OCK
Hold 3 seconds
CRUSHED
DOOR
ALARM
CUBED
L
IGHT
Hold 3 seconds to Reset
QUICK ICE
RSET
FILTER
PSC23MST
GE Profile CustomStyle™ 22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Dispenser
Features and Benefits
• Stainless Steel Exterior - Convey a look of utmost polish and sophistication
• CustomStyle™ Configuration - Offers a built-in look without the built-in expense
• ClimateKeeper™ System - Best Temperature Management System You Can Buy!
• ExpressChill with 3 settings - Chills beverages quickly. Select 15, 30 or 45 minute with easy
one button selection
• Electronic Controls with Actual Temperature Display - Eliminates guesswork in setting
refrigerator temperatures
• Tall LightTouch! Dispenser with Child Lock - Delivers chilled water, cubed ice or crushed ice at
the slightest touch. A child lockout option keeps the dispenser off limits to little hands
• Slide ‘n Store
providing easy loading and unloading
• Quick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool™ Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings
• Integrated Ice
to bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
™
Full-Extension Freezer Baskets - Extends 12” to 16” beyond the cabinet,
™
System - Frees up valuable freezer space. It tilts down, providing easy access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Model PSC23MSTSS - Stainless steel
Specification Revised 10/06
210205
