PSA9120SP
GE Profile Series Over-the-Range Oven with Advantium® Technology

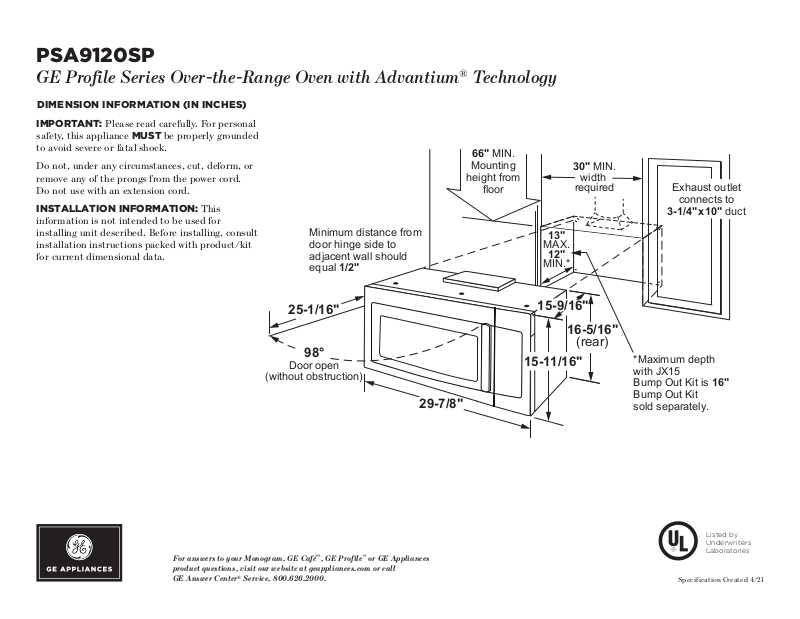

DIMENSION INFORMATION (IN INCHES)
IMPORTANT: Please read carefully. For personal
safety, this appliance MUST be properly grounded
to avoid severe or fatal shock.
Do not, under any circumstances, cut, deform, or
remove any of the prongs from the power cord.
Do not use with an extension cord.
Installation Information: This
information is not intended to be used for
installing unit described. Before installing, consult
installation instructions packed with product/kit
for current dimensional data.
Minimum distance from
door hinge side to
adjacent wall should
equal 1/2"
66" MIN.
Mounting
height from
floor
13"
MAX.
12"
MIN.*
30" MIN.
width
required
Exhaust outlet
connects to
3-1/4"x10" duct
25-1/16"
98°
Door open
(without obstruction)
29-7/8"
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
15-9/16"
16-5/16"
15-11/16"
(rear)
*Maximum depth
with JX15
Bump Out Kit is 16"
Bump Out Kit
sold separately.
Listed by
Underwriters
Laboratories
Speci fication Created 4/21
Page 2
PSA9120SP
GE Profile Series Over-the-Range Oven with Advantium® Technology
DIMENSION INFORMATION (IN INCHES)
HOOD EXHAUST DUCT
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following
carefully.
EXHAUST CONNECTION:
The hood exhaust has been designed to mate with a standard 3-1/4" x 10"
rectangular duct.
If a round duct is required, a rectangular-to-round transition adaptor must be
used. Do not use less than a 6” diameter duct.
REAR EXHAUST:
If a rear or horizontal exhaust is to be used, care should be taken to align
exhaust with the space between studs, or wall should be prepared at the time it
is constructed by leaving enough space between the wall studs to accommodate
exhaust.
FILTER KIT ACCESSORY
Filter Kit
JX81D–Recirculating
Charcoal Filter Kit
To be used when
the Advantium oven
Grille
cannot be vented
to the outside.
MAXIMUM DUCT LENGTH:
For satisfactory air movement, the total duct length of 3-1/4" x
10" rectangular or 6” diameter round duct should not exceed 140
equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc.,
present additional resistance to airflow and are equivalent to a
section of straight duct which is longer than their actual physical
size. When calculating the total duct length, add the equivalent
length of all transitions and adaptors plus the length of all straight
duct sections. The chart below shows the approximate feet of
equivalent length of some typical ducts.
DUCT EQUIVALENT
A. Rectangular-To-Round 5 Ft.
Transition Adaptor
B. Wall Cap 40 Ft.
C. 90° Round Elbow 10 Ft.
D. 45° Round Elbow 5 Ft.
E. 90° Rectangular Elbow 25 Ft.
F. 45° Rectangular Elbow 5 Ft.
G. Roof Cap 24 Ft.
Listed by
Underwriters
Laboratories
Speci fication Created 4/21
Page 3

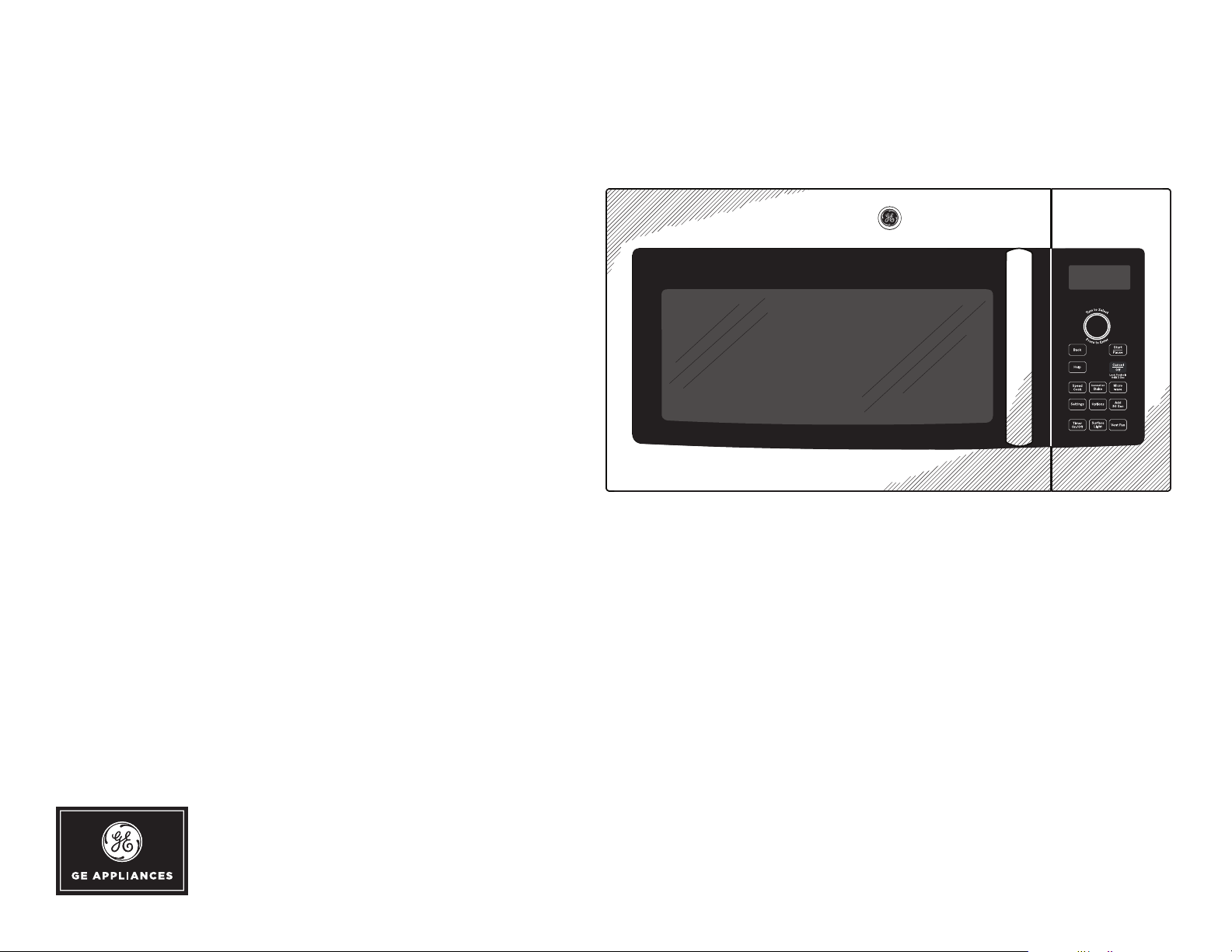

PSA9120SP
GE Profile Series Over-the-Range Oven with Advantium® Technology
FEATURES AND BENEFITS
Speedcook oven (120) – Enjoy oven-quality results two to
four times faster than a conventional oven
Multiple cooking functions – Expand your cooking versatility
with an all in one oven
Halogen Heat – Skip the preheating with nearly
instantaneous halogen heat
Over 175 preprogrammed menu selections – Preprogrammed
selections make meals easy
Custom Recipe Saver – Conveniently store cooking
instructions for up to 30 different recipes
Backlit controls – Controls are easy to read by displaying
highly visible LCD readouts
Three-Speed, 300-CFM Venting System – Quickly moves
smoke and steam up from the cooktop
Model PSA9120SPSS – Stainless steel
Lock Controls
Hold 3 Sec
6:30PM
Set
Clock
Speci fication Created 4/21
