Page 1

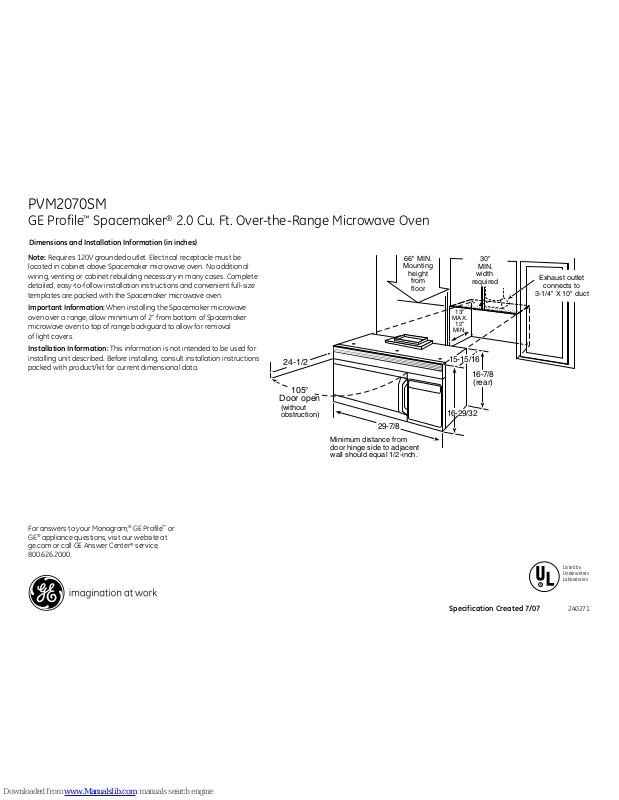

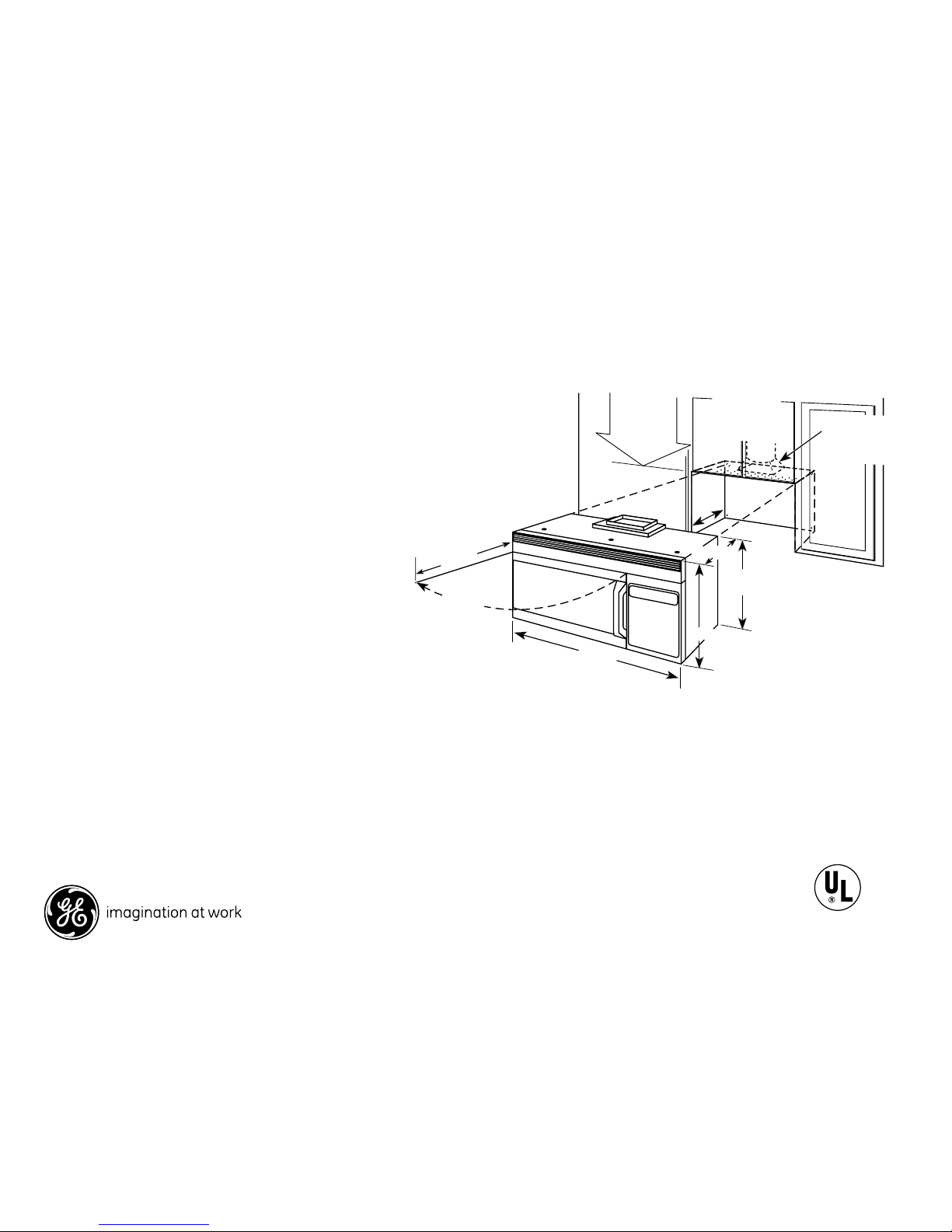

Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
240271
Specification Created 7/07
66" MIN.
Mounting
height
from
floor
30"
MIN.
width
required
Exhaust outlet
connects to
3-1/4" X 10" duct
16-7/8
(rear)
105°
Door open
15-15/16
24-1/2
16-29/32
29-7/8
Dimensions (in inches)
Over-the-Range Microwave Oven
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
(without
obstruction)
13"
MAX.
12"
MIN.
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.
Important Information: When installing the Spacemaker microwave
oven over a range, allow minimum of 2” from bottom of Spacemaker
microwave oven to top of range backguard to allow for removal
of light covers.
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
PVM2070SM
GE Profile™ Spacemaker® 2.0 Cu. Ft. Over-the-Range Microwave Oven
Page 2
Listed by
Underwriters
Laboratories

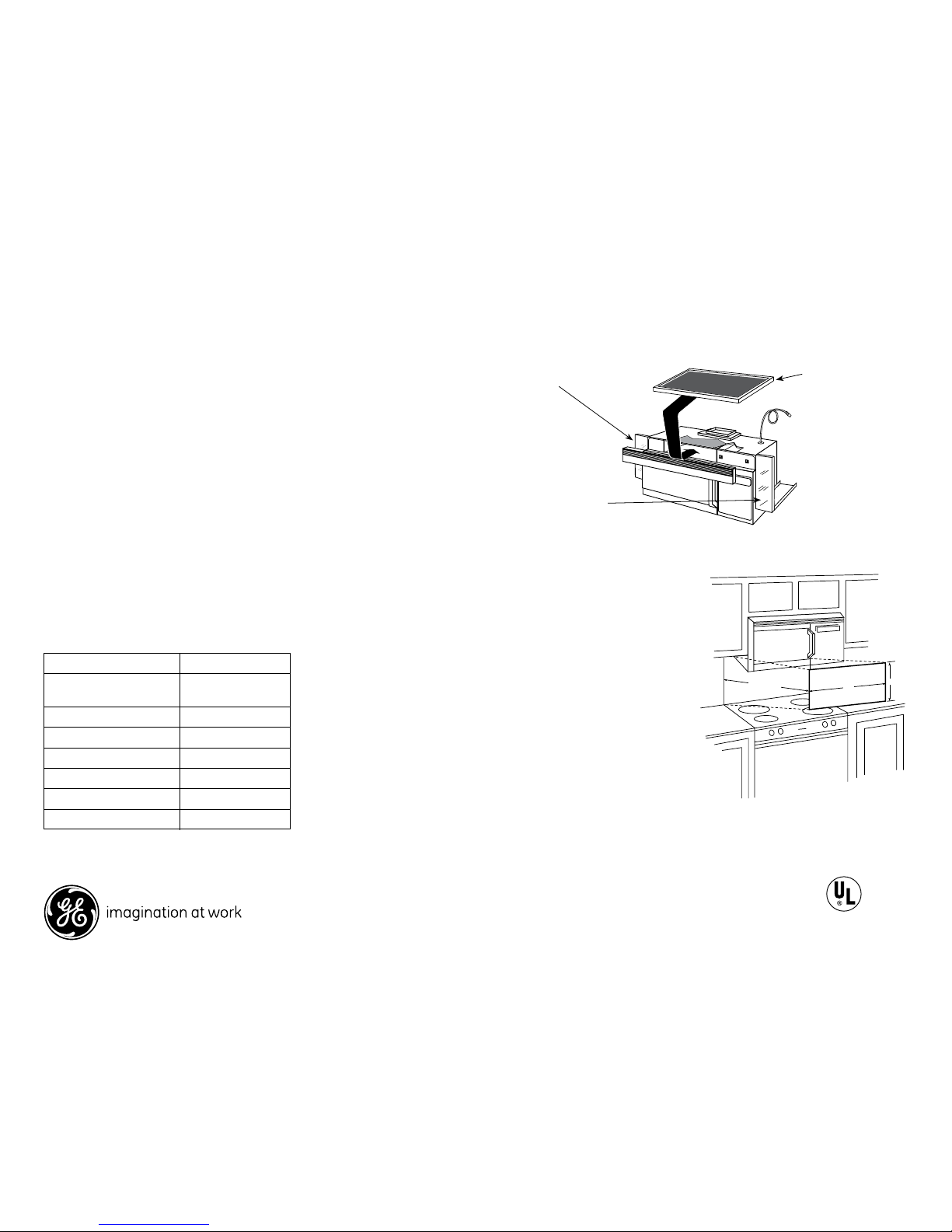

Optional Accessories (Available at additional cost)
240271
Specification Created 7/07
Filler Panel Kits
JX40CT-Bisque
JX41–Black
JX40WH–White
When replacing a 36" or
42" range hood, this kit fills
in the additional width to
provide a custom built-in
appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two
3"-wide filler panels. Two kits are
needed for a 42" opening.
Filter Kits
JX81H–Recirculating
Charcoal Filter Kit
To be used when
the Spacemaker
microwave oven
cannot be vented
to the outside.
Duct Equivalent Feet
A. Rectangular-To-round
Transition Adaptor 5 ft.
B. Wall Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft .
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
Hood Exhaust Duct: Outside ventilation requires a HOOD EXHAUST DUCT. Read the
following carefully.
Exhaust Connection: The hood exhaust has been designed to mate with a standard
3-1/4" x 10" rectangular duct. If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than a 6" diameter duct.
Rear Exhaust: If a rear or horizontal exhaust is to be used, care should be taken to
align exhaust with space between studs, or wall should be prepared at the time it
is constructed by leaving enough space between the wall studs to accommodate
exhaust.
Maximum Duct Length: For satisfactory air movement, the total duct length of 3-1/4"
x 10" rectangular or 6" diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS: etc., present additional resistance to
airflow and are equivalent to a section of straight duct which is longer than their
actual physical size. When calculating the total duct length, add the equivalent length
of all transitions and adaptors plus the lengths of all straight duct sections. The chart
below shows the approximate feet of equivalent length of some typical ducts.
PVM2070SM
GE Profile™ Spacemaker® 2.0 Cu. Ft. Over-the-Range Microwave Oven
Decorative Panel Kits
19
30
3/8
depth
JX22SS - Stainless Steel Decorative Panel
Kit When replacing a Hi/Low range with a
microwave/convection oven or Spacemaker
over a range model, this panel kit fills in the
area between the microwave and range left by
the H-Low model.
Page 3
Specification Created 7/07
240271

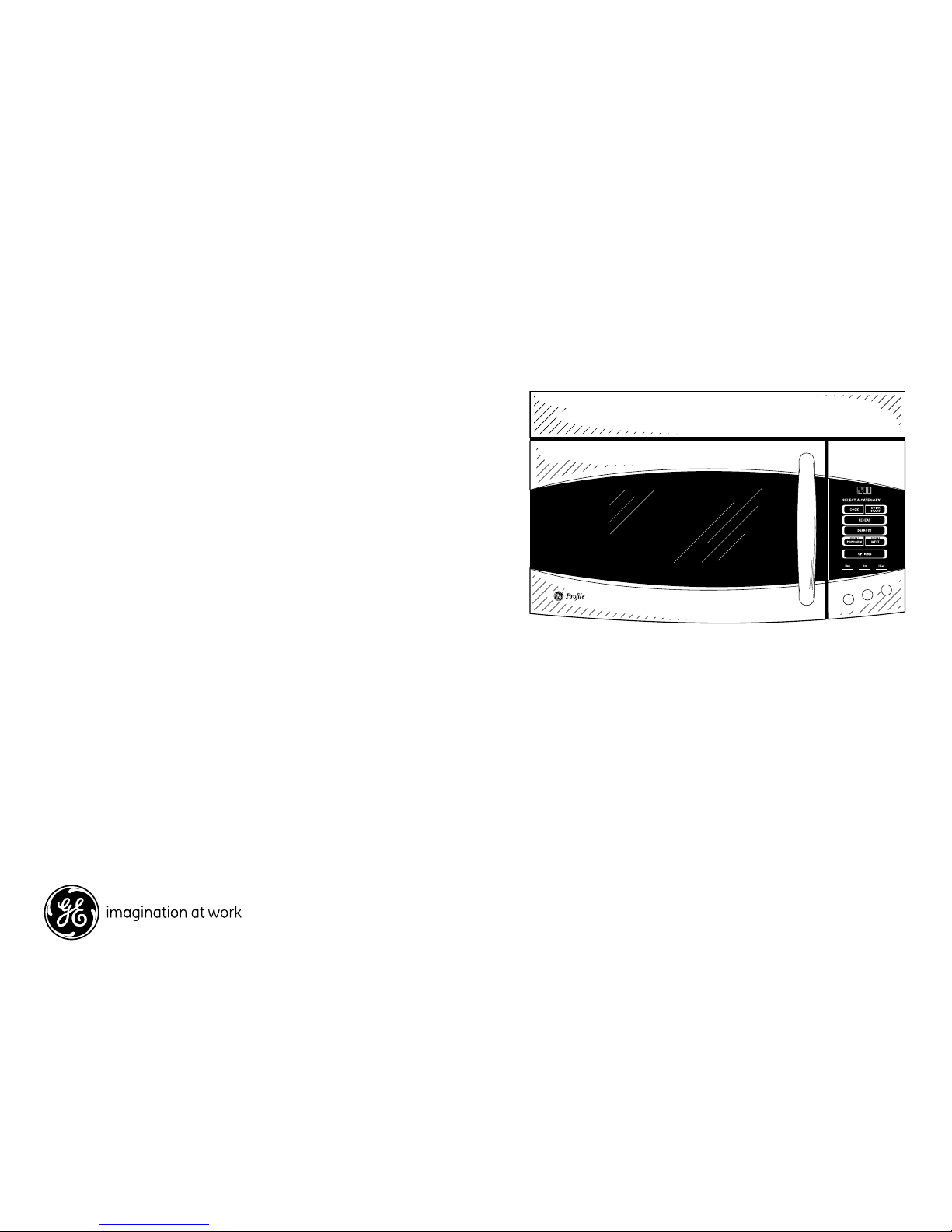

Features and Benefits
• 2.0 Cu. Ft. Capacity - 1100 Watts (IEC-705 test procedure)
• Dual-Distribution Cooking System - Circulates microwaves from the
top and side of the oven for even heating and defrosting of food
• EasyGuide
™
Menu System - Automatically leads you through each
step of the cooking process
• Soften Feature - Exceptional for heavy foods like butter and cream
cheese, as well as frozen ice cream
• 1-lb. Quick Defrost - Evenly defrosts a pound meat, poultry or fish in
a fraction of the usual time, without precooking or turning the food
• Full-Width Active Hidden Vent - Out of sight when not in use, the
oven vent hides behind the sleek top panel for a sophisticated,
easy-to-clean look
• 14-1/4" Recessed Turntable - Large enough to handle 5-qt . casse
-
role dishes and can easily be removed for cleaning
• Four-Speed with Boost 315-CFM Venting - Allows you to adjust the
ventilation levels according to your needs
• Two Removable Oven Racks - Make room for up to six plates or
three 9" x 13" casserole dishes
• Model PVM2070SMSS – Stainless steel
Vent
Boost
Light
PVM2070SM
GE Profile™ Spacemaker® 2.0 Cu. Ft. Over-the-Range Microwave Oven
