GE Profile PSS26PSW, Profile PSS26PSWSS Datasheet
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin. To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 2/07
210352

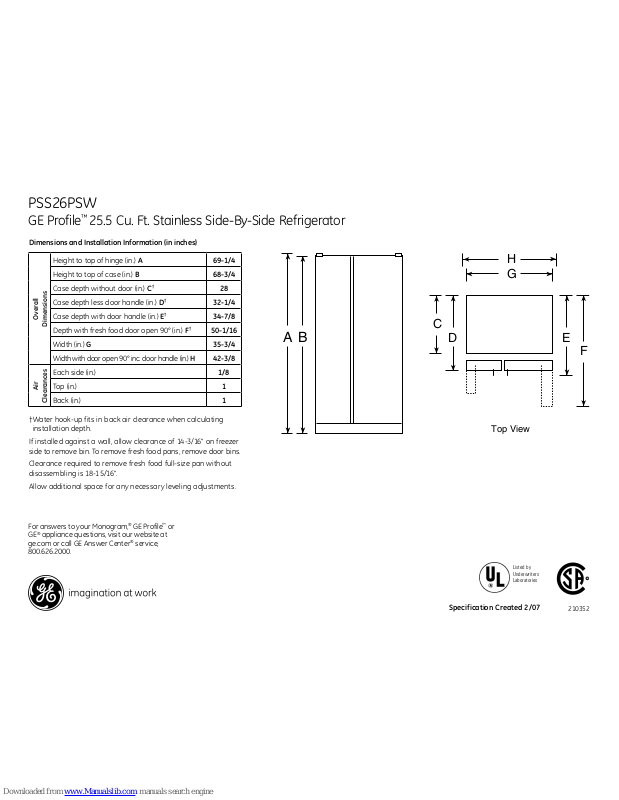

Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.)
B 68-3/4
Case depth without door (in.)
C
†
28
Case depth less door handle (in.)
D
†
32-1/4
Case depth with door handle (in.)
E
†
34-7/8
Depth with fresh food door open 90° (in.)
F
†
50-1/16
Width (in.)
G 35-3/4
Width with door open 90° inc. door handle (in.)
H 42-3/8
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1
PSS26PSW
GE Profile™ 25.5 Cu. Ft. Stainless Side-By-Side Refrigerator
Specification Created 2/07
210352
Features and Benefits
• Stainless Steel with Hidden Hinge and Top Bevel - Provides a striking finish to accentuate kitchen
décor that includes contoured doors with a concealed hinge
• ClimateKeeper2
™
System - Keeps food garden fresh longer, while protecting ice from odor transfer,
with its unique dual-evaporator system
• Color LCD Controls with Touch Screen - Makes it easy to control all the functions of the refrigerator
with just a touch
• Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser and
pours water in accurate increments or up to 100 ounces per minute
• QuickFreeze Setting - Provides faster, fresher freezing to maintain the flavor and quality of meats
• Electronic Beverage Center - Keeps beverages and treats icy cold and easily accessible
• CustomCool
™
Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
• Slide 'n Store
™
Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing easy
loading and unloading
• Quick Ice
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool
™
Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings
• Integrated Ice
™
System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
™
Door Bins - Hold gallon-size containers with style and ease
• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put
• GE Water Plus Filtration System - Delivers clean, great-tasting water and ice through the LightTouch!
Dispenser with indicator light
• Model PSS26PSWSS - Stainless steel
PSS26PSW
GE Profile™ 25.5 Cu. Ft. Stainless Side-By-Side Refrigerator
