For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Overall
Dimensions
Height to top of hinge (in.) A 70-3/8*
Height to top of case (in.) B
68-3/4
Case depth without door (in.) C
†
23-7/8
Case depth less door handle (in.) D
†
27-1/8
Case depth with door handle (in.) E
†
29-5/8
Depth with fresh food door open 90° (in.) F
†
46
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41-3/8
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1
* Height to top of door trim (in.): 70-1/4
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on
freezer side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
Specification Revised 5/08

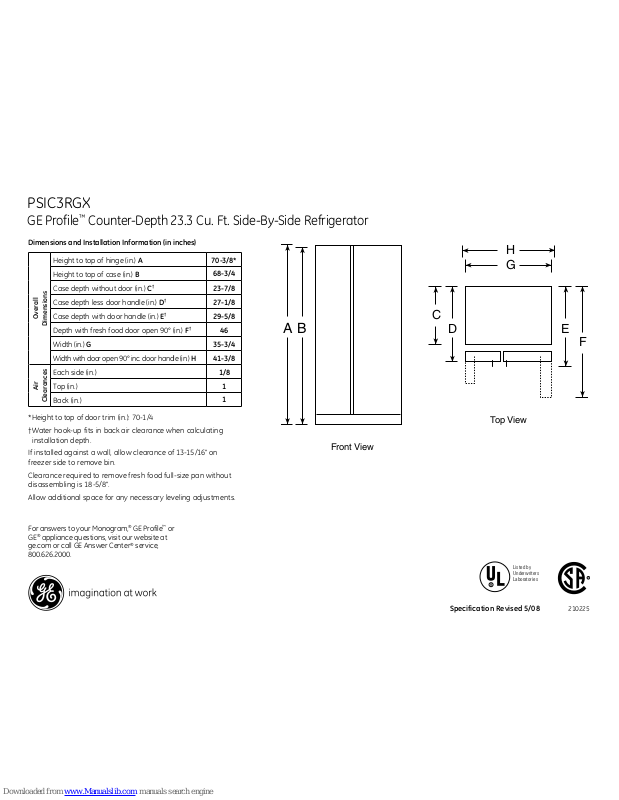

Dimensions and Installation Information (in inches)
210225
A
Front View
Top View
G
D
C
F
B
E
H
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Page 2

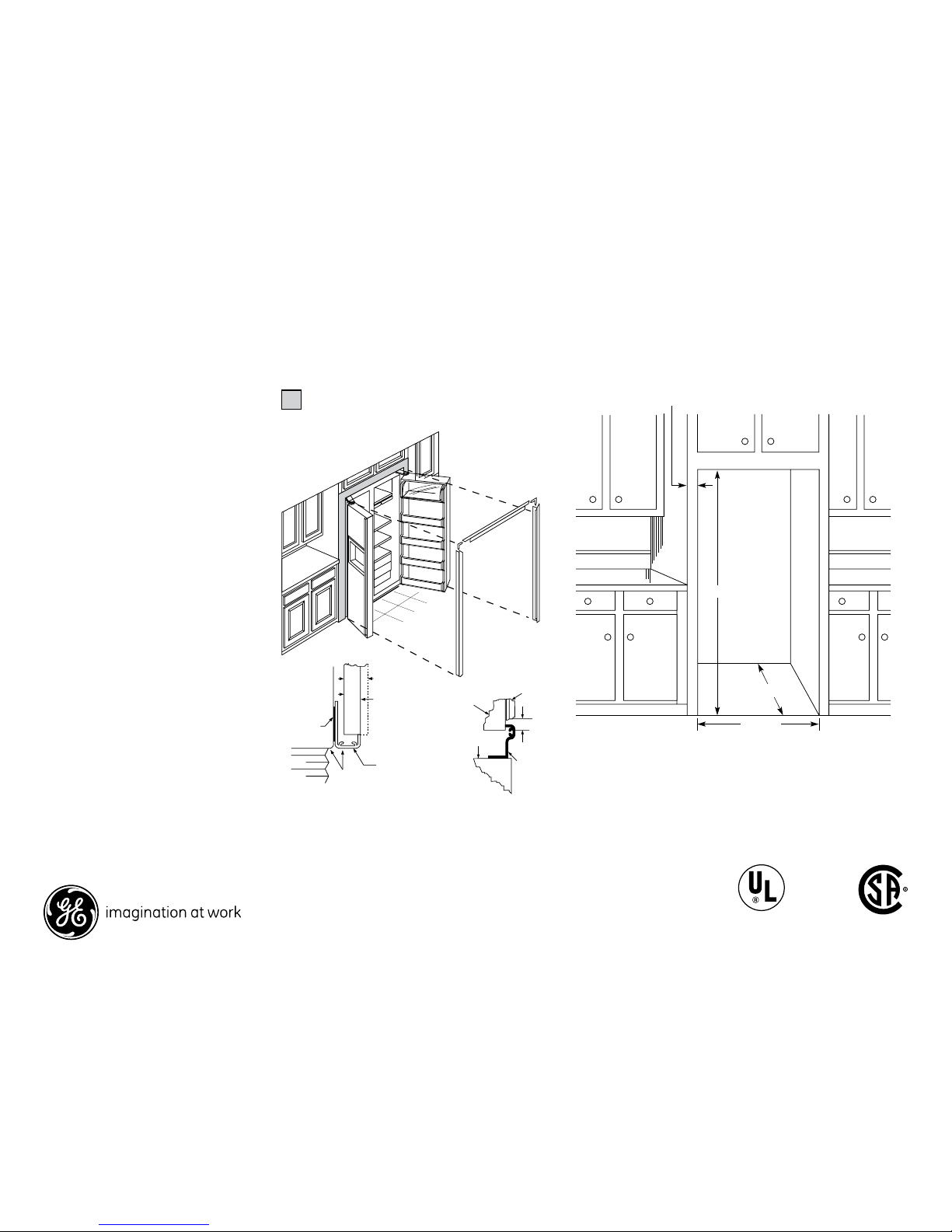

Rough-In Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
Listed by
Underwriters
Laboratories
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to be used or anticipated, see collar
trim installation for different rough-in dimensions
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from the
finished floor to top of opening (or the underside of the overhead
cabinets). For Models with Trim Kit: If frameless style cabinets
are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4" (70-1/4") to height of opening for 23
cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for
additional clearance between the cabinet doors and the top of
refrigerator trim when the cabinet doors are in open position.
† Model PSDW3YGX is 71-3/4"
210225
Specification Revised 5/08
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Page 3
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
210225
Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the
most integrated look, the cabinet or soffit
above the refrigerator should extend out
to the same depth as the side panels. The
refrigerator opening must have minimum
dimensions of 70" high x 36-1/8" wide x
24-1/2" deep as shown at right. If there is
an overhead cabinet, allow 1" for cabinet
door clearance with the top trim piece so
the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels are
used, then side trim and panel will be even.
If 3/4" side panels are used, then some of
the side panel will extend beyond the trim
and must be finished.
IMPORTANT: Before finalizing specifications
for your GE Profile Counter-Depth
Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for
refrigerator installation with collar
• Be sure to allow for 1/2" or 3/4" side
panels in addition to the 36-1/8"
minimum.
Typical Installation
Shaded areas represent front surfaces of side panels and
overhead cabinet or soffit that contacts trim.
70"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 70" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/4") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Rough-In Dimensions and Installation Information (in inches)
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Side trim must be installed
flush with the gasket contact
surface on the case.
Refrigerator
Case
Side TrimDoor Gasket
Overhead
Cabinet
Cabinet
Door
Top Trim
Case
1"
Specification Revised 5/08
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Page 4
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Order your own custom wood panels to match cabinetry
or other decor.
Panels up to 1/4" thick will fit door frame with no special
preparation. Add filler behind material thinner than 1/4"
for proper fit.
Weight Limits: Total weight of panels (i.e., both freezer
panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.
NOTE: Panels up to 3/4” will require special routing area
around handles. Dimensions may vary depending on
depth of panel.
IMPORTANT: Before finalizing specifications for your
GE Profile Counter-Depth Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator
installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition
to the 36-1/8" minimum.
210225

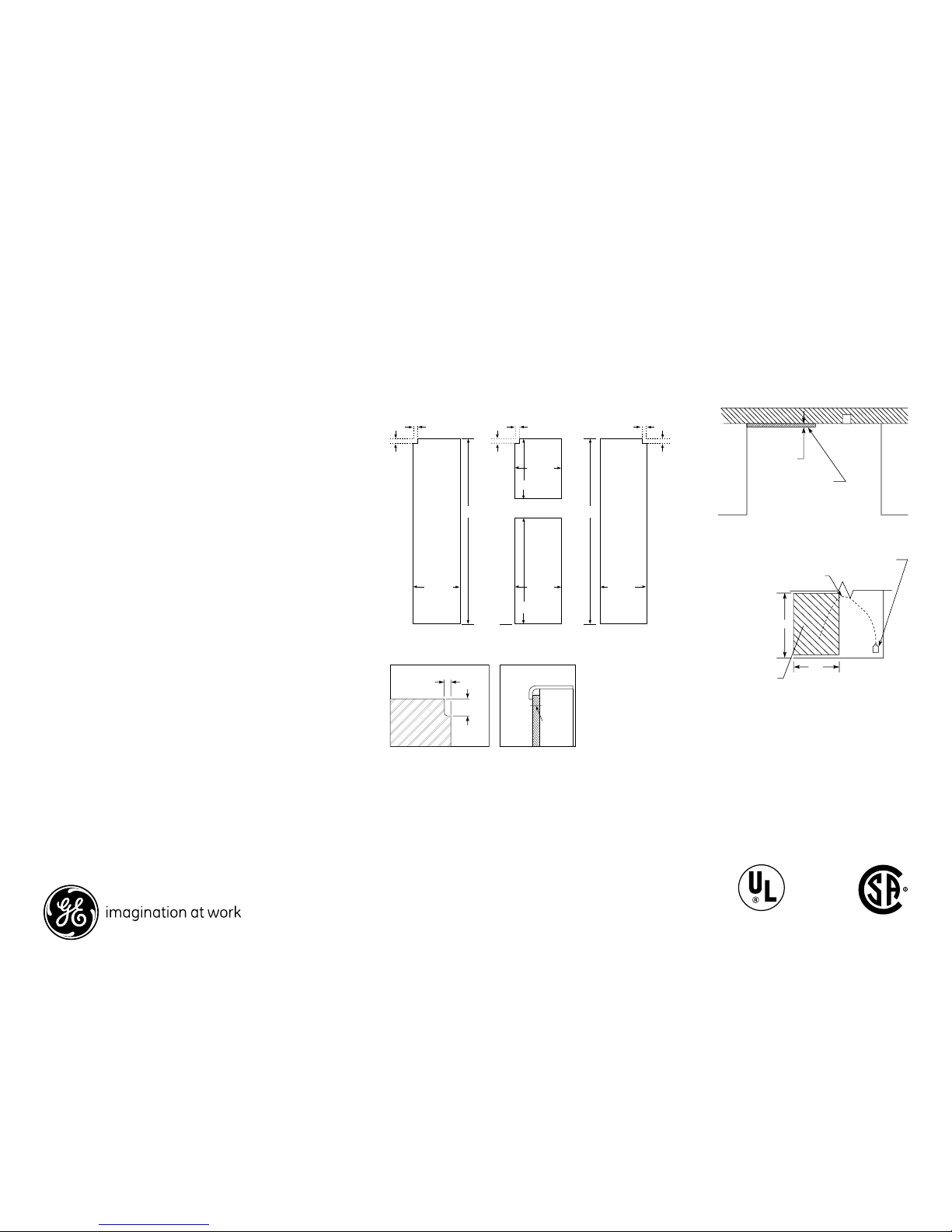

Door Panel Dimensions and Installation Information (in inches)
Installation of Water Outlets
Freezer Panel
without Dispenser
Freezer Panel
with Dispenser
Fresh Food
Panel
(Fresh Food panel shown)
Notch required at top
corner as noted.
Detail C
Freezer Panel
Without Dispenser
Freezer Panel
With Dispenser
Fresh Food
Panel
Cut
out
1/8 1/8
14-15/32 14-15/32
14-15/32
33-5/8
17-7/8
19-15/32
5/16
Cut
out
Cut
out
1/8
5/16 5/16
FRONT
67-9/32 67-9/32
FRONT FRONT
Alternate
water
line location
through floor
1/2"
Top View
Alternate
water
line location
through floor
1/2"
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
Top View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
5/16"
1/8"
1/4" Max.
Panels 1/4" thick
or less
Specification Revised 5/08
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Page 5
Lock
Controls
Freezer Temp
Fridge Temp
On/Off
Set
Features
0°F is Recommended for Freezer
37°F is Recommended for Fridge
Water
FREEZER
F
REFRIGERATOR
F
Door Alarm On
TurboCool On
Replace Water Filter
Crushed Cubed Light
210225
Features and Benefits
• Counter-Depth Design - Offers a built-in look without the built-in expense
• ClimateKeeper
™
Temperature Management System - Best Temperature Management System You
Can Buy
• Quick Ice
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool
™
Setting - Cools the refrigerator quickly after frequent door openings
• Integrated Ice
™
System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
™
Door Bins - Hold gallon-size containers with style and ease
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out shelves
make clean up quick and easy
• GE Water Plus Filtration System - Delivers clean, great-tasting water and ice through the LightTouch!
Dispenser with indicator light
• FrostGuard
™
Technology - Protects frozen items from freezer burn by monitoring freezer door
openings and defrosting only when needed
• Premium Quiet Design - GE's most advanced sound control system
• Model PSIC3RGXWV - White on white
• Model PSIC3RGXCV - Bisque on bisque
• Model PSIC3RGXBV - Black on black
Specification Revised 5/08
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
