GE Profile PSHF6VGXBB, Profile PSHF6VGX, Profile PSHF6VGXWW Datasheet
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin. To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Revised 5/08
210372

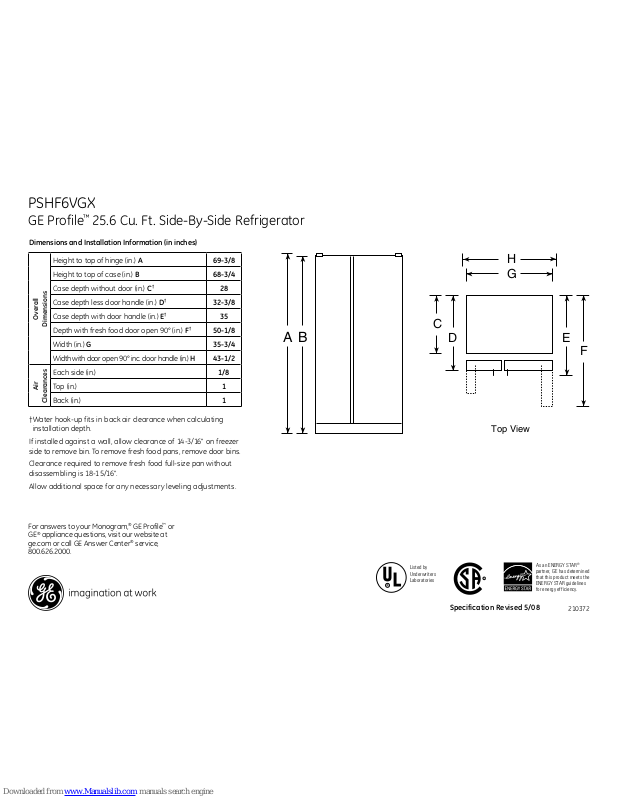

Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 69-3/8
Height to top of case (in.)
B
68-3/4
Case depth without door (in.)
C
†
28
Case depth less door handle (in.)
D
†
32-3/8
Case depth with door handle (in.)
E
†
35
Depth with fresh food door open 90° (in.)
F
†
50-1/8
Width (in.)
G 35-3/4
Width with door open 90° inc. door handle (in.)
H 43-1/2
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1
PSHF6VGX
GE Profile™ 25.6 Cu. Ft. Side-By-Side Refrigerator
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
guidelines
for energy efficiency.
Specification Revised 5/08
210372
Features and Benefits
• High-Gloss Finish with Top Bevel - Offers a smooth surface with contoured doors with a
concealed hinge
• ClimateKeeper
™
Temperature Management System - Best Temperature Management System
You Can Buy
• Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser and
pours water in accurate increments or up to 100 ounces per minute
• CustomCool
™
Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
• Slide 'n Store
™
Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing easy
loading and unloading
• Quick Ice
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool
™
Setting - Cools the refrigerator quickly after frequent door openings
• Integrated Ice
™
System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
™
Door Bins - Hold gallon-size containers with style and ease
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility
and to free up valuable shelf space
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out shelves
make clean up quick and easy
• GE Water Filtration System - Delivers clean great-tasting water and ice through the
LightTouch! Dispenser
• Model PSHF6VGXWW - White on white
• Model PSHF6VGXBB - Black on black
Water
Crushed
Cubed
Light
Door Alarm
On
TurboCool
On
Replace Door
Filter
EXPRESSTHAW
PSHF6VGX
GE Profile™ 25.6 Cu. Ft. Side-By-Side Refrigerator
