GE Profile PSF26PGWWW, Profile PSF26PGW, Profile PSF26PGWBB Datasheet

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin. To remove fresh food pans, remove door bins.

Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".

Allow additional space for any necessary leveling adjustments.

"94 SxS Refer

A

Top View

G

D

C

F

B

E

H

Listed by
Underwriters
Laboratories

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Specification Created 2/07

210356

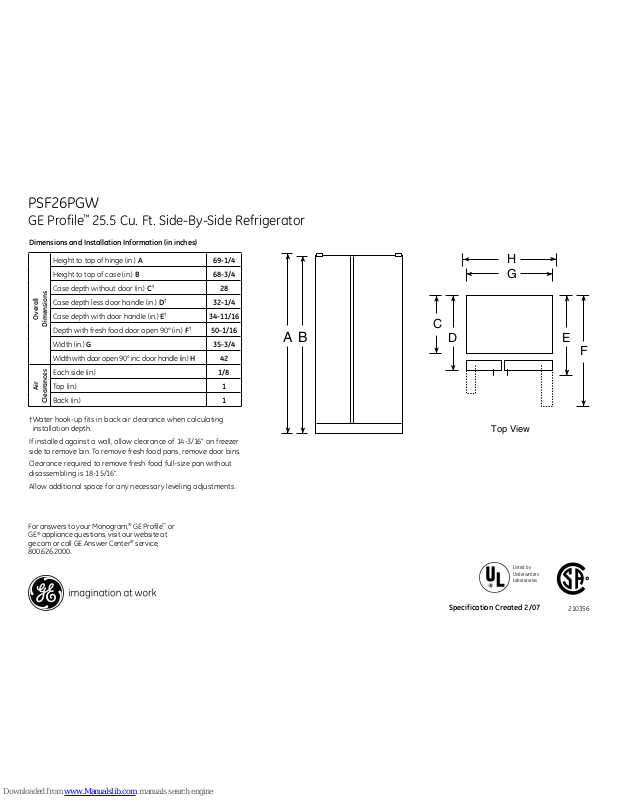

Dimensions and Installation Information (in inches)

Overall

Dimensions

Height to top of hinge (in.) A 69-1/4

Height to top of case (in.)

B 68-3/4

Case depth without door (in.)

C

†

28

Case depth less door handle (in.)

D

†

32-1/4

Case depth with door handle (in.)

E

†

34-11/16

Depth with fresh food door open 90° (in.)

F

†

50-1/16

Width (in.)

G 35-3/4

Width with door open 90° inc. door handle (in.)

H 42

Air

Clearances

Each side (in.)

1/8

Top (in.)

1

Back (in.)

1

PSF26PGW

GE Profile™ 25.5 Cu. Ft. Side-By-Side Refrigerator

Specification Created 2/07

210356

Features and Benefits

• High-Gloss Finish with Hidden Hinge and Top Bevel - Offers a smooth surface with contoured doors
with a concealed hinge

• ClimateKeeper2

™

System - Keeps food garden fresh longer, while protecting ice from odor transfer,

with its unique dual-evaporator system

• Color LCD Controls with Touch Screen - Makes it easy to control all the functions of the refrigerator
with just a touch

• Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser and
pours water in accurate increments or up to 100 ounces per minute

• QuickFreeze Setting - Provides faster, fresher freezing to maintain the flavor and quality of meats

• Electronic Beverage Center - Keeps beverages and treats icy cold and easily accessible

• CustomCool

™

Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer

• Slide 'n Store

™

Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing easy

loading and unloading

• Quick Ice

™

Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool

™

Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings

• Integrated Ice

™

System - Frees up valuable freezer space; It tilts down, providing easy access

to bulk ice

• Tilt-Out Freezer Door Bins - Move forward for convenient access

• Integrated Shelf Support System - Provides strong, yet flexible support

• Adjustable ClearLook

™

Door Bins - Hold gallon-size containers with style and ease

• Model PSF26PGWWW - White on white

• Model PSF26PGWBB - Black on black

PSF26PGW

GE Profile™ 25.5 Cu. Ft. Side-By-Side Refrigerator
