For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.

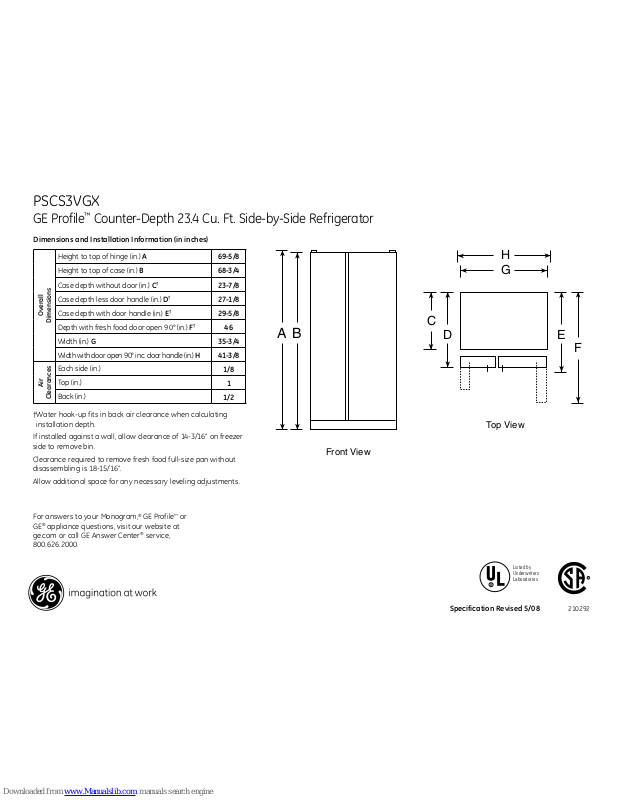

Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B
68-3/4
Case depth without door (in.) C
†
23-7/8
Case depth less door handle (in.) D
†
27-1/8
Case depth with door handle (in.) E
†
29-5/8
Depth with fresh food door open 90° (in.) F
†
46
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41-3/8
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1/2
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
"94 SxS Refer
A
Front View
Top View
G
D
C
F
B
E
H
PSCS3VGX
GE Profile™ Counter-Depth 23.4 Cu. Ft. Side-by-Side Refrigerator
Specification Revised 5/08
210292
Listed by
Underwriters
Laboratories
Page 2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from
the finished floor to top of opening (or the underside of the
overhead cabinets). For Models with Trim Kit: If frameless style
cabinets are planned for above the refrigerator, you may need
to consider adding a maximum of 1/4" (70-1/4") to height of
opening for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft.
models to allow for additional clearance between the cabinet
doors and the top of refrigerator trim when the cabinet doors
are in open position.
†Model PSDW3YGX is 71-3/4"
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
PSCS3VGX
GE Profile™ Counter-Depth 23.4 Cu. Ft. Side-by-Side Refrigerator
Specification Revised 5/08
210292
Listed by
Underwriters
Laboratories
Dimensions and Installation Information (in inches)
Page 3
OUNCE CUP
PSCS3VGX
GE Profile™ Counter-Depth 23.4 Cu. Ft. Side-by-Side Refrigerator
Features and Benefits
• Counter-Depth Design - Offers a built-in look without the built-in expense
• Stainless Steel - Provides stainless steel doors and side panels for a truly dramatic look
• ClimateKeeper
™
Temperature Management System - Best Temperature Management System
You Can Buy
• Integrated Dispenser with LED Lighting and PreciseFill - Illuminates the dispenser and pours
water in accurate increments
• CustomCool
™
Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
• Slide 'n Store
™
Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet,
providing easy loading and unloading
• Quick Ice
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool
™
Setting - Cools the refrigerator quickly after frequent door openings
• Integrated Ice
™
System - Frees up valuable freezer space; It tilts down, providing easy access
to bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
™
Door Bins - Hold gallon-size containers with style and ease
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase
flexibility and to free up valuable shelf space
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out
shelves make clean up quick and easy
• GE Water Filtration System - Delivers clean great-tasting water and ice through the
LightTouch! Dispenser
• Model PSCS3VGXSS - Stainless steel
