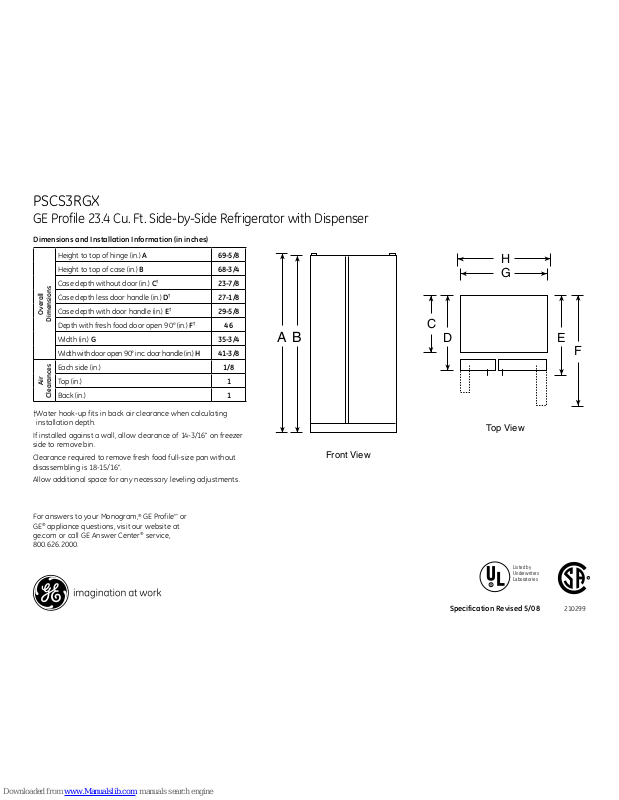

Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B
68-3/4
Case depth without door (in.) C
†
23-7/8
Case depth less door handle (in.) D
†
27-1/8
Case depth with door handle (in.) E
†
29-5/8
Depth with fresh food door open 90° (in.) F
†
46
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41-3/8
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
"94 SxS Refer
A
Front View
Top View
G
D
C
F
B
E
H
PSCS3RGX
GE Profile 23.4 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Specification Revised 5/08
210299
Listed by
Underwriters
Laboratories
Page 2
Rough-In Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
PSCS3RGX
GE Profile 23.4 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Specification Revised 5/08
Listed by
Underwriters
Laboratories
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from
the finished floor to top of opening (or the underside of the
overhead cabinets). For Models with Trim Kit: If frameless style
cabinets are planned for above the refrigerator, you may need
to consider adding a maximum of 1/4" (70-1/4") to height of
opening for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft.
models to allow for additional clearance between the cabinet
doors and the top of refrigerator trim when the cabinet doors
are in open position.
†Model PSDW3YGX is 71-3/4"
210299
Page 3
Lock
Controls
Freezer Temp
Fridge Temp
On/Off
Set
Features
0°F is Recommended for Freezer
37°F is Recommended for Fridge
Water
FREEZER
F
REFRIGERATOR
F
Door Alarm On
TurboCool On
Replace Water Filter
Crushed Cubed Light
PSCS3RGX
GE Profile 23.4 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Features and Benefits
• Counter-Depth Design - Offers a built-in look without the built-in expense
• Stainless Steel - Provides stainless steel doors and side panels for a truly dramatic look
• Integrated Dispenser with LED Lighting & UltraFlow100 - Illuminates the dispenser and pours
up to 100 ounces of water per minute
• Quick Ice
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool
™
Setting - Cools the refrigerator quickly after frequent door openings
• Integrated Ice
™
System - Frees up valuable freezer space; It tilts down, providing easy access
to bulk ice
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
™
Door Bins - Hold gallon-size containers with style and ease
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase
flexibility and to free up valuable shelf space
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out
shelves make clean up quick and easy
• GE Water Filtration System - Delivers clean great-tasting water and ice through the
LightTouch! Dispenser
• FrostGuard
™
Technology - Protects frozen items from freezer burn by monitoring freezer door
openings and defrosting only when needed
• Premium Quiet Design - GE's most advanced sound control system
• Model PSCS3RGXSS - Stainless steel
Specification Revised 5/08
210299
