† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 12/07
210294

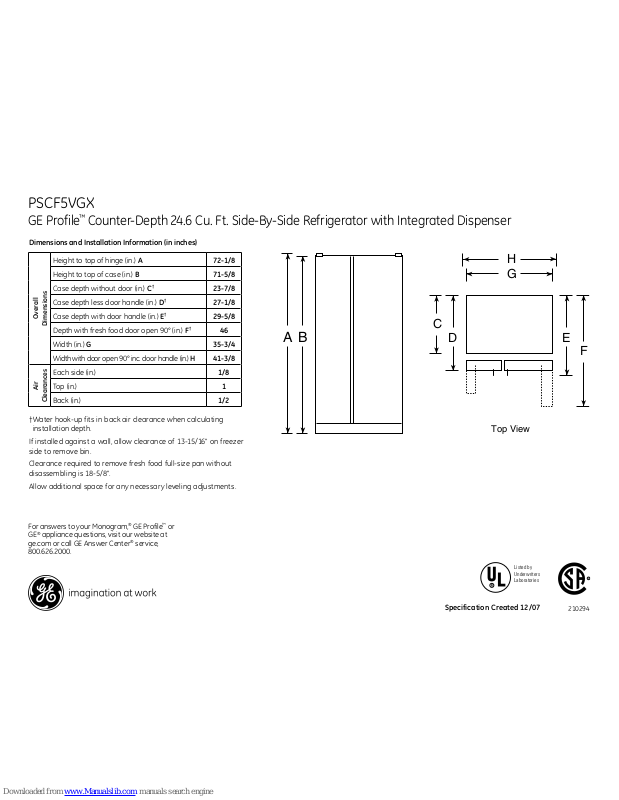

Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 72-1/8
Height to top of case (in.)
B 71-5/8
Case depth without door (in.)
C
†
23-7/8
Case depth less door handle (in.)
D
†
27-1/8
Case depth with door handle (in.)
E
†
29-5/8
Depth with fresh food door open 90° (in.)
F
†
46
Width (in.)
G 35-3/4
Width with door open 90° inc. door handle (in.)
H 41-3/8
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1/2
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
PSCF5VGX
GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
Page 2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from the
finished floor to top of opening (or the underside of the overhead
cabinets). For Models with Trim Kit: If frameless style cabinets
are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4" (70-1/4") to height of opening for 23
cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for
additional clearance between the cabinet doors and the top of
refrigerator trim when the cabinet doors are in open position.
† Model PSDW3YGX is 71-3/4"
Rough-In Dimensions and Installation Information (in inches)
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
Listed by
Underwriters
Laboratories
Specification Created 12/07
210294
PSCF5VGX
GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
Page 3
Features and Benefits
• htpeD-retnuoC Design - Offers a built-in look without the built-in expense
• ssolG-hgiH Finish - Provides sleek elegance with a smooth surface
r2• ClimateKeeper2
™
Electronic controls, multiple electronic sensors and a multi-flow air system
help keep foods fresh longer
eeeKetamilC
• detargetnI Dispenser with LED Lighting and PreciseFill - Illuminates the dispenser and pours water in
accurate increments
• looCmotsuC
™
Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
• edilS 'n Store
™
Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing easy
loading and unloading
• kciuQ Ice
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• looCobruT
™
Setting - Cools the refrigerator quickly after frequent door openings
• detargetnI Ice
™
System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice
• tuO-tliT Freezer Door Bins - Move forward for convenient access
• detargetnI Shelf Support System - Provides strong, yet flexible support
• elbatsujdA ClearLook
™
Door Bins - Hold gallon-size containers with style and ease
• rooD-eht-nI Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility
and to free up valuable shelf space
• elbatsujdA Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out shelves
make clean up quick and easy
• Model PSCF5VGXBB - Black on black
• Model PSCF5VGXWW - White on white
Water
Crushed
Cubed
Light
Door Alarm
On
TurboCool
On
Replace Door
Filter
EXPRESSTHAW
Specification Created 12/07
210294
PSCF5VGX
GE Profile™Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
*
