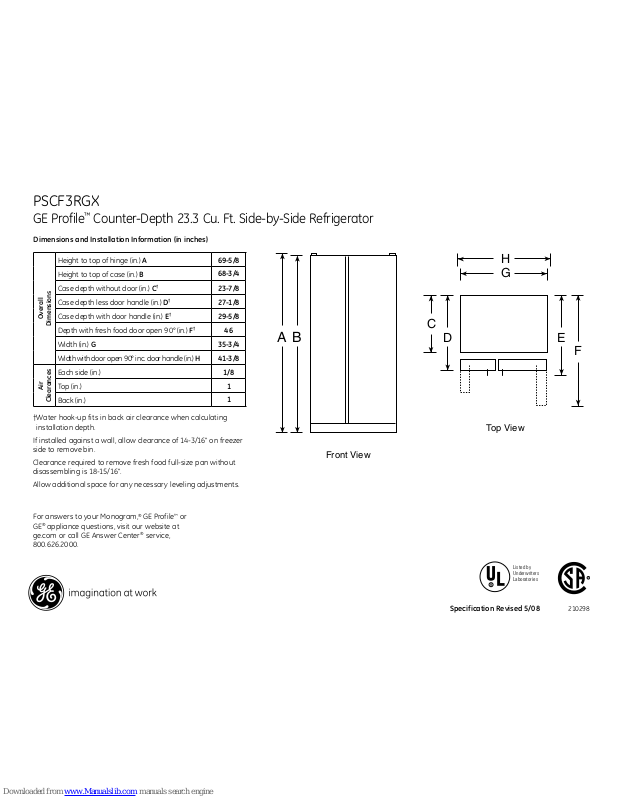

Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B
68-3/4
Case depth without door (in.) C
†
23-7/8
Case depth less door handle (in.) D
†
27-1/8
Case depth with door handle (in.) E
†
29-5/8
Depth with fresh food door open 90° (in.) F
†
46
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41-3/8
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
"94 SxS Refer
A
Front View
Top View
G
D
C
F
B
E
H
PSCF3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-by-Side Refrigerator
Specification Revised 5/08
210298
Listed by
Underwriters
Laboratories
Page 2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from
the finished floor to top of opening (or the underside of the
overhead cabinets). For Models with Trim Kit: If frameless style
cabinets are planned for above the refrigerator, you may need
to consider adding a maximum of 1/4" (70-1/4") to height of
opening for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft.
models to allow for additional clearance between the cabinet
doors and the top of refrigerator trim when the cabinet doors
are in open position.
†Model PSDW3YGX is 71-3/4"
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14 "
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
PSCF3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-by-Side Refrigerator
Specification Revised 5/08
210298
Listed by
Underwriters
Laboratories
Dimensions and Installation Information (in inches)
Page 3
PSCF3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-by-Side Refrigerator
Features and Benefits
• Counter-depth configuration - Counter-depth configuration makes it possible to have the look of a
built-in without the added expense
• High-gloss finish -Step up to a smooth look that stands out in any kitchen
• ClimateKeeper
™
system - Electronic controls, multiple electronic sensors and a multi-flow air system
help provide even cooling
• Integrated dispenser with LED lighting and UltraFlow100 - This bright dispenser pours up to 100
ounces of water per minute
• Integrated Ice
™
system - Designed to give you more room to store your favorite frozen foods
• Quick Ice
™
setting - Speed up your icemaker to keep up with your life
• TurboCool
™
setting - Restores proper temperature to the refrigerator after frequent door openings
• Integrated shelf support system - Strong shelf supports add a contemporary look
• Adjustable ClearLook
™
door bins - Store gallon containers with ease in the door and free up valuable
shelf space
• In-the-door beverage rack - Beverages are easy to grab when you’re on the go
• Adjustable, slide-out spillproof glass shelves - Adjustable shelves are designed to make clean up
quick and easy
• Tilt-out freezer door bins - Even when bins are filled to capacity, items are easy to remove
• Model PSCF3RGXWW - White on white
• Model PSCF3RGXCC - Bisque on bisque
• Model PSCF3RGXBB - Black on black
Specification Revised 5/08
210298
*
