Page 1
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 4/07
210218

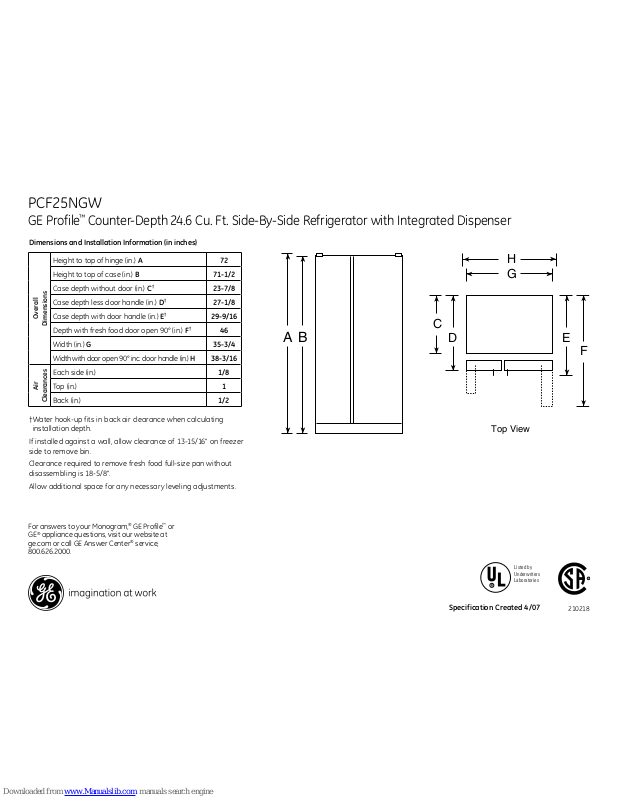

Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 72
Height to top of case (in.)
B 71-1/2
Case depth without door (in.)
C
†
23-7/8
Case depth less door handle (in.)
D
†
27-1/8
Case depth with door handle (in.)
E
†
29-9/16
Depth with fresh food door open 90° (in.)
F
†
46
Width (in.)
G 35-3/4
Width with door open 90° inc. door handle (in.)
H 38-3/16
Air
Clearances
Each side (in.)
1/8
Top (in.)
1
Back (in.)
1/2
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
PCF25NGW
GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
Page 2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
**The rough-in dimensions of 70-1/4"/72-1/4" are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening for 23 cu. ft. models and 1/8" (72-3/8") for
25 cu. ft. models to allow for additional clearance between the
cabinet doors and the top of refrigerator trim when the cabinet
doors are in open position.
Rough-In Dimensions and Installation Information (in inches)
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
Listed by
Underwriters
Laboratories
Specification Created 4/07
210218
PCF25NGW
GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
Page 3

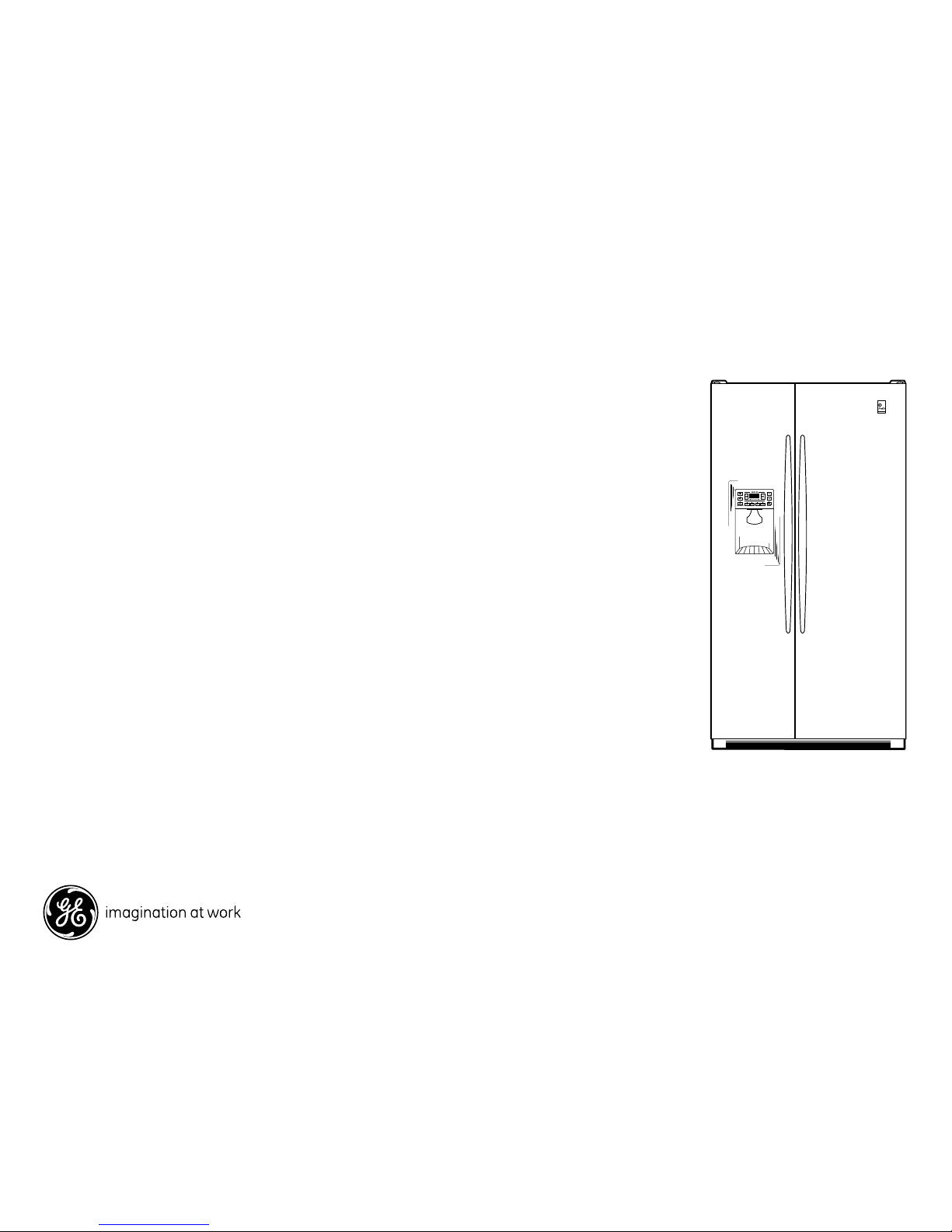

Features and Benefits
• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with
surrounding cabinetry and blending in with décor
• High-Gloss Finish - Provides sleek elegance with a smooth surface
• ClimateKeeper™ System - Best Temperature Management System That You Can Buy
• Integrated Dispenser with LED Lighting and PreciseFill - Illuminates the dispenser and pours
water in accurate increments
• CustomCool™ Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
• Slide 'n Store™ Freezer Basket - Offers easy access and flexible storage
• Quick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool™ Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings
• Integrated Ice™ System - Frees up valuable freezer space; It tilts down, providing easy access
to bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook™ Door Bins - Hold gallon-size containers with style and ease
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility
and to free up valuable shelf space
• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put
• GE Water Plus Filtration System - Delivers clean, great-tasting water and ice through
the LightTouch! Dispenser with indicator light
• Model PCF25NGWBB - Black on black
• Model PCF25NGWWW - White on white
OUNCE CUP
Specification Created 4/07
210218
PCF25NGW
GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
