GE Profile JV960SC Specification Sheet

TM

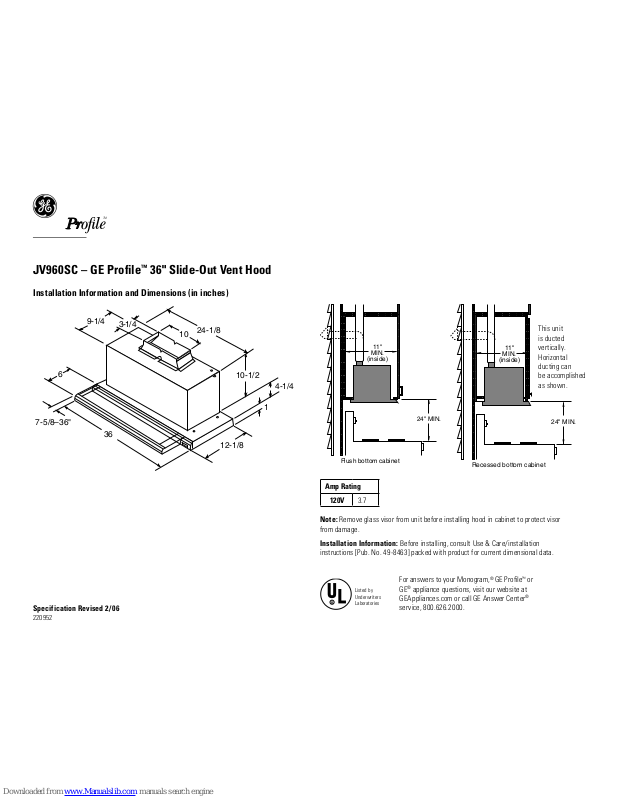

JV960SC – GE Profile™ 36" Slide-Out Vent Hood

Specification Revised 2/06

220952

Installation Information and Dimensions (in inches)

Note: Remove glass visor from unit before installing hood in cabinet to protect visor

from damage.

Installation Information: Before installing, consult Use & Care/installation
instructions [ Pub. No. 49-8463] packed with product for current dimensional data.

R

Listed by
Underwriters
Laboratories

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call GE Answer Center®
service, 800.626.2000.

Amp Rating

120V

3.7

12-1/8

10-1/2

24-1/8

9-1/4

6

36

1

3-1/4

10

Slide out hood

4-1/4

7-5/8–36"

11"

MIN.

(inside)

Flush bottom cabinet

24" MIN.

11"

MIN.

(inside)

Recessed bottom cabinet

24" MIN.

This unit
is ducted
vertically.
Horizontal
ducting can
be accomplished
as shown.

TM

JV960SC – GE Profile™ 36" Slide-Out Vent Hood

Specification Revised 2/06

220952

Features and Benefits

• 36" Vented Hood With Cooktop Light

• See-Through Glass Visor Slides In and Out

• 300 CFM Performance

• Variable Speed Fan Control

• Auto Heat Sensor

• Compact Housing Leaves Ample Shelf Space Behind Cabinet Doors

• Vertical Exhaust With 3-1/4" x 10" Rectangular Duct

• Sones Rating: Top Exhaust – 4.5

• Model JV960SC – Brushed Aluminum
