GE Profile JS968BF, Profile JS968KF, Profile JS968SF, Profile JS968TF Dimension Manual
TM

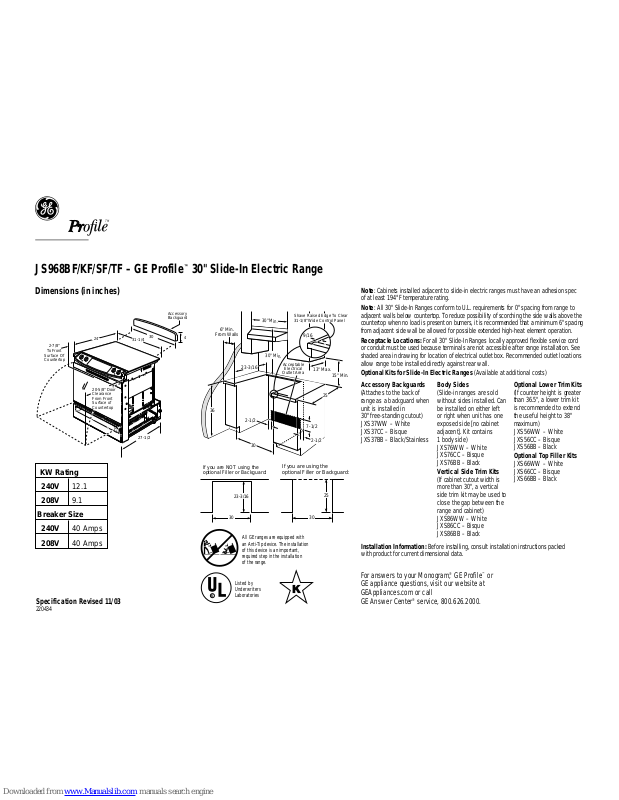

JS968BF/KF/SF/TF – GE Profile™30" Slide-In Electric Range
Dimensions (in inches)
Note: Cabinets installed adjacent to slide-in electric ranges must have an adhesion spec
of at least 194°F temperature rating.
Note: All 30" Slide-In Ranges conform to U.L. requirements for 0" spacing from range to
adjacent walls below countertop. To reduce possibility of scorching the side walls above the
countertop when no load is present on burners, it is recommended that a minimum 6" spacing
from adjacent side wall be allowed for possible extended high-heat element operation.
Receptacle Locations: For all 30" Slide-In Ranges locally approved flexible service cord
or conduit must be used because terminals are not accessible after range installation. See
shaded area in drawing for location of electrical outlet box. Recommended outlet locations
allow range to be installed directly against rear wall.
Optional Kits for Slide-In Electric Ranges (Available at additional costs)
Accessory Backguards
(Attaches to the back of
range as a backguard when
unit is installed in
30" free-standing cutout)
JXS37WW – White
JXS37CC – Bisque
JXS37BB – Black/Stainless
Body Sides
(Slide-in ranges are sold
without sides installed. Can
be installed on either left
or right when unit has one
exposed side [no cabinet
adjacent]. Kit contains
1 body side)
JXS76WW – White
JXS76CC – Bisque
JXS76BB – Black
Vertical Side Trim Kits
(If cabinet cutout width is
more than 30", a vertical
side trim kit may be used to
close the gap between the
range and cabinet)
JXS86WW – White
JXS86CC – Bisque
JXS86BB – Black
Optional Lower Trim Kits
(If counter height is greater
than 36.5", a lower trim kit
is recommended to extend
the useful height to 38"
maximum)
JXS56WW – White
JXS56CC – Bisque
JXS56BB – Black
Optional Top Filler Kits
JXS66WW – White
JXS66CC – Bisque
JXS66BB – Black
KW Rating
240V 12.1
208V 9.1
Breaker Size
240V 40 Amps
208V 40 Amps
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Installation Information: Before installing, consult installation instructions packed
with product for current dimensional data.
Specification Revised 11/03
220434
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Acceptable
Electrical
Outlet Area
30" M
in.
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
36
6" Min.
From Walls
23-3/16
15" Min.
13" Max.
2-1/2
30
25
9/16
7-1/2
2-1/2
2-7/8"
To Front
Surface Of
Countertop
20-5/8" Door
Clearance
From Front
Surface of
Countertop
31-1/4
30
27-1/2
4
Accessory
Backguard
24
R
Listed by
Underwriters
Laboratories
23-3/16
30
If you are NOT using the
optional Filler or Backguard:
30
If you are using the
optional Filler or Backguard:
25
Specification Revised 11/03
220434
TM
JS968BF/KF/SF/TF – GE Profile™30" Slide-In Electric Range
I
H
8
6
4
2
L
O
L
O
2
4
6
8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
I
H
8
6
4
2
L
O
2
4
6
8
Features and Benefits
• Convection Self-Cleaning Oven Super Large Capacity
with Automatic Oven Door Lock
• Precise Air™Convection System
• Multi-Mode Convection Bake and Convection Roast
• True Frameless Oven Door with Big ClearView™Window
and Halogen Interior Light
• One 6", Two 7" Ribbon Heating Elements (with Bridge Element),
One Dual 6"/9" Element and Fifth Element Warming Zone
• TrueTemp™System
• SmartSet Electronic Glass Touch Oven Controls
• Certified Sabbath Mode/Proofing Mode
• 3 Heavy-Duty Oven Shelves
• Custom Built-In Look with Simple Slide-In Installation
• Model JS968BFBB – Black on black
• Model JS968TFWW – True white
• Model JS968KFCC – True bisque
• Model JS968SFSS – Stainless steel
Loading...
