GE PP9830SJ Specification

PP9830SJ

29 3/4"

21 7/8"

29 3/4"

(29 13/16" SS)

28 3/4"

21 7/8"

(21 15/16" SS)

2 3/16"

(2 1/4" SS)

22"

20 1/2"

11 1/2"

Cut-out Dimensions (in inches)

GE Profile

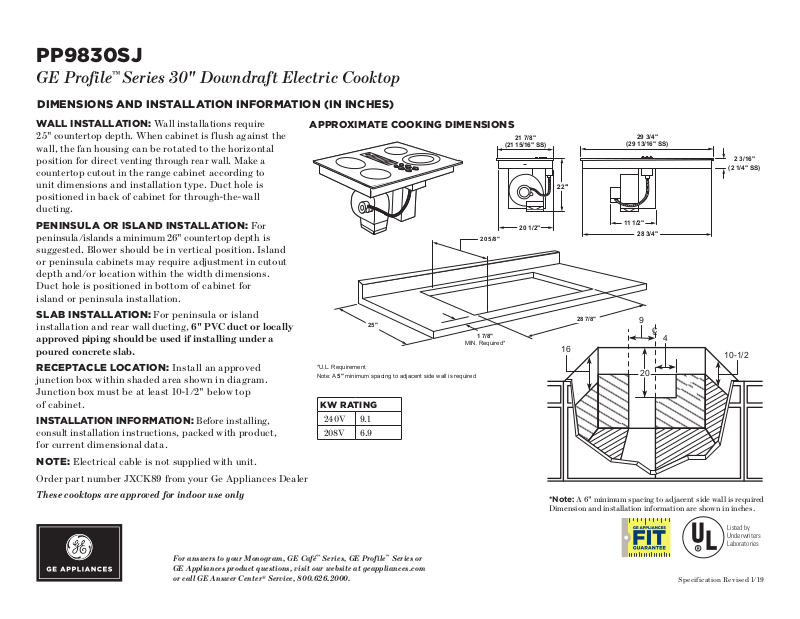

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

™

Series 30" Downdraft Electric Cooktop

WALL INSTALLATION: Wall installations require 25" countertop

depth. When cabinet is flush against the wall, the fan housing can be rotated to the horizontal position for direct countertop

cutout in the range cabinet according to

venting through rear wall. Make a

unit dimensions and installation type. Duct hole is positioned in back of cabinet for through-the-wall ducting.

PENINSULA OR ISLAND INSTALLATION: For peninsula/islands a minimum 26"

countertop

depth is suggested. Blower should be in vertical position. Island or peninsula cabinets may require adjustment in cutout depth and/or location within the width dimensions. Duct hole is positioned in bottom of cabinet for island or peninsula installation.

SLAB INSTALLATION: For peninsula or island installation and rear wall ducting, 6" PVC duct or locally

approved piping should be used if installing under a poured concrete slab.

RECEPTAC L E LOCATION: Install an approved junction box within shaded area shown in diagram. Junction box must be at least 10-1/2" below top of cabinet.

INSTALLATION I N FORMATI O N : Before installing, consult installation

instructions, packed with product,

for current dimensional data.

NOTE: Electrical cable is not supplied with unit.

Order part number JXCK89 from your Ge Appliances Dealer

These cooktops are approved for indoor use only

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

APPROXIMATE COOKING DIMENSIONS

20 5/8"

25"

1 7/8"

MIN. Required*

*U.L. Requirement Note: A 5" minimum spacing to adjacent side wall is required

KW R ATI N G

240V 9.1

208V 6.9

(21 15/16" SS)

20 1/2"

(29 13/16" SS)

2 3/16"

(2 1/4" SS)

22"

11 1/2"

28 3/4"

28 7/8"

*Note: A 6" minimum spacing to adjacent side wall is required Dimension and installation information are shown in inches.

Specification Revised 1/19

10-1/2

Listed by Underwriters Laboratories

PP9830SJ

Venting Options

Inside Wall to Roof Direct to Outside

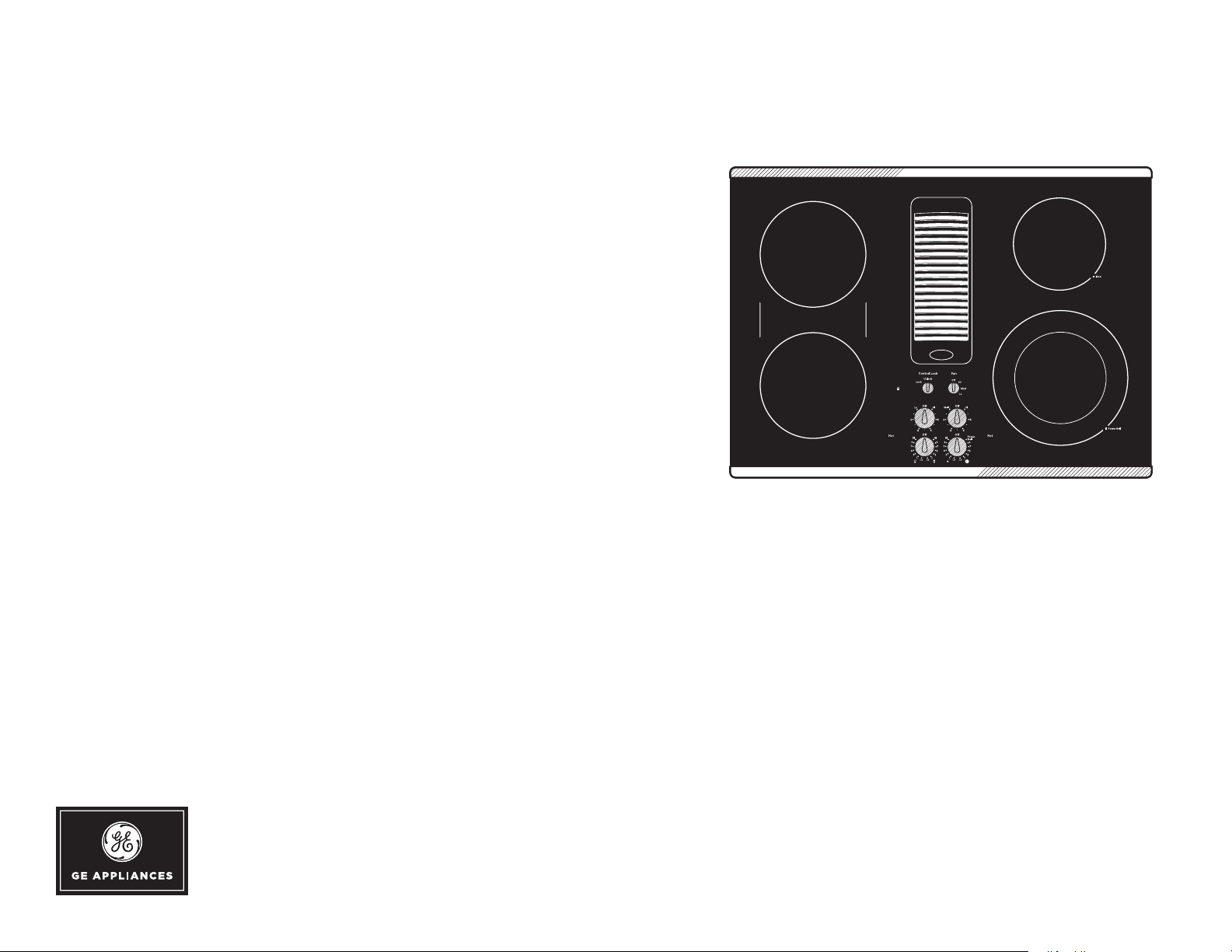

GE Profile™ Series 30" Downdraft Electric Cooktop

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

INSTALLING THE DUCTWORK: Use galvanized or aluminum duct in 6" round or 3-1/4" x 10" size, or combination of both.

PVC duct or locally approved piping should be used if installing under a poured concrete slab. Local building code

must be followed in specifying type and schedule of all duct used.

NOTE: Ductwork must be vented to outside. Do not vent into a wall, ceiling, crawlspace, attic or any concealed space. Always use an appropriate roof or wall cap with damper.

Laundry-type wall caps should never be used. For maximum efficiency use the

shortest and straightest duct run possible, with as few fittings as possible.

For satisfactory performance the duct run should not exceed 100 feet equivalent length. Refer to the table of equivalent lengths (shown in installation instructions) for various duct configurations.

Through Cabinet Toe Space

10-1/8

Between Floor Joist

6-1/8

9-1/8

18-3/4

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

REAR WALL VENTINGDOWNWARD VENTING

Listed by Underwriters Laboratories

Specification Revised 1/19
