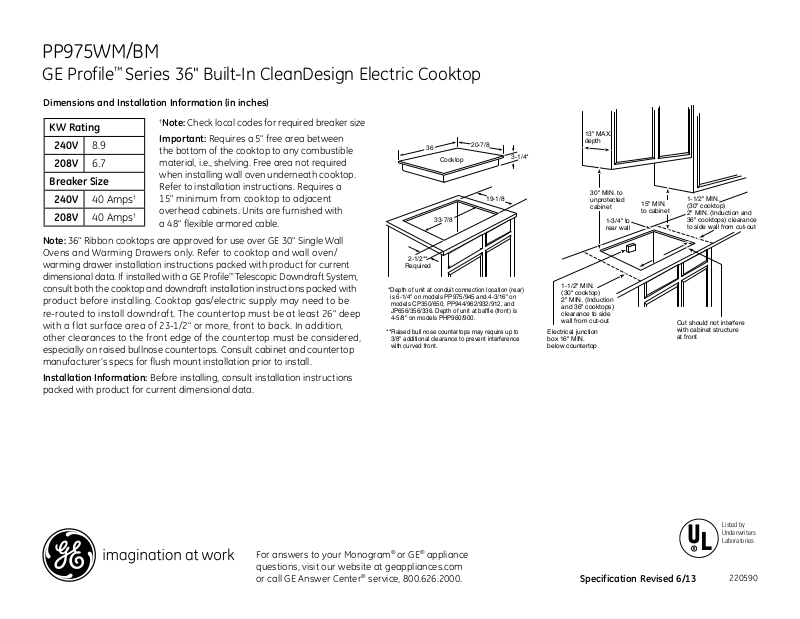

PP975WM/BM
GE Profile™ Series 36" Built-In CleanDesign Electric Cooktop
Dimensions and Installation Information (in inches)
†
KW Rating
240V
208V
8.9
6.7
Breaker Size
240V
208V
Note: 36" Ribbon cooktops are approved for use over GE 30" Single Wall
Ovens and Warming Drawers only. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for current
dimensional data. If installed with a GE Profile™ Telescopic Downdraft System,
consult both the cooktop and downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply may need to be
re-routed to install downdraft. The countertop must be at least 26" deep
with a flat surface area of 23-1/2" or more, front to back. In addition,
other clearances to the front edge of the countertop must be considered,
especially on raised bullnose countertops. Consult cabinet and countertop
manufacturer’s specs for flush mount installation prior to install.
Installation Information:
packed with product for current dimensional data.
40 Amps
40 Amps
Note: Check local codes for required breaker size
Important: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a
†
15" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with
†
a 48" flexible armored cable.
Before installing, consult installation instructions
36
Cooktop
33-7/8
2-1/2**
Required
* Depth of unit at conduit connection location (rear)
is 6-1/4" on models PP975/945 and 4-3/16" on
models CP350/650, PP944/962/932/912, and
JP656/356/336. Depth of unit at baffle (front) is
4-5/8" on models PHP960/900.
**Raised bull nose countertops may require up to
3/8" additional clearance to prevent interference
with curved front.
20-7/8
19-1/8
3-1/4*
13" MAX.
depth
1-1/2" MIN.
(30" cooktop)
2" MIN. (Induction
and 36" cooktops)
clearance to side
wall from cut-out
Electrical junction
box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
1-3/4" to
rear wall
15" MIN.
to cabinet
1-1/2" MIN.
(30" cooktop)
2" MIN. (Induction and
36" cooktops) clearance
to side wall from cut-out
Cut should not interfere
with cabinet structure
at front
For answers to your Monogram® or GE® appliance
questions, visit our website at geappliances.com
or call GE Answer Center® service, 800.626.2000.
Specification Revised 6/13
Listed by
Underwriters
Laboratories
220590
PP975WM/BM
GE Profile™ Series 36" Built-In CleanDesign Electric Cooktop
Features and Benefits
• Electronic Touch Controls - Offer easy, point-and-cook convenience
• Ribbon Heating Elements - Provide powerful heat beneath a smooth
glass surface to ensure even heat and fast warm-up times
• Power Boil Element - Provides up to 3,000 watts of power to speed
the boiling process
• Dual Size Ribbon Element - Offers a convenient choice of using a
5" or 8" heating element depending on the size of the pan
• Control Lock Capability - Provides the ability to lock controls, helping
protect from unintentional activation
• Upfront Controls - Controls are placed within easy reach at the front
center of the cooktop
• Hot Surface Indicator Lights - Illuminate when the cooking surface
is active and hot, adding convenience and safe caution
• 12"/9"/6" Tri-Ring Element - Accommodates various-sized pots
or pans for the ultimate in cooking versatility
• Warming Zone - Provides low heat capability for foods, making meal
coordination simple
• Model PP975WMWW - White on white
• Model PP975BMBB - Black on black
HOT SURFACE
CONTROL
LOCK
Specification Revised 6/13
