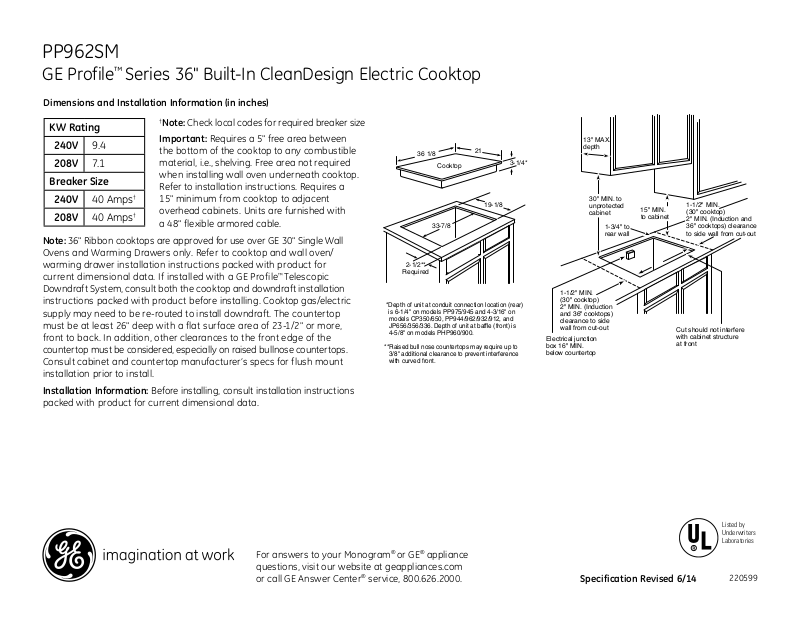

PP962SM
GE Profile™ Series 36" Built-In CleanDesign Electric Cooktop
Dimensions and Installation Information (in inches)
†
KW Rating
240V
208V
9.4
7.1
Breaker Size
240V
208V
Note: 36" Ribbon cooktops are approved for use over GE 30" Single Wall
Ovens and Warming Drawers only. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for
current dimensional data. If installed with a GE Profile™ Telescopic
Downdraft System, consult both the cooktop and downdraft installation
instructions packed with product before installing.
supply may need to be re-routed to install downdraft. The countertop
must be at least 26" deep with a flat surface area of 23-1/2" or more,
front to back. In addition, other clearances to the front edge of the
countertop must be considered, especially on raised bullnose countertops.
Consult cabinet and countertop manufacturer’s specs for flush mount
installation prior to install.
40 Amps
40 Amps
Note: Check local codes for required breaker size
Important: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a
†
15" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with
†
a 48" flexible armored cable.
Cooktop
gas/electric
36 1/8
Cooktop
33-7/8
2-1/2**
Required
* Depth of unit at conduit connection location (rear)
is 6-1/4" on models PP975/945 and 4-3/16" on
models CP350/650, PP944/962/932/912, and
JP656/356/336. Depth of unit at baffle (front) is
4-5/8" on models PHP960/900.
**Raised bull nose countertops may require up to
3/8" additional clearance to prevent interference
with curved front.
21
19-1/8
3-1/4*
13" MAX.
depth
1-1/2" MIN.
(30" cooktop)
2" MIN. (Induction
and 36" cooktops)
clearance to side
wall from cut-out
Electrical junction
box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
1-3/4" to
rear wall
15" MIN.
to cabinet
1-1/2" MIN.
(30" cooktop)
2" MIN. (Induction and
36" cooktops) clearance
to side wall from cut-out
Cut should not interfere
with cabinet structure
at front
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram® or GE® appliance
questions, visit our website at geappliances.com
or call GE Answer Center® service, 800.626.2000.
Specification Revised 6/14
Listed by
Underwriters
Laboratories
220599
PP962SM
GE Profile™ Series 36" Built-In CleanDesign Electric Cooktop
Features and Benefits
• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning
quick and easy
• Ribbon Heating Elements - Provide powerful heat beneath a smooth
glass surface to ensure even heat and fast warm-up times
• 6"/9"/12" Tri-Ring Element - Accommodates various-sized pots
or pans for the ultimate in cooking versatility
• Dual Size Ribbon Element - Offers a convenient choice of using a
5" or 8" heating element depending on the size of the pan
• Bridge Element - Combines three cooktop elements into one large
cooking area, ideal for oversized cooking pans
• Heavy-Duty Knobs - Add durability and brushed chrome for
enhanced style and performance
• Stainless Steel Frame - Brings an added touch of style to any decor
and perfectly complements all other stainless steel appliances in
the kitchen
• Upfront Controls - Controls are placed within easy reach at the front
center of the cooktop
• Dishwasher-Safe Knobs - Feature a robust construction for safe and
easy cleaning
• Warming Zone - Provides low heat capability for foods, making meal
coordination simple
• Model PP962SMSS - Stainless steel
Specification Revised 6/14
220599
