GE PP950WM, PP950BM User Manual

3-1/4*

Cooktop

2-1/2**

Required

28-1/2

19-5/8

29-3/4

21-3/8

Electrical junction box 16" MIN.
below countertop

30" MIN. to
unprotected
cabinet

Cut should
not interfere
with cabinet
structure
at front

1-1/2" MIN.

clearance to

side wall

from cut-out

1-1/2" MIN.

clearance to

side wall

from cut-out

1-3/4" to
rear wall

13" MAX.
depth

* Depth of unit at conduit connection location (rear) is

6-1/2" on models PP980/975/950/945 and 4-5/8"
on models PHP900/PP972/962/942/932/912,
JP655/356/346.

**Raised bull nose countertops may require up to

3/8" additional clearance to prevent interference
with curved front.

15" MIN.
to cabinet

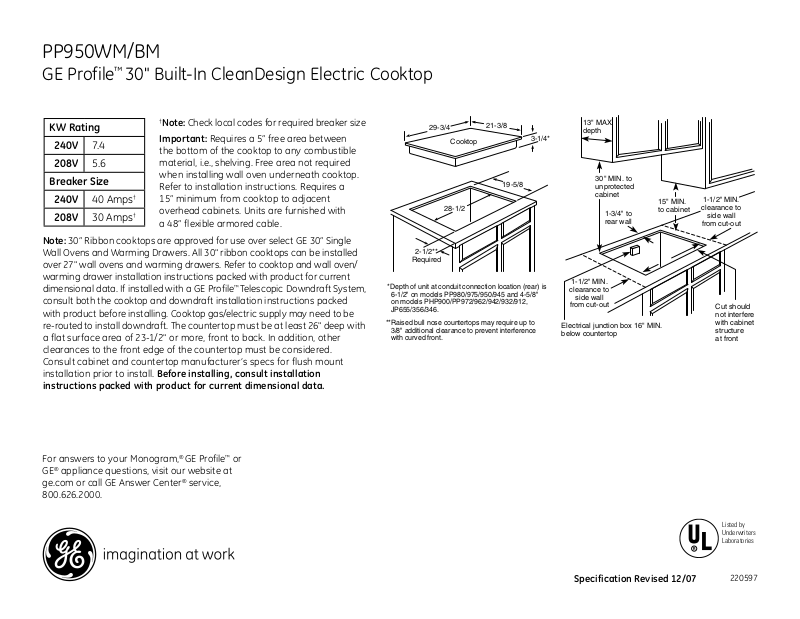

PP950WM/BM

GE Profile™ 30" Built-In CleanDesign Electric Cooktop

†

KW Rating

240V

208V

7.4

5.6

Breaker Size

240V

208V

Note: 30” Ribbon cooktops are approved for use over select GE 30” Single

Wall Ovens and Warming Drawers. All 30" ribbon cooktops can be installed
over 27" wall ovens and warming drawers. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for current
dimensional data. If installed with a GE Profile™ Telescopic Downdraft System,
consult both the cooktop and downdraft installation instructions packed
with product before installing.
re-routed to install downdraft.
a flat surface area of 23-1/2" or more, front to back. In addition, other
clearances to the front edge of the countertop must be considered.
Consult cabinet and countertop manufacturer’s specs for flush mount
installation prior to install. Before installing, consult installation
instructions packed with product for current dimensional data.

40 Amps

30 Amps

Note: Check local codes for required breaker size

Important: Requires a 5” free area between

the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a

†

15” minimum from cooktop to adjacent
overhead cabinets. Units are furnished with

†

a 48” flexible armored cable.

Cooktop gas/electric supply may need to be

The countertop must be at least 26" deep with

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Specification Revised 12/07

Listed by
Underwriters
Laboratories

220597

WA

RMER

SIZE SELECT

SIZE SELECT

TIMER

SENSORS

C

O

N

T

R

O

L

L

O

C

K

P

A

N

HR

MI

N

PP950WM/BM

GE Profile™ 30" Built-In CleanDesign Electric Cooktop

Features and Benefits

• Electronic Touch Controls - Offer easy, point-and-cook convenience

™

• Precise Digital Control System
cooktop, ensuring even heating and less temperature variation

• Electronic Kitchen Timer - Provides convenient notification to help
coordinate meal preparation and cooking times

• Pan Presence Sensor - Detects when a burner element is left "on"
and automatically shuts it off when not in use

• Pan Size Sensor - Automatically adjusts the heating element to the
size of the pan

• Dual Size Ribbon Elements - Offers a convenient choice of using a 6"
or 9" on one and a 5" or 8" on the other heating element, depending
on the size of the pan

• Warming Zone - Provides low heat capability for foods, making meal
coordination simple

- Delivers accurate control on the

• Ribbon Heating Elements - Provide powerful heat beneath a smooth
glass surface to ensure even heat and fast warm-up times

• Model PP950WMWW - White on white

• Model PP950BMBB - Black on black

Specification Revised 12/07

220597
