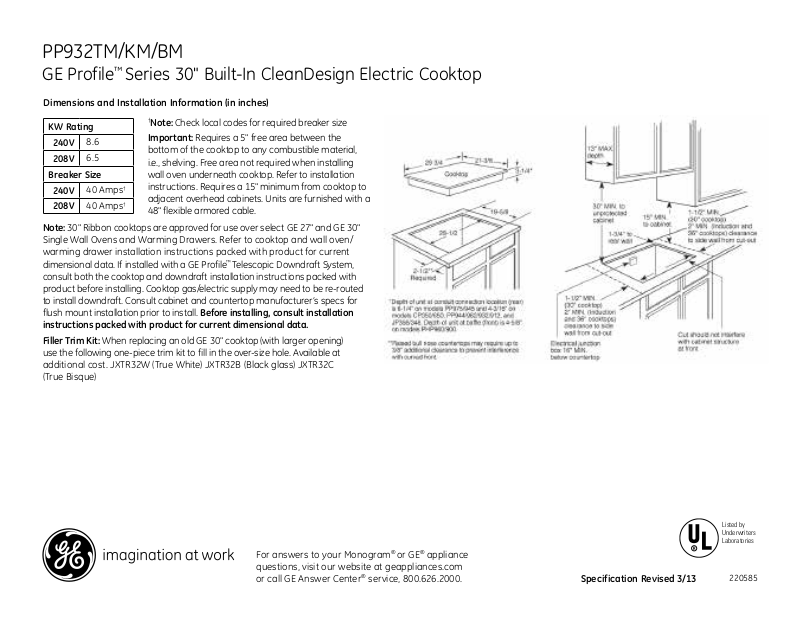

GE PP932BMBB User Manual

PP932TM/KM/BM

GE Profile™ Series 30" Built-In CleanDesign Electric Cooktop

Dimensions and Installation Information (in inches)

†

KW Rating

240V

208V

Breaker Size

240V

208V

8.6

6.5

40 Amps

40 Amps

Note: 30" Ribbon cooktops are approved for use over select GE 27" and GE 30"
Single Wall Ovens and Warming Drawers. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for current
dimensional data. If installed with a GE Profile™ Telescopic Downdraft System,
consult both the cooktop and downdraft installation instructions packed with
product before installing.
to install downdraft.
flush mount installation prior to install. Before installing, consult installation

instructions packed with product for current dimensional data.
Filler Trim Kit: When replacing an old GE 30" cooktop (with larger opening)

use the following one-piece trim kit to fill in the over-size hole. Available at
additional cost. JXTR32W (True White) JXTR32B (Black glass) JXTR32C
(True Bisque)

Note: Check local codes for required breaker size

Important: Requires a 5" free area between the

bottom of the cooktop to any combustible material,
i.e., shelving. Free area not required when installing
wall oven underneath cooktop. Refer to installation
instructions. Requires a 15" minimum from cooktop to

†

adjacent overhead cabinets. Units are furnished with a

†

48" flexible armored cable.

Cooktop gas/electric supply may need to be re-routed

Consult cabinet and countertop manufacturer’s specs for

For answers to your Monogram® or GE® appliance
questions, visit our website at geappliances.com
or call GE Answer Center® service, 800.626.2000.

Specification Revised 3/13

Listed by
Underwriters
Laboratories

220585

PP932TM/KM/BM

GE Profile™ Series 30" Built-In CleanDesign Electric Cooktop

Features and Benefits

• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning
quick and easy

• Ribbon Heating Elements - Provide powerful heat beneath a smooth
glass surface to ensure even heat and fast warm-up times

• Power Boil Element - Accommodates various-size pots or pans and
3,000 watts of power speeds the boiling process

• Bridge Element - Combines three cooktop elements into one large
cooking area, ideal for oversized cooking pans

• Control Lock Capability - Provides the ability to lock controls, helping
protect from unintentional activation

• Frameless Design - A smooth and seamless cooktop surface makes
cleaning quick and easy

• Dishwasher-Safe Knobs - Feature a robust construction for safe and
easy cleaning

• Melt Setting - Optimized for melting chocolate, this setting delivers
the low gentle heat needed

• Simmer Setting - Ideal for making delicate sauces or melting butter,
and ensures a food-safe temperature of at least 140˚F

• Model PP932TMWW - True white

• Model PP932KMCC - True bisque

• Model PP932BMBB - Black on black

Specification Revised 3/13

220585
