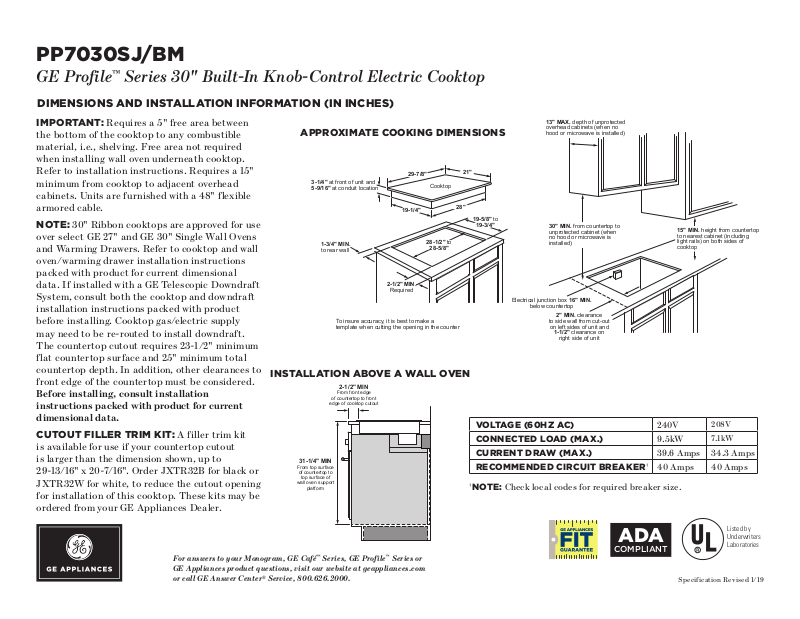

PP7030SJ/BM
ADA
PP9030SJ, PP7030SJ, JP5030SJ
INSTALLATION ABOVE A WALL OVEN
GE Profile™ Series 30" Built-In Knob-Control Electric Cooktop
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.
NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic Downdraft
System, consult both the cooktop and downdraft
installation instructions packed with product
before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.
The countertop cutout requires 23-1/2" minimum
flat countertop surface and 25" minimum total
countertop depth. In addition, other clearances to
front edge of the countertop must be considered.
Before installing, consult installation
instructions packed with product for current
dimensional data.
CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout
is larger than the dimension shown, up to
29-13/16" x 20-7/16". Order JXTR32B for black or
JXTR32W for white, to reduce the cutout opening
for installation of this cooktop. These kits may be
ordered from your GE Appliances Dealer.

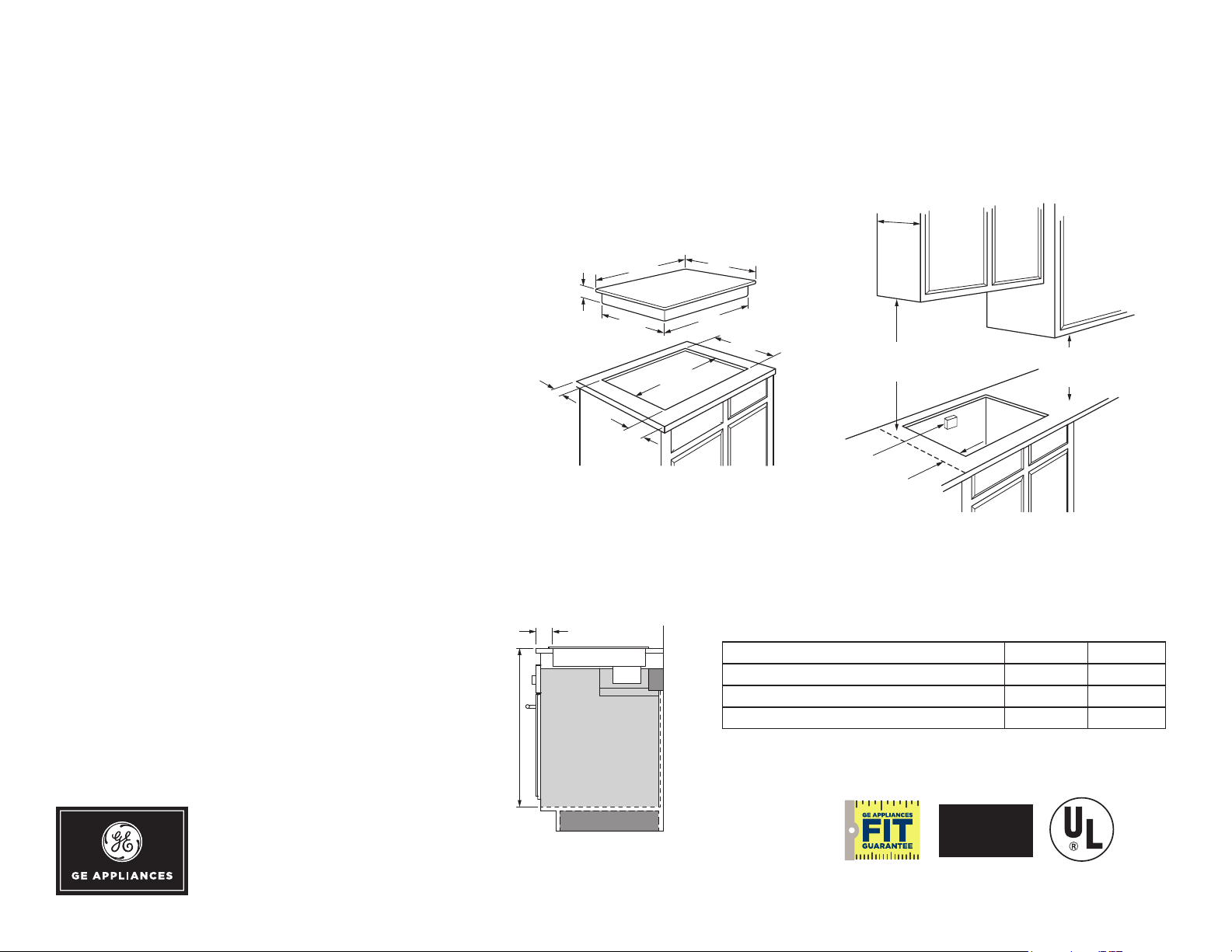

APPROXIMATE COOKING DIMENSIONS
19-1/4"
2-1/2" MIN.
Required
29-7/8"
Cooktop
28-1/2" to
28-5/8"
3-1/4" at front of unit and
5-9/16" at conduit location
1-3/4" MIN.
to rear wall
To insure accuracy, it is best to make a
template when cutting the opening in the counter
INSTALLATION ABOVE A WALL OVEN
2-1/2" MIN
From front edge
of countertop to front
edge of cooktop cutout
31-1/4" MIN
From top surface
of countertop to
top surface of
wall oven support
platform
13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)
21"
28"
19-5/8" to
19-3/4"
Electrical junction box 16" MIN.
30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)
below countertop
2" MIN. clearance
to side wall from cut-out
on left sides of unit and
1-1/2" clearance on
right side of unit
15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop
VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 9.5kW
CURRENT DRAW (MAX.) 39.6 Amps 34.3 Amps
RECOMMENDED CIRCUIT BREAKER†40 Amps 40 Amps
†
NOTE: Check local codes for required breaker size.
208V
7.1kW
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
COMPLIANT
Listed by
Underwriters
Laboratories
Specification Revised 1/19
Page 2
PP7030SJ/BM
GE Profile™ Series 30" Built-In Knob-Control Electric Cooktop
FEATURES AND BENEFITS
Five radiant cooking elements – Cook foods quickly and evenly
on this sleek, glass surface
6"/9" Power Boil element – Use different pan sizes on this single, 3,100-watt
flexible element that produces rapid powerful heat
5"/8" dual element – Use different pan sizes on this single,
2,200-watt flexible element
SyncBurners – Control two 7" elements simultaneously to evenly heat large
cookware or griddles*
Keep Warm setting – Keep food warm with GE Appliances' lowest heat setting
or boil water in minutes with this fully functional 6" element
Melt setting – Gently melt delicate foods without burning or scorching
Control lock capability – Protects against unintended activation
Red LED backlit knobs with black glass surface and stainles steel trim –
Achieve a modern look with the convenience of knob controls that complements
the entire kitchen and other stainless steel appliances
Hot surface indicator lights – Know when elements are too hot
to touch with a quick glance
* OPTIONAL STAINLESS STEEL CLAD
ALUMINUM GRIDDLE
Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer.
Cooktop “On” indicator light – A light lets you know when an element is active

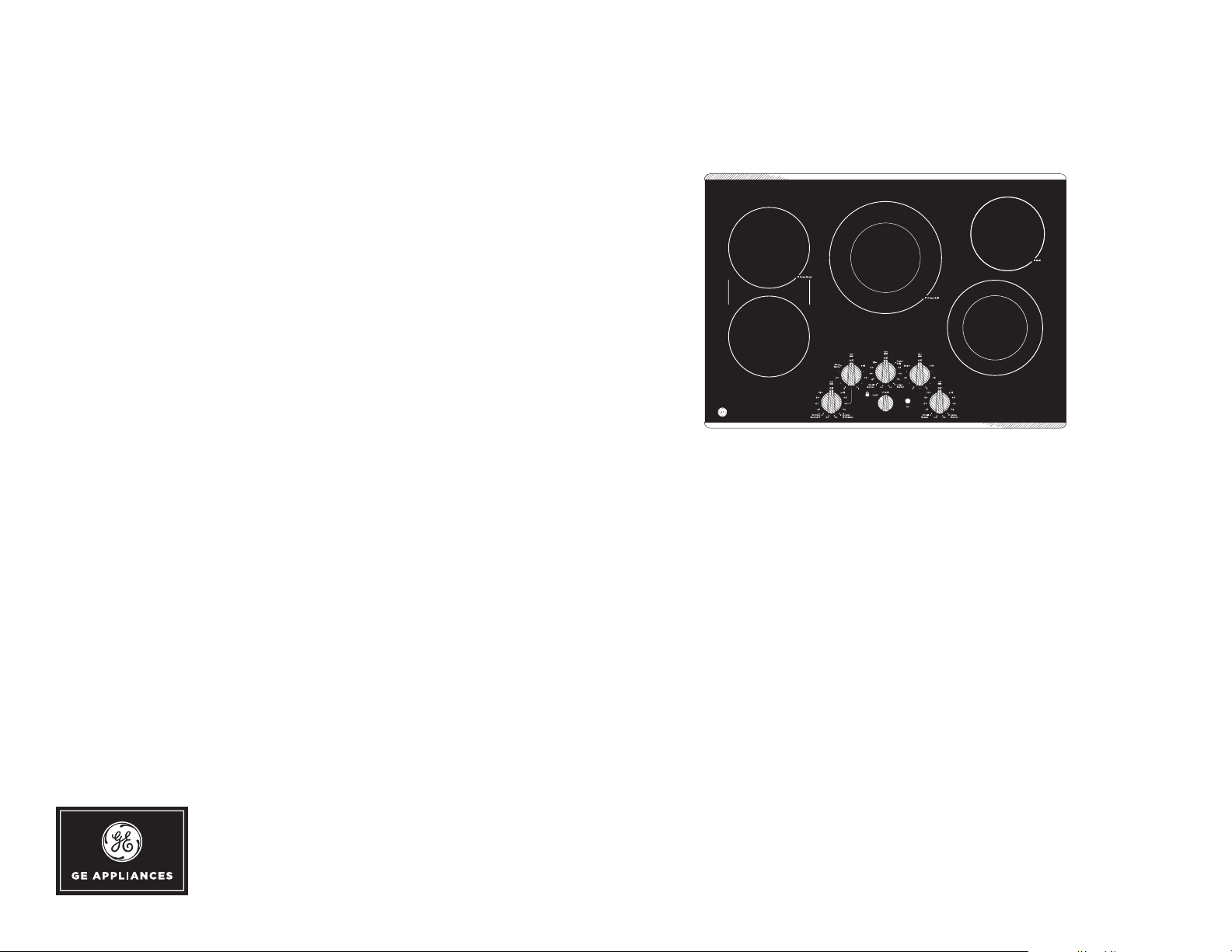

Model PP7030SJSS – Stainless steel
Model PP7030BMTS – Black Stainless
GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications
Visit geappliances.com for more info
Specification Revised 1/19
