GE PNS20KSE Specification
PNS20KSE
H
E
D
G
F
I
GE Profile™ Series 19.5 Cu. Ft. French-Door Refrigerator

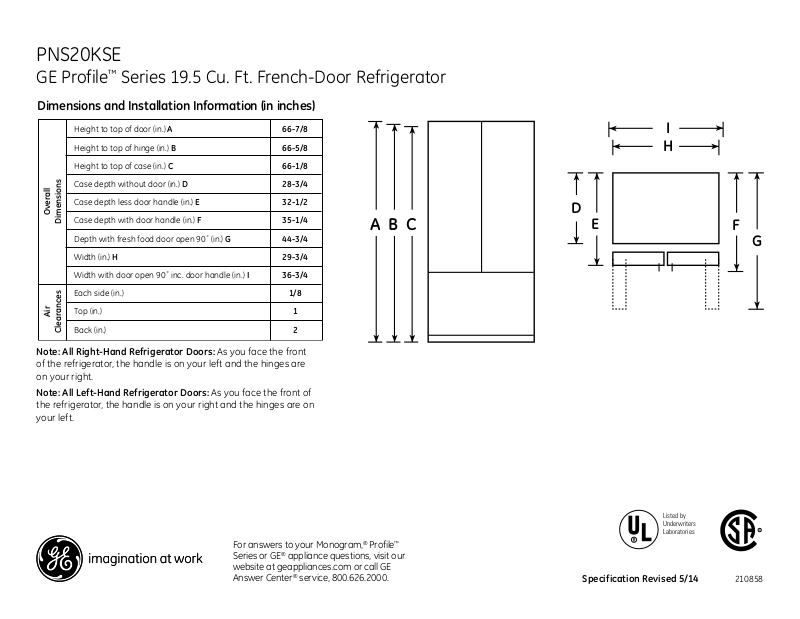

Dimensions and Installation Information (in inches)
Height to top of door (in.) A
Height to top of hinge (in.) B
Height to top of case (in.) C
Case depth without door (in.) D
Case depth less door handle (in.) E
Overall
Case depth with door handle (in.) F
Dimensions
Depth with fresh food door open 90˚ (in.) G
Width (in.) H
Width with door open 90˚ inc. door handle (in.) I
Each side (in.)
Top (in.)
Air
Back (in.)
Clearances
Note: All Right-Hand Refrigerator Doors: As you face the front
of the refrigerator, the handle is on your left and the hinges are
on your right.
Note: All Left-Hand Refrigerator Doors: As you face the front of
the refrigerator, the handle is on your right and the hinges are on
your left.
66-7/8
66-5/8
66-1/8
28-3/4
32-1/2
35-1/4
44-3/4
29-3/4
36-3/4
1/8
1
2
I
H
D
A
B
C
E
F
G
For answers to your Monogram,® Profile™
Series or GE® appliance questions, visit our
website at geappliances.com or call GE
Answer Center® service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 5/14
210858
PNS20KSE
GE Profile™ Series 19.5 Cu. Ft. French-Door Refrigerator
Features and Benefits
• 30" wide
• Factory-installed icemaker with water filtration system - Refrigerator comes ready to
automatically create filtered ice
• Upfront temperature controls with actual temperature display - Easy-to-reach controls display
accurate temperatures
• Multi-level freezer baskets - Keep frozen foods organized and easy to find
• Adjustable humidity drawers - Keep fruits and vegetables fresh
• GE water filtration uses MWF replacement filter
• Model PNS20KSESS - Stainless steel
Specification Revised 5/14
210858
