GE PNRQ21R Specification
PNRQ21R
GE Profile™ Reverse Osmosis Filtration System

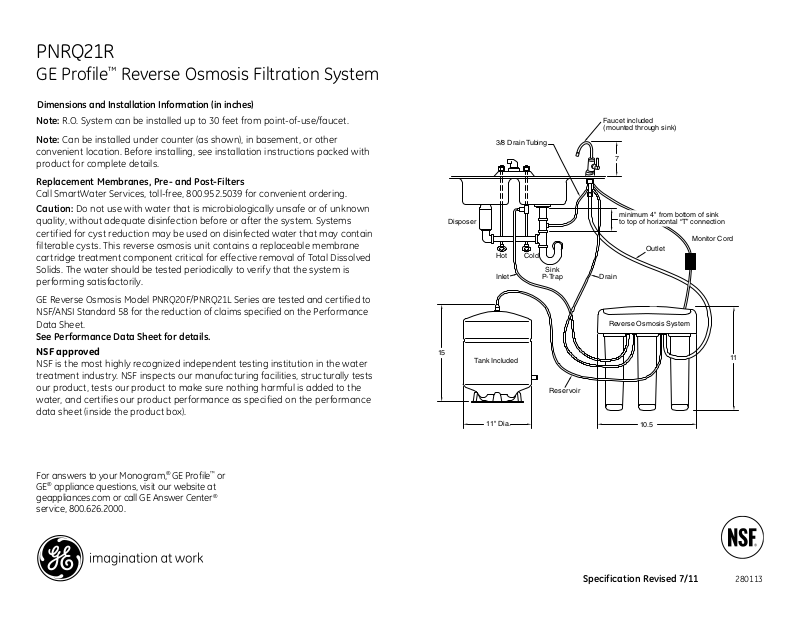

Dimensions and Installation Information (in inches)
Note: R.O. System can be installed up to 30 feet from point-of-use/faucet.
Note: Can be installed under counter (as shown), in basement, or other
convenient location. Before installing, see installation instructions packed with
product for complete details.
Replacement Membranes, Pre- and Post-Filters
Call SmartWater Services, toll-free, 800.952.5039 for convenient ordering.
Caution: Do not use with water that is micro biologically unsafe or of unknown
quality, without adequate disinfection before or after the system. Systems
certified for cyst reduction may be used on disinfected water that may contain
filterable cysts. This reverse osmosis unit contains a replaceable membrane
cartridge treatment component critical for effective removal of Total Dissolved
Solids. The water should be tested periodically to verify that the system is
performing satisfactorily.
GE Reverse Osmosis Model PNRQ20F/PNRQ21L Series are tested and certified to
NSF/ANSI Standard 58 for the reduction of claims specified on the Performance
Data Sheet.
See Performance Data Sheet for details.
NSF approved
NSF is the most highly recognized independent testing institution in the water
treatment industry. NSF inspects our manufacturing facilities, structurally tests
our product, tests our product to make sure nothing harmful is added to the
water, and certifies our product performance as specified on the performance
data sheet (inside the product box).
15
Disposer
3/8 Drain Tubing
Hot Cold
Inlet
Tank Included
11" Dia.
Sink
P-Tr ap
Reservoir
Faucet included
(mounted through sink)
7
minimum 4" from bottom of sink
to top of horizontal “T” connection
Outlet
Drain
Reverse Osmosis System
10.5
Monitor Cord
11
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Specification Revised 7/11
280113
PNRQ21R
GE Profile™ Reverse Osmosis Filtration System
Features and Benefits
• Premium filtration process
• Twist and Lock design
• Advanced Monitoring System
• Filter and memebrane reminder lights
• Designer-style brushed nickel faucet
• Faucet and full installation kit included
• Quick Connect fittings
• PNRQ21RBN
Specification Revised 7/11
280113
