GE PK7800EK, PK7800SK Specification
21-5/8"
PK7800
PK7800EK/SK
GE Profile

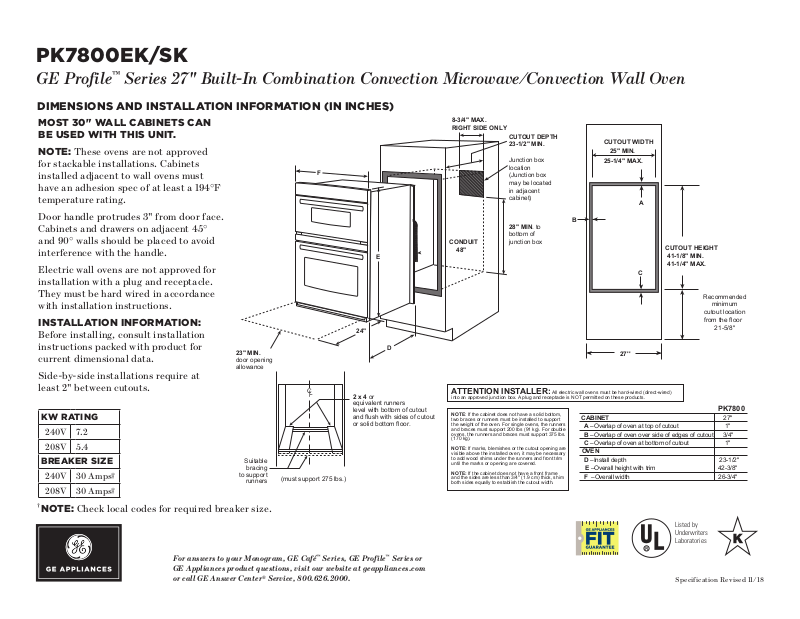

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MOST 30" WALL CABINETS CAN
BE USED WITH THIS UNIT.
NOTE: These ovens are not approved
for stackable installations. Cabinets
installed adjacent to wall ovens must
have an adhesion spec of at least a 194°F
temperature rating.
Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45°
and 90° walls should be placed to avoid
interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle.
They must be hard wired in accordance
with installation instructions.
INS TA LL ATI ON I NFOR M ATI O N:
Before installing, consult installation
instructions packed with product for
current dimensional data.
Side-by-side installations require at
least 2" between cutouts.
KW RATI N G
240V 7.2
208V 5.4
BREAKER SIZE
240V 30 Amps†
208V 30 A mps†
†
NOTE: Check local codes for required breaker size.
™
Series 27" Built-In Combination Convection Microwave/Convection Wall Oven
F
E
24"
23" MIN.
door opening
allowance
C
Suitable
bracing
to support
runners
L
(must support 275 lbs.)
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
8-3/4" MAX.
RIGHT SIDE ONLY
CONDUIT
48"
D
ATTENTION INSTALLER: All electric wall ovens must be hard-wired (direct-wired)
into an approved junction box. A plug and receptacle is NOT permitted on these products.
NOTE: If the cabinet does not have a solid bottom,
two braces or runners must be installed to support
the weight of the oven. For single ovens, the runners
and braces must support 200 lbs (91 kg). For double
ovens, the runners and braces must support 375 lbs.
(170 kg).
NOTE: If marks, blemishes or the cutout opening are
visible above the installed oven, it may be necessary
to add wood shims under the runners and front trim
until the marks or opening are covered.
NOTE: If the cabinet does not have a front frame
and the sides are less than 3/4" (1.9 cm) thick, shim
both sides equally to establish the cutout width.
CUTOUT DEPTH
23-1/2" MIN.
Junction box
location
(Junction box
may be located
in adjacent
cabinet)
28" MIN. to
bottom of
junction box
CUTOUT WIDTH
25" MIN.
25-1/4" MAX.
A
B
CUTOUT HEIGHT
41-1/8" MIN.
41-1/4" MAX.
C
Recommended
minimum
cutout location
from the floor
27''
CABINET 27"
A –Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 3/4"
C –Overlap of oven at bottom of cutout 1"
OVEN
D –Install depth 23-1/2"
E –Overall height with trim 42-3/8"
F –Overall width 26-3/4"
Listed by
Underwriters
Laboratories
Speci fication Revised 11/18
21-5/8"
PK7800
JK3800
PK7800EK/SK
GE Profile
FEATURES AND BENEFITS
Convection microwave (upper oven) – Circulates heat for high-quality results
True European Convection (lower oven) – Achieve delicious results from a third
heating element and fan combination
Self-clean, heavy-duty roller rack (lower oven) – Easily access items with a rack that
glides smoothly
Self-clean with Steam Clean option (lower oven) – Clean your oven the way you want
Glass touch controls – Set temperatures quickly and clean with little effort
Halogen interior oven lighting (lower oven) – Easily see how your food is baking
Ten-pass bake element (lower oven) – Even baking is assured with heat that covers
more surface area
Eight-pass broil element (lower oven) – Get full broil coverage and even browning
from edge to edge
1.7 cu. ft. microwave capacity, 1,000 Watts (IEC-705 test procedure)
16" turntable (upper oven) – Rotates food throughout the cooking cycle
for even cooking results
™
Series 27" Built-In Combination Convection Microwave/Convection Wall Oven
Model PK7800EKES – Slate
Model PK7800SKSS – Stainless steel
GUARANTEED FIT
Replacing a similar wall oven from GE or another brand? GE wall ovens are
guaranteed for an exact fit to make replacement easy
Visit geappliances.com for more info
Speci fication Revised 11/18
