GE PHS930YPFS Specs

PHS930BP/YP

29-7/8"

36"

+1/2"

-1/4"

27-1/3"

Wall-Mounted

30" min

See note A

Side Wall

Note A: 30" Minimum to bare cabinet, see
installation instructions heights less than 30"

30"

0" permitted

recommend
6" space to
each side wall

0"

minimum
to cabinets
below
cooktop

36"

24"

Recommended

7-1/2"

6-1/2"

2-1/2"

30"

single ovens
double ovens

3"

4"

single ovens
double ovens

2-1/2"

29-7/8"

48-1/4"

*25-7/8"

*Depth including door handle is approximately 28-1/4".

37-1/4"

36"

+1/2"

-1/4"

27-1/3"

GE Profile™ 30" Smart Slide-In Front-Control Induction
and Convection Range

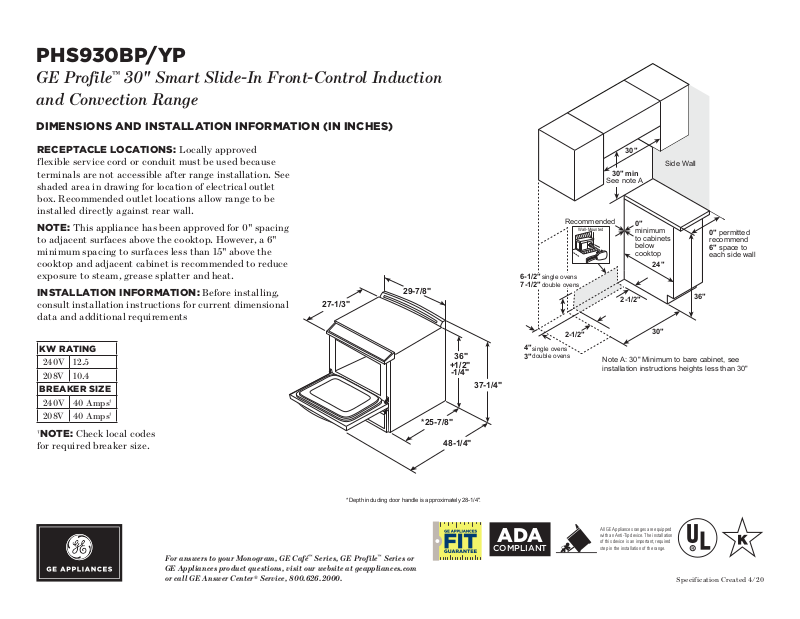

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

RECEPTACLE LOCATIONS: Locally approved
flexible service cord or conduit must be used because
terminals are not accessible after range installation.
shaded area in drawing for location of electrical outlet
box. Recommended

outlet locations allow range to be

installed directly against rear wall.

NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.

INSTA L L ATION I N FORM AT I ON: Before installing,
consult installation instructions for current dimensional
data and additional requirements

KW RATING

240V 12.5

208V 10.4

BREAKER SIZE

240V 40 Amps
208V 40 Amps

†

NOTE: Check local codes

for required breaker size.

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

†

†

See

ADA

COMPLIANT

All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.

Specification Created 4/20

PHS930BP/YP

GE Profile™ 30" Smart Slide-In Front-Control Induction
and Convection Range

FEATURES AND BENEFITS

Guided Cooking – This range is equipped with guided cooking from Hestan Cue to help streamline your
cooking with a system that combines video-guided recipes from chefs with automatic time, temperature and
cooking pace adjustments.

Sous Vide Capability – A sous vide-enabled cooktop lets you achieve perfection on the stove with a precision
cooking probe.

Hot Air Frying – Integrated hot air frying technology gives you crispy results in your oven without using oil.

Built-in WiFi – This smart oven features built-in WiFi so you can control oven functions with the SmartHQ
app on your smart device.

Fingerprint Resistant Stainless – A stainless finish that makes it easy to keep your appliances free of smudges
and prints.

Fit Guarantee – This induction range will fit your existing 30" cut-out, or GE Appliances will help pay for
modifications up to $300.

Induction Cooktop – An induction cooktop makes stovetop cooking fast and efficient, with more precise
temperature control and easy cleanup.

Touch Controls – Glide touch controls let you control the cooktop with the swipe of a finger and are easy to
clean thanks to seamless integration.

Induction Element – An 11-inch induction element that is powerful enough to boil water in 101 seconds, but
precise enough for delicate dishes.

Synchronized Elements – Control two cooktop elements with a single button to create a bigger cooking
surface for griddles.

Synchronized Clocks and Lights – Synchronize your oven and GE Appliances over-the-range microwave so that
clocks are always matching and lights automatically come on when a burner is activated with Chef Connect.

Model PHS930YPFS – Stainless Steel

Model PHS930BPTS – Black Stainless

Visit geappliances.com for more info

Specification Created 4/20
