GE PHS930BP, PHS930YP Specification
PHS930BP/YP
29-7/8"
36"
+1/2"
-1/4"
27-1/3"
Wall-Mounted
30" min
See note A
Side Wall
Note A: 30" Minimum to bare cabinet, see
installation instructions heights less than 30"
30"
0" permitted
recommend
6" space to
each side wall
0"
minimum
to cabinets
below
cooktop
36"
24"
Recommended
7-1/2"
6-1/2"
2-1/2"
30"
single ovens
double ovens
3"
4"
single ovens
double ovens
2-1/2"
29-7/8"
48-1/4"
*25-7/8"
*Depth including door handle is approximately 28-1/4".
37-1/4"
36"
+1/2"
-1/4"
27-1/3"

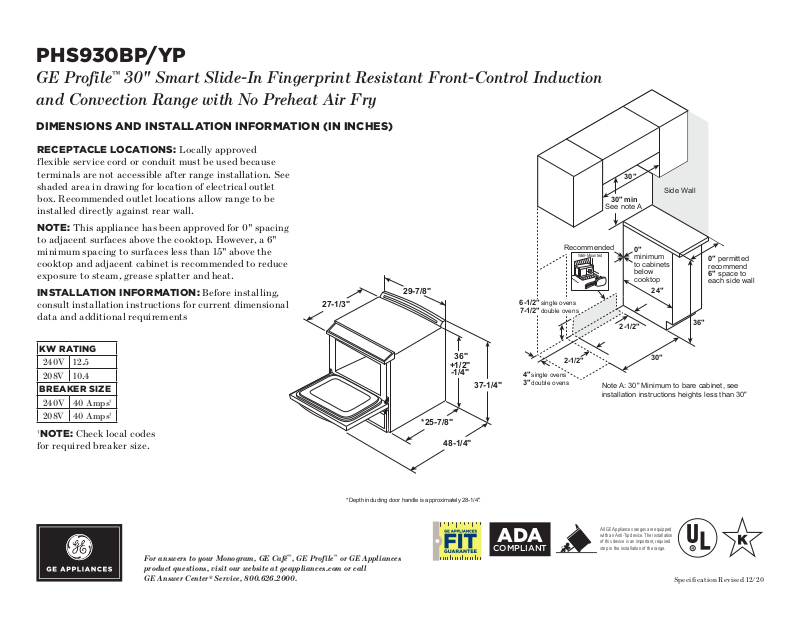

GE Profile™ 30" Smart Slide-In Fingerprint Resistant Front-Control Induction
and Convection Range with No Preheat Air Fry
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS: Locally approved
flexible service cord or conduit must be used because
terminals are not accessible after range installation.
shaded area in drawing for location of electrical outlet
box. Recommended
outlet locations allow range to be
installed directly against rear wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTA L L ATION I N FORM AT I ON: Before installing,
consult installation instructions for current dimensional
data and additional requirements
KW RATING
240V 12.5
208V 10.4
BREAKER SIZE
240V 40 Amps
208V 40 Amps
†
NOTE: Check local codes
for required breaker size.
†
†
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
See
ADA
COMPLIANT
All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.
Specification Revised 12/20
PHS930BP/YP
GE Profile™ 30" Smart Slide-In Fingerprint Resistant Front-Control Induction
and Convection Range with No Preheat Air Fry
WIFI ENABLED FEATURES
Guided Cooking – This range is equipped
with guided cooking from Hestan Cue to help
streamline your cooking with a system that
combines video-guided recipes from chefs with
automatic time, temperature and cooking pace
adjustments.
Sous Vide Capability – A sous vide-enabled
cooktop lets you achieve perfection on the stove
with a precision cooking probe.
No Preheat Air Fry – With this air fryer right
in the oven, you can cook healthier, crispier
versions of your favorite foods. There's no
preheat required and it shortens the cook time
because every minute counts
Built-in WiFi – This smart oven features builtin WiFi so you can control oven functions with
the SmartHQ app on your smart device.
FEATURES AND BENEFITS
Fingerprint Resistant Stainless – A stainless finish that makes it
easy to keep your appliances free of smudges and prints.
Fit Guarantee – This induction range will fit your existing
30" cut-out, or GE Appliances will help pay for modifications
up to $300.
Induction Cooktop – An induction cooktop makes stovetop
cooking fast and efficient, with more precise temperature control
and easy cleanup.
Touch Controls – Glide touch controls let you control the
cooktop with the swipe of a finger and are easy to clean thanks
to seamless integration.
Induction Element – An 11-inch induction element that is
powerful enough to boil water in 101 seconds, but precise enough
for delicate dishes.
Synchronized Elements – Control two cooktop elements with a
single button to create a bigger cooking surface for griddles.
Synchronized Clocks and Lights – Synchronize your oven and
GE Appliances over-the-range microwave so that clocks are
always matching and lights and ventilation automatically come
on when a burner is activated with Chef Connect.
Visit geappliances.com for more info
Model PHS930YPFS – Fingerprint Resistant Stainless Steel
Model PHS930BPTS – Black Stainless
Specification Revised 12/20
