slide-in gas ranges
New product introductions June 2007 GE Profile
slide-in gas ranges
What’s new: GE Profile™ slide-in gas range
The maximum in cooking performance and versatility.
The dramatic new appearance features a deep-recessed cooktop
and redesigned continuous grates.
new!
Easy cleanability
New deep-recessed cooktop contains spills and splatters for easy cleaning and maintenance.
ge.com
Superior performance
The new dual-flame stacked
PowerBoil
of fire provides 18,000 BTUs for high heat cooking and using the lower ring only the burner turns down to 140° for delicate sauces.
burner with two rings
Remarkable versatility
With a variety of burner sizes and extra-large oven capacity, all sizes
of cookware can be accommodated.
Feature gallery: GE Profile™ 30" slide-in gas ranges
5
1
3
7
2
4
GE Profile model PGS975
6
Not all features available on all models.
ge.com
1
Deep-recessed cooktop
Contains spills and splatters for easy cleaning and maintenance.
6
6
Extra-large oven capacity
Gives consumers the room they need to cook large meals.
new!
2
new!
3
Dual-flame stacked burner/ Precise Simmer burner
Both burners feature gentle 140° simmering. Dual-stacked burner adds 18,000 BTU boiling capability.
Range lock out
Prevents gas flow to cooktop and locks out oven controls, helping protect from unintended activation.
Self-clean oven
Conveniently cleans the oven without the need for scrubbing.
Heavy-duty, self-clean oven racks
Double-coated porcelain racks provide extra support and no longer require hand cleaning.
new!
4
Glass touch controls
Feature a smooth glass design that is easy to operate and easy to clean.
7
Gloss handle and vent trim
Adds a touch of subtle elegance that blends naturally with any appliance color.
new!
Heavy-duty knobs*
Add durability and brushed chrome for enhanced style and performance.
Gas-on-glass cooktop**
Features a seamless ceramic glass surface that is easy to clean.
new!
5
Dishwasher-safe continuous grates
Allows for easy movement of pots and pans between burners and features durable construction for effortless cleaning.
*Stainless steel model only
**Applies only to PGS968 model.
The inside story: GE Profile™ 30" slide-in gas ranges
2
1
3
4
GE Profile model PGS975
Not all features available on all models.
ge.com
1

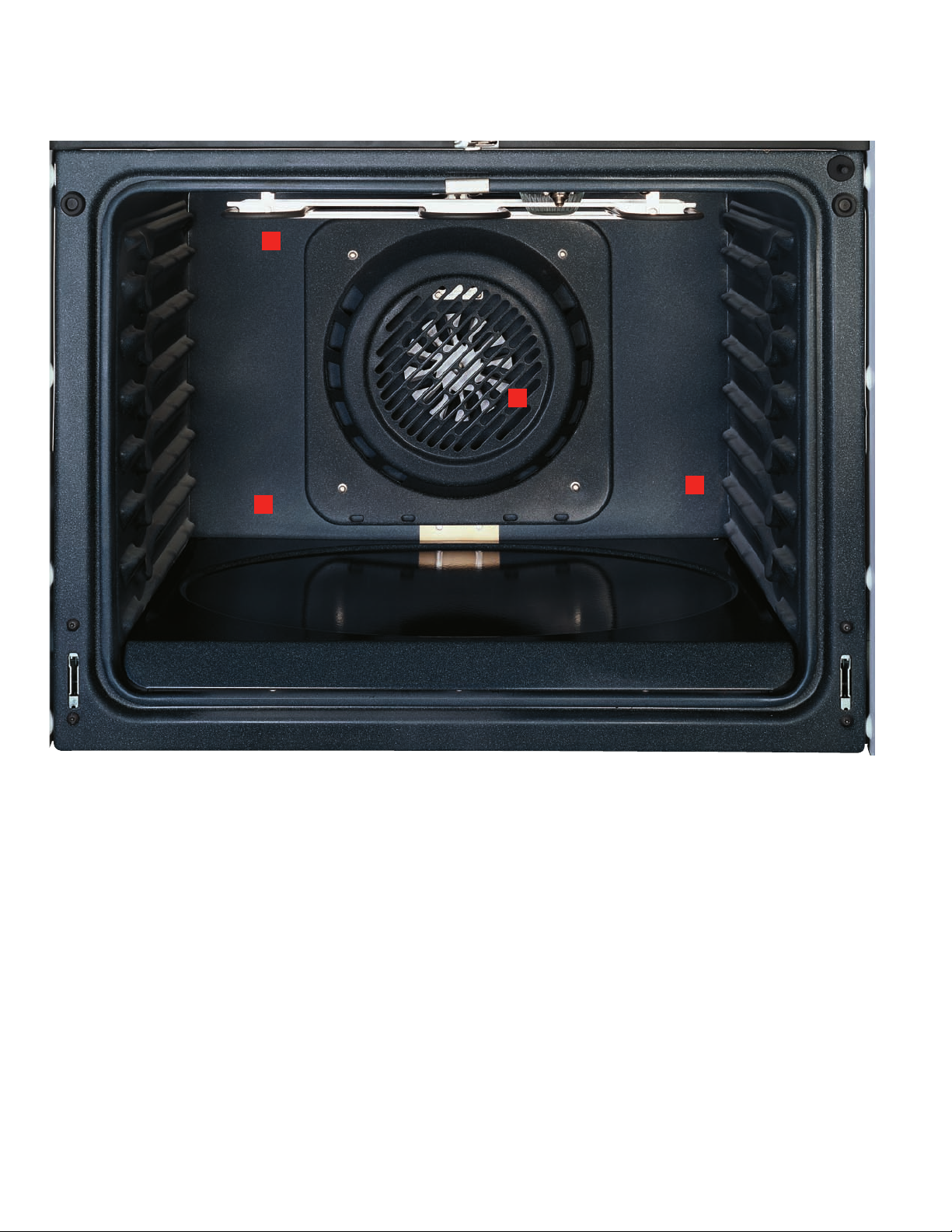

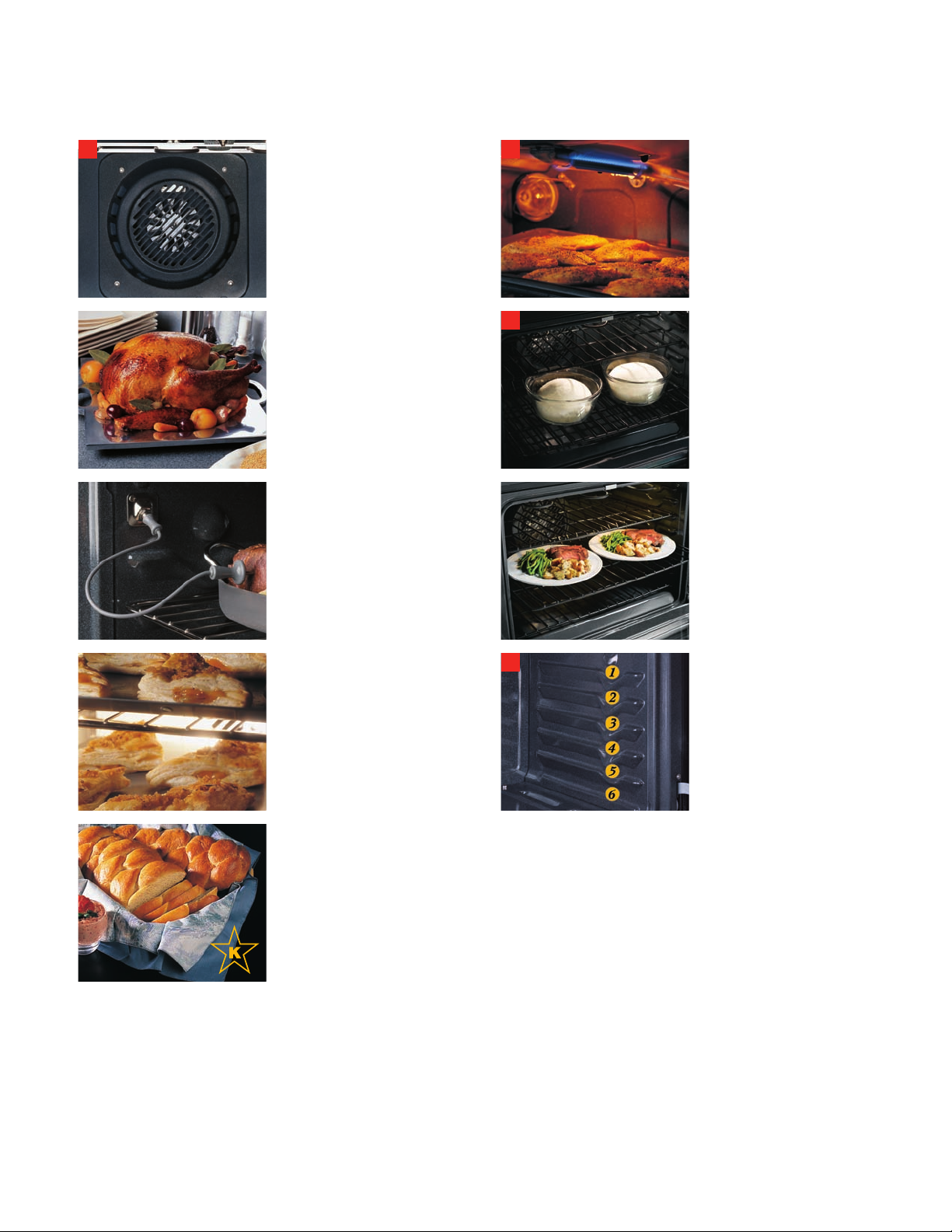

Two-speed gas convection oven
Circulates air throughout the oven, ensuring even baking and roasting results.
Auto Recipe™ conversion
Automatically converts standard recipe temperatures to proper convection settings.
Oven meat probe
Displays the internal temperature and signals when meats are cooked to perfection.
2
3
In-oven broiling
Features a low and high setting for broiling foods inside the oven.
Proof mode
Creates the ideal temperature conditions for yeast activation.
Warm mode
Keeps cooked foods warm before serving.
TrueTe mp™ system
Provides even heat distribution and maximum oven control.
Certified Sabbath mode
Allows consumers to keep cooked foods warm on the Jewish Sabbath and Jewish holidays.
4
Six embossed rack positions
Allows consumers to take full advantage of the oven capacity and adjust racks for oversized cookware.
GE Profile™ 30" slide-in gas ranges
Available new models
PGS908
• New GE Profile appearance
• Deep-recessed cooktop
PowerBoil
Precise Simmer burner
Extra-large, self-clean oven
Dishwasher-safe continuous grates
Heavy-duty knobs on stainless steel model
Heavy-duty oven racks
15,000 BTU burner
PGS975
• New GE Profile appearance
• Deep-recessed cooktop
• Two-speed gas convection oven
• Convection bake/roast
Extra-large, self-clean oven
Self-clean, heavy-duty oven racks
Glass touch controls
• Dual-flame stacked 18,000 BTU burner
Precise Simmer burner
Heavy duty knobs on stainless steel model
Dishwasher-safe continuous grates
• Range lock out
Not all features available on all models.
ge.com
P2S975
• New GE Profile appearance
• Deep-recessed cooktop
• Electric convection bake (single- and multi-rack)
• Electric convection oven
Self-clean, heavy-duty oven racks
Glass touch controls
Dual-flame stacked 18,000 BTU burner
Precise Simmer burner
Extra-large, self-clean oven
Dishwasher-safe continuous grates
Heavy-duty knobs on stainless steel model
• Range lock out
PGS968
• Gas-on-glass cooktop
Two-speed gas convection oven
Convection bake/roast
Extra-large, self-clean oven
Self-clean, heavy-duty oven racks
Glass touch controls
PowerBoil 15,000 BTU burner
Precise Simmer burner
Dishwasher-safe continuous grates
Heavy-duty knobs on stainless steel model
Slide-in gas range quick pitch
The maximum in cooking performance and versatility.
Distinguished Appearance
A new deep-recessed cooktop, plus heavy-duty knobs, stainless steel handles and vent trim provide an
enhanced design. Coupled with the built-in appearance, this new range transforms any kitchen.
Easy Cleanability
Sealed burners, self-clean oven, dishwasher-safe grates, and glass touch controls make cleaning
incredibly quick and easy.
Superior Performance
Two-speed gas convection and PowerBoil™ 18,000 BTU dual-flame burner and Precise Simmer burners offer
high-performance features to help cooks do more at once.
Remarkable Versatility
With a variety of burner sizes and extra-large oven capacity, every size of cookware can be accommodated.
30" slide-in gas ranges
ge.com
GE Profile Dual-fuel Gas
P2S975SEM
P2S975WEM
P2S975BEM
ADA-compliant
Features
Self-clean oven with Delay Clean option Light self-clean option Variable cleaning time Automatic self-clean oven door lock
Oven racks Hidden bake oven interior Tru eTemp™ s yste m
Cooktop Overhanging cooktop Deep-recessed cooktop Cooktop burners Sealed Sealed Sealed Sealed
PowerBoil™ burner Dual-flame stacked burner (1) 18,000 BTU/
Precise Simmer burner
High Output burner
All-purpose burners
Cooktop grates Continuous grates Ignition system Electronic Electronic Electronic Electronic PreciseAir™ convection sys tem
Convection bake Single-/multi-rack Convection roast Auto Recipe™ conversion
Electronic controls Glass touch Glass touch Glass touch
Warm/Pro of mode Oven Meat probe Closed door broiling Tem pera ture d isp lay Delay Bake option C° or F° programmable Audible preheat signal Auto oven shut-off w/override Control lock capability Range Lockout
Electronic clock/kitchen timer Certified Sabbath mode Interior oven light
Storage drawer Convection cookbook
Appearance
Color appearance* SS/WW/BB SS/WW/BB SS/WW/BB SS/WW/CC/BB
Frameless oven door Oven door with window Big ClearView™ Big ClearView Big ClearView Big ClearView Sculptured oven door handle Heav y-duty knob s SS mode l only SS model only SS model only SS model only Dishwasher-safe knobs
Storage drawer handle
Weights & Dimensions
Overall oven interior dimen sions (WxHxD i n inches) 24 x 16-1/4 x 18-1/4 24 x 16-1/4 x 18-1/4 24 x 16-1/4 x 18-1/4 24 x 16-1/4 x 18-1/4 Approx . shipping w t. (lbs.) 239 236 236 236
Power/Ratings
Top b urn ers (000’s BTUs) Nat/LP Range electrica l rating 240v/208 v, 60Hz /40A 120v, 60Hz, 5 A 120v, 60Hz, 5A 120v, 60Hz, 5A Convection wattage 2,500 Broiler/Bake wattage/BTU 3,600/2,700 watts 12,000/15,000 BTU 12,000/15,000 BTU 12,000/15,000 BTU LP conversion kit (included)
*SS = Stain less steel wi th black accent s, WW = White wit h white glass d oor, CC = Bisque with b isque glass d oor, BB = Black wit h black glass d oor. Factor y set for Natur al Gas. A set of LP or ifices is incl uded with eac h range for LP conve rsion.
●●●
●●●
●●●
●●●
●●●
3 heav y-duty
self-clean
●●●
Stainless steel
White Black
●●●
●●●
140° simme r
(1) 5,000 BTU/
140° simme r
(1) 11,000 BTU/
150° simmer; (1) 9,100 BT U/ 150° simmer
Matte b lack hvy-c ast
Grey hvy-cast
Matte b lack hvy-ca st
●●●
●●●
●●●
/●●/●●/●
●●●
●●●
●●●
●●●
●●●
●●●
●●●
●●●
●●
●●●
●●●
●●●
Stainless steel
White Black
Stainless steel
White glass Black glass
●●●
●●●
Sculptured stainless
Sculptured white Sculptured black
(1) 18.0/15.0
(1) 11.0/5. 2
(1) 6.0/6.0 (1) 9.1/8.0
●●●
PGS975SEM
PGS975WEM
PGS975BEM
3 heav y-duty
self-clean
Stainless steel
White Black
(1) 18,000 BTU/
140° simme r
(1) 6,000 BTU/
140° simme r
(1) 11,000 BTU/
150° simmer; (1) 9,100 BT U/ 150° simmer
Matte black hvy-cast
Grey hvy-cast
Matte b lack hvy-ca st
●●
Stainless steel
White Black
Stainless steel
White glass Black glass
Sculptured stainless
Sculptured white Sculptured black
(1) 18.0/15.0
(1) 11.0/5. 2
(1) 6.0/6 .0 (1) 9.1/8.0
PGS968SEM PGS968TEM PGS968BEM
3 heav y-duty
self-clean 3 heavy-duty
Black glass
Tru e whit e gla ss
Black glass
(1) 15,000 BTU/
180° simmer
(1) 6,000 BTU/
140° simme r
(1) 11,000 BTU/
150° simmer; (1) 9,100 BT U/
150° simmer
Matte b lack hvy-c ast
Grey hvy-cast Black hvy-cast
Stainle ss steel
White Black
Stainle ss steel
White glass Black glass
Sculptured stainless
Sculptured white Sculptured black
(1) 15.0/1 3.0
(1) 11.0/5.2
(1) 6.0/6.0 (1) 9.1/8.0
PGS908SEM
PGS908WEM
PGS908CEM PGS908BEM
Stainle ss steel
White
Bisque
Black
(1) 15,000 BTU/
180° simmer
(1) 5,000 BTU/
140° simme r
(1) 11,000 BTU/
150° simmer; (1) 9,100 BT U/
150° simmer
Matte bla ck hvy-cast
Grey hvy-cast
Taup e hvy-cas t
Matte b lack hvy-ca st
Stainle ss steel
White
Bisque
Black
Stainle ss steel
White glass
Bisque glass
Black glass
Sculptured stainless
Sculptured white
Sculptured bisque
Sculptured black
(1) 15.0/1 3.0
(1) 11.0/5.2
(1) 6.0/6.0 (1) 9.1/8.0
30" slide-in gas ranges dimensions (in inches) Models P2S975, PGS975, PGS968 and PGS908
Accessory Backguard
A*
2"
(Grates)
36
*JXS37 is 5-1/4" and JXS32 is 4"
**Total depth from wall to
front of closed oven door including handle is 30-1/2.
18" Min.
Acceptable Gas Line &
Electrical
Outlet Area
2-7/8"
To Front Surface Of Countertop
35-7/8"–38" from floor to countertop
24
20-5/8" Door Clearance From Front Surface of Countertop
30
31-1/4
27-1/2**
(excluding handle)
44-3/4
Shave Raised Edge To Clear
30" Min. to unprotected cabinet from
countertop
12
31-1/8 Wide Control Panel
9/16
13" Max.
25
7
30" Min.
B
23-3/16
Max. depth of
cord, plug, receptacle box & gas hookup
3-1/2" to prevent
interference
with drawer
3
15
29-15/16" Min. 30-1/16" Max.
B is 9-1/2" from walls on either side for P2S975, PGS975 and PGS908 and 6” for PGS968
Optional kits for slide-in gas ranges
(Available at additional cost)
Accessory backguards
(Attaches to the back of range as a backguard when unit is installed in 30" free-standing cutout)
Body sides
(Slide-in ranges are sold without sides installed.* Can be installed on either left or right when unit has one exposed side [no cabinet adjacent]. Kit contains 1 body side JXS77WW—White JXS77CC—Bisque JXS77BB —Black *Except for Model JGSS05.
Optional lower trim kits
(If counter height is greater than 36.5", a lower trim kit is recommended to extend the useful height to 38" maximum) JXS56WW—White JXS56CC—Bisque JXS56BB—Black
Model A 5-1/4" B 4"
P2S975SEM JXS37BB JXS32SS P2S975WEM JX S37WW JXS32WW P2S975BEM JXS37BB JX S32BB PGS968SEM JXS37BB JXS32SS PGS968TEM JXS37WW JXS32WW PGS968KEM JXS37CC JXS32CC PGS968BEM JXS37BB JXS32BB PGS908SEM JXS37BB JXS32SS PGS908WEM JXS37WW JXS32WW PGS908CEM JXS37CC JXS32CC PGS908BEM JXS37BB JXS32BB
