GE PGS968SEP Specification
PGS968SEP
23-3/16
30
If you are NOT using the
Filler strip or Backguard:
23-3/16
30
30
If you are NOT using the
Filler strip or Backguard:
If you are using the
Filler strip or Backguard:
25
Accessory

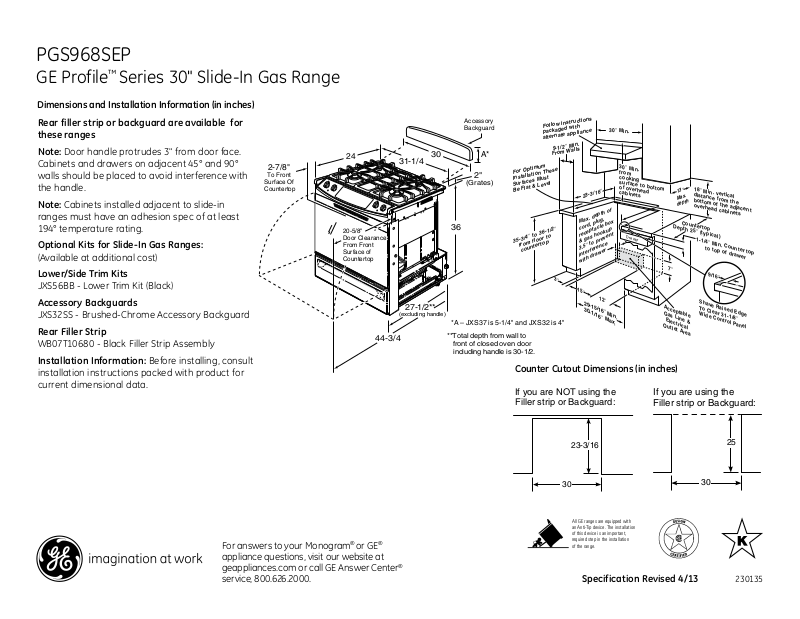

GE Profile™ Series 30" Slide-In Gas Range
Dimensions and Installation Information (in inches)
Rear filler strip or backguard are available for
these ranges
Note: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference with
the handle.
Note: Cabinets installed adjacent to slide-in
ranges must have an adhesion spec of at least
194° temperature rating.
Optional Kits for Slide-In Gas Ranges:
(Available at additional cost)
Lower/Side Trim Kits
JXS56BB - Lower Trim Kit (Black)
Accessory Backguards
JXS32SS - Brushed-Chrome Accessory Backguard
Rear Filler Strip
WB07T10680 - Black Filler Strip Assembly
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
2-7/8"
To Front
Surface Of
Countertop
24
20-5/8"
Door Clearance
From Front
Surface of
Countertop
44-3/4
31-1/4
(excluding handle)
30
27-1/2**
Backguard
Fol lo w i nst ructi ons
pac kag ed wi th
alt ern ate a ppl
A*
2"
(Grates)
36
*A – JXS37 is 5-1/4" and JXS32 is 4"
**Total depth from wall to
front of closed oven door
including handle is 30-1/2.
For Op timum
Ins tal latio n T hese
Sur fac es Mu st
Be Fla t & L eve l
to 36 -1/2
ʺ
35- 3/4
fro m f loor to
cou nte rtop
Counter Cutout Dimensions (in inches)
M
ʺ
-1/ 2
9
Fro m W all s
ʺ
3
ʺ
ian ce
in.
23- 3/1 6
Max . d epth of
cor d, plug
rec ept ac
& g as hooku
to pr event
ʺ
3.5
int erf eren
wit h d rawer
15
ʺ
29-15/16
30-1/16
ʺ
,
le bo x
ce
12
ʺ
ʺ
ʺ
Max.
30ʺ Min.
p
Min.
30
ʺ
M
in.
fro m
coo kin g
sur fac e to bot to
of ove rhead
cab ine ts
Draw er
m
Dep th
7
ʺ
Acc ept able
Gas Li ne
Ele ct ric al
Out let Area
18
ʺ
ʺ
Mi n. verti cal
13
dis tan ce fr om th e
Max .
bot tom of t he ad jac ent
dep th
ove rhe ad ca bin et s
Cou nte rto
p
25
ʺ
(ty p
ica l)
1-1 /4
ʺ
to top of d raw er
9/1 6
Sha ve Raise d E dge
To C lea r 3 1-1/8
Wid
e C ont rol P ane l
&
Min . C ounte r t op
ʺ
ʺ
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 4/13
230135
PGS968SEP
GE Profile™ Series 30" Slide-In Gas Range
Features and Benefits
• Gas On Glass Cooktop - Ceramic glass surface looks sleek and is incredibly easy to
wipe clean
• Two-speed Convection Oven - Circulated convection heat can be delivered at a
high speed for heavy foods or a low speed for more delicate foods to enhance the
baking or roasting results
• Convection Bake - This setting is optimal for baking casseroles or lasagnas, yeast
breads, pies and pizzas with no need to turn the pan
• Convection Roast - Optimal for larger cuts of meat, this setting rotates the heat
around all sides, sealing in the juices, producing rotisserie results at up to 25%
faster than a conventional oven
• 4.1 cu. ft. Oven Capacity - Enough room to cook an entire meal at once
• Self-clean Oven - Self-clean allows you to spare yourself from the trouble and effort
it takes to scrub the oven interior. The oven does all the work!
• Self-clean Heavy-duty Oven Racks - Tough, double-coated racks can stay in the
oven during the self-clean cycle to eliminate hand cleaning
I
H
8
1
2
I
H
1
8
8
6
4
6
2
9
3
4
8
4
7
2
5
6
2
O
L
L
O
3
8
6
9
6
4
8
4
2
2
L
O
7
4
6
5
• Glass Touch Controls - Smooth controls are easy to use and add a sophisticated
style to the kitchen
• Power Boil Burner - Delivers 15,000 BTUs of forceful heat for rapid boiling
• Precise Simmer Burner - Simmer burners allows for low, even heat distribution that
is ideal delicate foods and sauces
• Model PGS968SEPSS - Stainless steel
