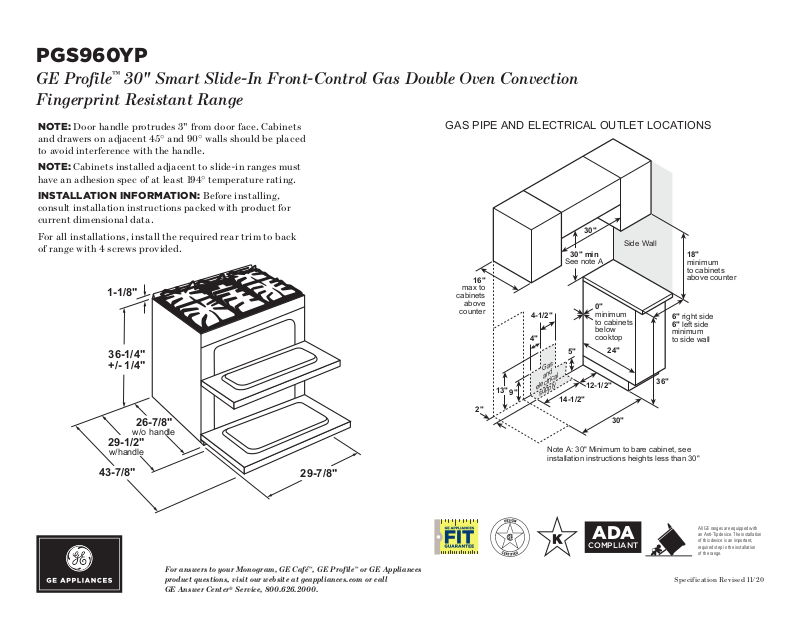

GE PGS960YP Specification

PGS960YP

36-1/4"
+/- 1/4"

1-1/8"

ADA

GE Profile™ 30" Smart Slide-In Front-Control Gas Double Oven Convection
Fingerprint Resistant Range

NOTE: Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be placed
to avoid interference with the handle.

NOTE: Cabinets installed adjacent to slide-in ranges must
have an adhesion spec of at least 194° temperature rating.

INSTA LLATION INFORM ATION: Before installing,
consult installation instructions packed with product for
current dimensional data.

For all installations, install the required rear trim to back
of range with 4 screws provided.

1-1/8"

36-1/4"
+/- 1/4"

26-7/8"

w/o handle

29-1/2"

w/handle

43-7/8"

29-7/8"

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS

30"

Side Wall

16"

max to

cabinets

above

counter

2"

13"

30" min

See note A

0"

5"

minimum
to cabinets
below
cooktop

12-1/2"

24"

36"

30"

4-1/2"

4"

Gas
and

electrical

9"

supply

14-1/2"

Note A: 30" Minimum to bare cabinet, see
installation instructions heights less than 30"

18"

minimum
to cabinets
above counter

6" right side
6" left side

minimum
to side wall

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.

COMPLIANT

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Specification Revised 11/20

PGS960YP

GE Profile™ 30" Smart Slide-In Front-Control Gas Double Oven Convection
Fingerprint Resistant Range

FEATURES AND BENEFITS

Fit Guarantee – This gas range will fit your existing 30" cut-out,
or GE Appliances will help pay for modifications up to $300

Edge-to-Edge Cooktop – Continuous, edge-to-edge cooktop give
you a large cooking space and can handle any cookware

Tri-Ring Burner – A versatile burner offers three different-sized
flame rings on a single burner element, so it's like having three
burners in one

Reversible Grill and Griddle – This extra-large, reversible
griddle and grill combination lets you enjoy the best in cooking
versatility

Dual Purpose Center Burner – This flexible gas cooktop burner
lets you choose between round and oval burner shapes.

Backlit Glass Touch Controls – Backlit touch controls give this
oven a high-tech look with a display that disappears when not in
use and reappears when touched.

Power Boil Burner – This 18,000-BTU power boil element
produces intense heat to boil water fast

Synchronized Clocks and Lights – Synchronize your oven and
GE Appliances over-the-range microwave so that clocks are
always matching and lights and ventilation automatically come
on when a burner is activated with Chef Connect

True Convection – This oven features True Convection, an
advanced convection system that uses a third heating element
and fan for the highest level of heat and air circulation

Large Capacity Double Oven – Cook an entire meal at once with
a 6.7 cubic foot total capacity double oven which provides enough
room for multiple dishes

Never-Scrub Oven Racks – These durable oven racks can be left
in the oven during the self-clean cycle so you never have to scrub

Model PGS960YPFS – Fingerprint Resistant Stainless

WIFI ENABLED FEATURES

No Preheat Air Fry – With this air fryer right
in the oven, you can cook healthier, crispier
versions of your favorite foods. There's no
preheat required and it shortens the cook time
because every minute counts

Built-in WiFi – This smart oven features built-in
WiFi so you can control oven functions with the
SmartHQ app on your smart device

Precision Temperature Probe – An innovative
temperature probe that helps you achieve the
perfect level of doneness for oven favorites

Visit geappliances.com for more info

Specification Revised 11/20
