GE PGS930BPTS Specs

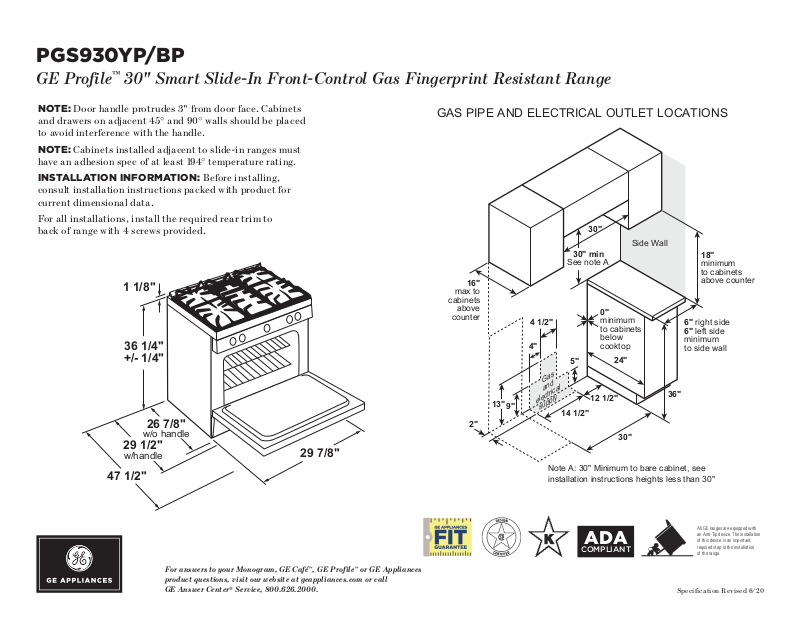

PGS930YP/BP
36 1/4"
1 1/8"
ADA
GE Profile™ 30" Smart Slide-In Front-Control Gas Fingerprint Resistant Range
NOTE: Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be placed
to avoid interference with the handle.
NOTE: Cabinets installed adjacent to slide-in ranges must
have an adhesion spec of at least 194° temperature rating.
INS TA LLATI O N INF O RMATIO N: Before installing,
consult installation instructions packed with product for
current dimensional data.
For all installations, install the required rear trim to
back of range with 4 screws provided.
1 1/8"
36 1/4"
+/- 1/4"
26 7/8"
w/o handle
29 1/2"
w/handle
47 1/2"
29 7/8"
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
30"
Side Wall
16"
max to
cabinets
above
counter
2"
13"
9"
30" min
See note A
0"
5"
minimum
to cabinets
below
cooktop
12 1/2"
24"
36"
30"
4 1/2"
4"
Gas
and
electrical
supply
14 1/2"
Note A: 30" Minimum to bare cabinet, see
installation instructions heights less than 30"
18"
minimum
to cabinets
above counter
6" right side
6" left side
minimum
to side wall
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
COMPLIANT
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 6/20
PGS930YP/BP
GE Profile™ 30" Smart Slide-In Front-Control Gas Fingerprint Resistant Range
FEATURES AND BENEFITS
Hot Air Frying – Integrated hot air frying technology gives you crispy results in your oven without using oil.
Built-in WiFi – This smart oven features built-in WiFi so you can control oven functions with the SmartHQ
app on your smart device.
Fingerprint Resistant Stainless – A stainless finish that makes it easy to keep your appliances free of
smudges and prints.
Fit Guarantee – This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for
modifications up to $300.
Edge-to-Edge Cooktop – Continuous, edge-to-edge cooktop give you a large cooking space and can handle
any cookware.
Tri-Ring Burner – A versatile burner offers three different-sized flame rings on a single burner element, so
it's like having three burners in one.
Reversible Grill and Griddle – This extra-large, reversible griddle and grill combination lets you enjoy the
best in cooking versatility.
Dual Purpose Center Burner – This flexible gas cooktop burner lets you choose between round and oval
burner shapes.
Backlit Glass Touch Controls – Backlit touch controls give this oven a high-tech look with a display that
disappears when not in use and reappears when touched.
Power Boil Burner – This 18,000-BTU power boil element produces intense heat to boil water fast.
Synchronized Clocks and Lights – Synchronize your oven and GE Appliances over-the-range microwave so
that clocks are always matching and lights automatically come on when a burner is activated with
Chef Connect.
True European Convection – This oven features True European Convection, an advanced convection system
that uses a third heating element and fan for the highest level of heat and air circulation.
Never-Scrub Oven Racks – These durable oven racks can be left in the oven during the self-clean cycle so you
never have to scrub.
Model PGS930YPFS – Fingerprint Resistant Stainless
Model PGS930BPTS – Black Stainless
Visit geappliances.com for more info
Specification Revised 6/20
