GE PGS908BEM, PGS908CEM, PGS908WEM Specification
PGS908BEM/CEM/WEM
23-3/16
30
If you are NOT using the
Filler strip or Backguard:
23-3/16
30
30
If you are NOT using the
Filler strip or Backguard:
If you are using the
Filler strip or Backguard:
25
30
A*
Accessory
Backguard
36
2"
(Grates)
Acceptable
Gas Line &
Electrical
Outlet Area
Max. depth of
cord, plug,
receptacle box
& gas hookup
3-1/2" to prevent
interference
with drawer
30" Min.
Shave Raised Edge To Clear
31-1/8 Wide Control Panel
30" Min. to
unprotected
cabinet from
countertop
23-3/16
18" Min.
13" Max.
3
29-15/16" Min.
30-1/16" Max.
25
9/16
7
12
15
*A – JXS37 is 5-1/4" and JXS32 is 4"
**Total depth from wall to
front of closed oven door
including handle is 30-1/2.
B is 9-1/2" from walls on either side for P2S975, PGS975
and PGS908 and 6” for PGS968
B
35-7/8"–38"
from floor to
countertop
2-7/8"
To Front
Surface Of
Countertop
20-5/8"
Door Clearance
From Front
Surface of
Countertop
31-1/4
30
A*
Accessory
Backguard
36
2"
(Grates)
24
*A – JXS37 is 5-1/4" and JXS32 is 4"
27-1/2**
44-3/4
(excluding han dle)
**Total depth from wall to
front of closed oven door
including handle is 30-1/2.

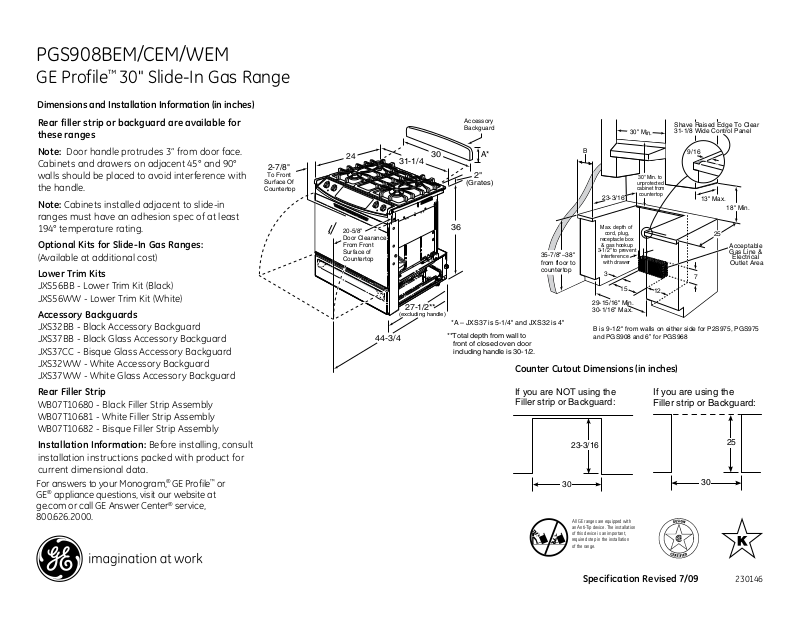

GE Profile™ 30" Slide-In Gas Range
Dimensions and Installation Information (in inches)
Rear filler strip or backguard are available for
these ranges
Note: Door handle protrudes 3” from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference with
the handle.
Note: Cabinets installed adjacent to slide-in
ranges must have an adhesion spec of at least
194° temperature rating.
Optional Kits for Slide-In Gas Ranges:
(Available at additional cost)
Lower Trim Kits
JXS56BB - Lower Trim Kit (Black)
JXS56WW - Lower Trim Kit (White)
Accessory Backguards
JXS32BB - Black Accessory Backguard
JXS37BB - Black Glass Accessory Backguard
JXS37CC - Bisque Glass Accessory Backguard
JXS32WW - White Accessory Backguard
JXS37WW - White Glass Accessory Backguard
Rear Filler Strip
WB07T10680 - Black Filler Strip Assembly
WB07T10681 - White Filler Strip Assembly
WB07T10682 - Bisque Filler Strip Assembly
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Counter Cutout Dimensions (in inches)
All GE ranges are equ ipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 7/09
230146
I
H
8
6
4
2
L
O
L
O
2
4
6
8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
I
H
8
6
4
2
L
O
2
4
6
8
PGS908BEM/CEM/WEM
GE Profile™ 30" Slide-In Gas Range
Features and Benefits
• Deep Recessed Cooktop - Designed with a recessed surface
to help contain spills and make cleaning easy
• Self Clean Oven - Conveniently cleans the oven cavity
without need of scrubbing
• PowerBoil™ Burner - Delivers 15,000 BTUs of forceful heat
for rapid boiling
• Precise Simmer Burner - Offers a low setting of 140°,
ensuring more temperature control for simmering
• Extra-Large Oven Capacity - Provides a large oven interior
ideal for cooking more items at once
• Continuous Grates - Provide a flat, sturdy surface allowing
easy movement of pans between burners
• Dishwasher Safe Grates - Durable grate construction can
be placed into the dishwasher for easy cleaning and maintenance
• Heavy-Duty Oven Racks - Accommodates large dishes with ease
• TrueTemp™ System - Delivers even heat distribution
and maximum oven control
• Model PGS908BEMBB - Black
• Model PGS908CEMCC - Bisque
• Model PGS908WEMWW - White
Specification Revised 7/09
