GE PGP9830SJ Specification
PGP9830SJ
29 3/4"
(29 13/16" SS)
28 3/4"
21 7/8"
(21 15/16" SS)
2 3/16"
(2 1/4" SS)
22"
20 1/2"
11 1/2"

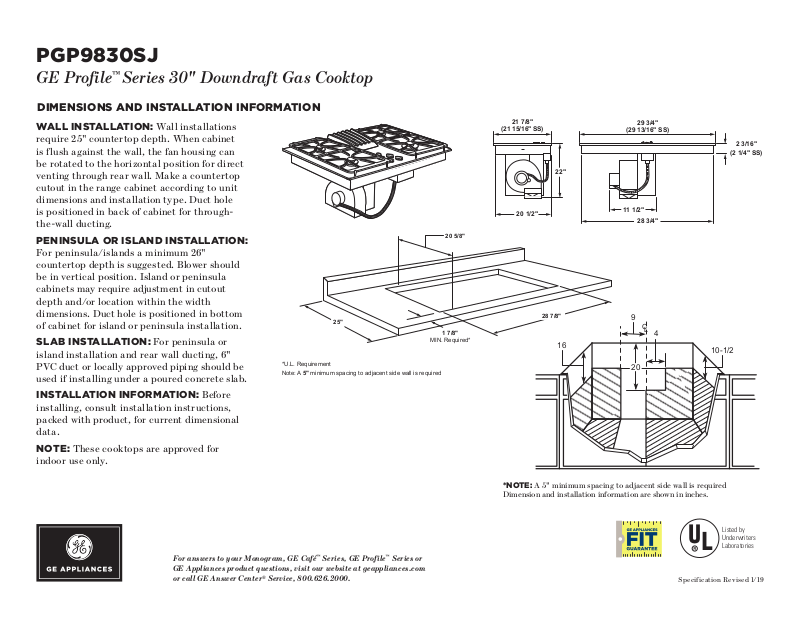

Cut-out Dimensions (in inches)
GE Profile™ Series 30" Downdraft Gas Cooktop
DIMENSIONS AND INSTALLATION INFORMATION
WALL I N STALLAT I O N: Wall installations
require 25" countertop depth. When cabinet
is flush against the wall, the fan housing can
be rotated to the horizontal position for direct
venting through rear wall. Make a countertop
cutout in the range cabinet according to unit
dimensions and installation type. Duct hole
is positioned in back of cabinet for throughthe-wall ducting.
PENINSULA OR ISLAND INSTALLATION:
For peninsula/islands a minimum 26"
countertop depth is suggested. Blower should
be in vertical position. Island or peninsula
cabinets may require adjustment in cutout
depth and/or location within the width
dimensions. Duct hole is positioned in bottom
of cabinet for island or peninsula installation.
SLAB INSTALLATION: For peninsula or
island installation and rear wall ducting, 6"
PVC duct or locally approved piping should be
used if installing under a poured concrete slab.
INSTA L L ATION I N FORM AT I ON: Before
installing, consult installation instructions,
packed with product, for current dimensional
data.
NOTE: These cooktops are approved for
indoor use only.
25"
*U.L. Requirement
Note: A 5" minimum spacing to adjacent side wall is required
20 5/8"
1 7/8"
MIN. Required*
21 7/8"
(21 15/16" SS)
20 1/2"
28 7/8"
22"
16
29 3/4"
(29 13/16" SS)
11 1/2"
28 3/4"
9
C
L
4
20
2 3/16"
(2 1/4" SS)
10-1/2
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
*NOTE: A 5" minimum spacing to adjacent side wall is required
Dimension and installation information are shown in inches.
Listed by
Underwriters
Laboratories
Specification Revised 1/19
PGP9830SJ
Venting Options
Through Cabinet Toe Space
Inside Wall to Roof Direct to Outside
Between Floor Joist
GE Profile™ Series 30" Downdraft Gas Cooktop
INSTALLING THE DUCTWORK: Use
galvanized or aluminum duct in 6" round
or 3-1/4" x 10" size, or combination of both.
PVC duct or locally approved piping should
be used if installing under a poured concrete
slab. Local building code must be followed in
specifying type and schedule of all duct used.
NOTE: Ductwork must be vented to outside.
Do not vent into a wall, ceiling, crawlspace,
attic or any concealed space. Always
use an appropriate roof or wall cap with
damper. Laundry-type wall caps should
never be used. For maximum efficiency
use the shortest and straightest duct run
possible,
satisfactory
not exceed 100 feet equivalent length. Refer
to the table of equivalent lengths (shown in
installation instructions) for various duct
configurations.
with as few fittings as possible. For
performance the duct run should
10-1/8
6-1/8
9-1/8
18-3/4
