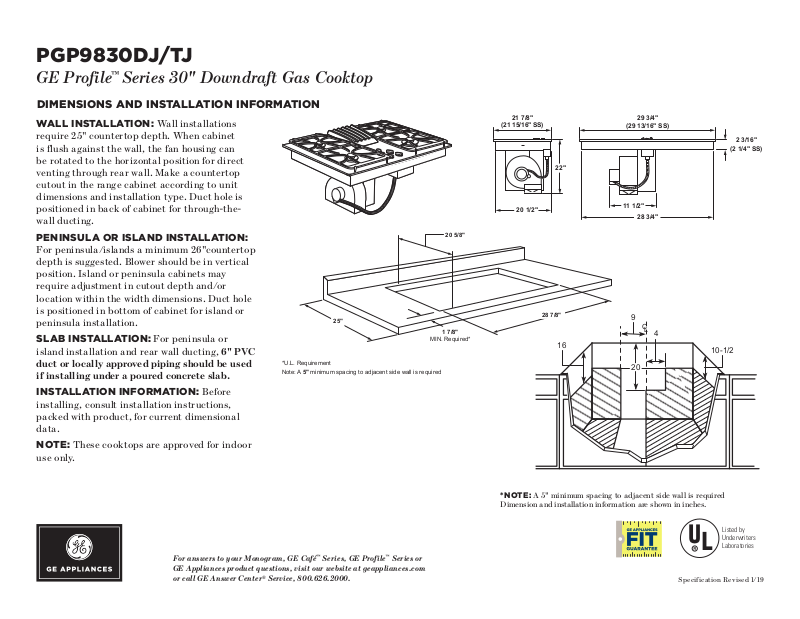

GE PGP9830DJ, PGP9830TJ Specification

PGP9830DJ/TJ
29 3/4"
(29 13/16" SS)
28 3/4"
21 7/8"
(21 15/16" SS)
2 3/16"
(2 1/4" SS)
22"
20 1/2"
11 1/2"
Cut-out Dimensions (in inches)
GE Profile™ Series 30" Downdraft Gas Cooktop
DIMENSIONS AND INSTALLATION INFORMATION
WALL I N STALLAT I O N: Wall installations require 25" countertop depth. When cabinet is flush against the wall, the fan housing can be rotated to the horizontal position for direct venting through rear wall. Make a countertop cutout in the range cabinet according to unit dimensions and installation type. Duct hole is positioned in back of cabinet for through-the­wall ducting.
PENINSULA OR ISLAND INSTALLATION:
For peninsula/islands a minimum 26"countertop depth is suggested. Blower should be in vertical position. Island or peninsula cabinets may require adjustment in cutout depth and/or location within the width dimensions. Duct hole is positioned in bottom of cabinet for island or peninsula installation.
SLAB INSTALLATION: For peninsula or island installation and rear wall ducting, 6" PVC
duct or locally approved piping should be used if installing under a poured concrete slab.
INSTA L L ATION I N FORM AT I ON: Before installing, consult installation instructions, packed with product, for current dimensional data.
NOTE: These cooktops are approved for indoor use only.
25"
*U.L. Requirement Note: A 5" minimum spacing to adjacent side wall is required
20 5/8"
1 7/8"
MIN. Required*
21 7/8"
(21 15/16" SS)
20 1/2"
28 7/8"
22"
16
29 3/4"
(29 13/16" SS)
11 1/2"
28 3/4"
9
C
L
4
20
2 3/16"
(2 1/4" SS)
10-1/2
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
*NOTE: A 5" minimum spacing to adjacent side wall is required Dimension and installation information are shown in inches.
Listed by Underwriters Laboratories
Specification Revised 1/19
PGP9830DJ/TJ
Venting Options
Through Cabinet Toe Space
Inside Wall to Roof Direct to Outside
Between Floor Joist
GE Profile™ Series 30" Downdraft Gas Cooktop
DIMENSIONS AND INSTALLATION INFORMATION
INSTALLING THE DUCTWORK: Use galvanized or aluminum duct in 6" round or 3-1/4" x 10" size, or combination of both. PVC duct or locally approved
piping should be used if installing under a poured concrete slab. Local building
code must be followed in specifying type and schedule of all duct used.
NOTE: Ductwork must be vented to outside. Do not vent into a wall, ceiling, crawlspace, attic or any concealed space. Always use an appropriate roof or wall cap with damper.
Laundry-type wall caps should never be used. For maximum efficiency use
the shortest and straightest duct run possible, with as few fittings as possible.
For satisfactory performance the duct run should not exceed 100 feet equivalent length. Refer to the table of equivalent lengths (shown in installation instructions) for various duct configurations.
10-1/8
6-1/8
9-1/8
18-3/4
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Rear Wall VentingDownward Venting
Dimension and installation information are shown in inches.
Listed by Underwriters Laboratories
Specification Revised 1/19
