GE PGP953DETBB Specification Sheet

PGP953DET

Cooktop

2-1/2

(Min.)

28-1/2

19-5/8

3-1/4

30

20-7/8

Electrical junction
box 16" MIN.
below countertop

30" MIN. to
unprotected
cabinet

Cut should
not interfere
with cabinet
structure at
front

3-3/4" MIN.

clearance to

side wall

from cut-out

6" MIN.

clearance to

side wall

from cut-out

18" MIN.
to cabinet

2-1/4" to
rear wall

13" MAX.
depth

Gas Connection

Dimension and installation information are shown in inches.

30" MIN.

Base Cabinet

Electrical
cord

45°

Electrical
outlet

Shut-off

valve

Pressure
regulator

1/2" pipe

Coupling

GE Profile™ Series 30" Built-In Gas Cooktop

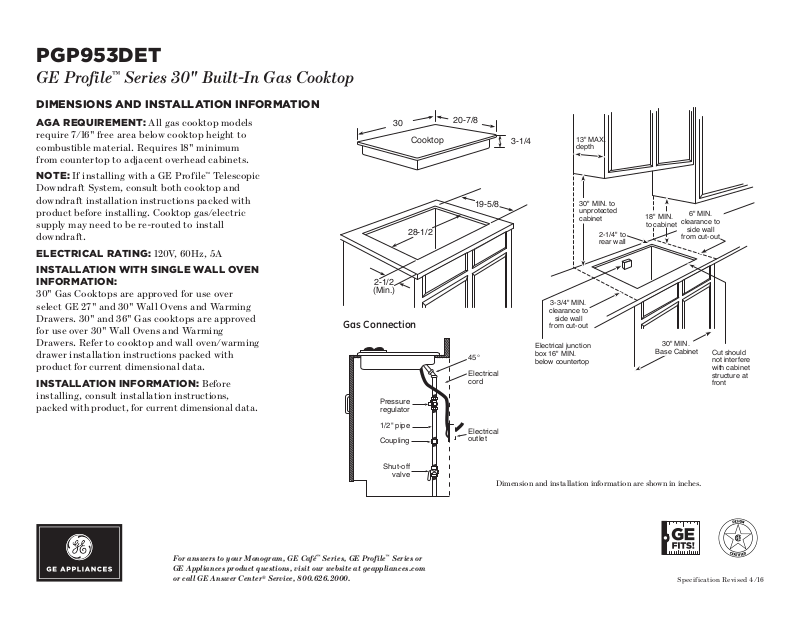

DIMENSIONS AND INSTALLATION INFORMATION

AGA REQUIREMENT: All gas cooktop models
require 7/16" free area below cooktop height to
combustible material. Requires 18" minimum
from countertop to adjacent overhead cabinets.

NOTE: If installing with a GE Profile™ Telescopic
Downdraft System, consult both cooktop and
downdraft installation instructions packed with
product before installing. Cooktop gas/electric
supply may need to be re-routed to install
downdraf t.

ELECTRICAL RATING: 120V, 60Hz, 5A

INSTALLATION WITH SINGLE WALL OVEN
INFORMATION:

30" Gas Cooktops are approved for use over
select GE 27" and 30" Wall Ovens and Warming
Drawers. 30" and 36" Gas cooktops are approved
for use over 30" Wall Ovens and Warming
Drawers. Refer to cooktop and wall oven/warming
drawer installation instructions packed with
product for current dimensional data.

INSTA L L ATION IN FO R MATION : Before
installing, consult installation
packed with product, for current dimensional data.

instructions,

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

Dimension and installation information are shown in inches.

Speci fication Revise d 4/16

PGP953DET

GE Profile™ Series 30" Built-In Gas Cooktop

FEATURES AND BENEFITS

Deep-recessed cooktop - Deep-recessed cooktop contains spills in one area
that’s easy to wipe clean

Sealed cooktop burners - Burner elements are sealed to the cooktop
to keep foods and liquid contained on the cooktop, making
cleaning painless

Power Boil 15,000 BTU burner - This powerful element turns up the heat
for boiling, sautéing and stir frying

Precise Simmer burner - Allows for low, even heat distribution that
is ideal delicate foods and sauces

Matte Black Heavy-Cast Grates - Premium cast-iron offers
superior performance

LED backlit knobs - Sleek LED backlit knobs indicate when burners are on

Dishwasher-Safe Grates and Knobs - Feature durable construction for
worry-free, effortless cleaning and maintenance

Model PGP953DETWW - White on white

Model PGP953DETBB - Black on black

GUARANTEED FIT
Replacing a similar cooktop from GE or another brand? GE cooktops
are guaranteed for an exact fit to make replacement easy

Visit geappliances.com for more info

Speci fication Revise d 4/16
